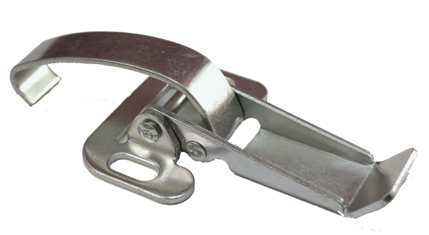

CA-4070 Over-Center Draw Latches with Solid Curved Hook
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-4070 is manufactured from clear zinc plated steel or passivated stainless steel. This model allows for tension adjustment based on latch/keeper hole distance. Pull test rated at 600 Lbs.
Item # |
Pull Test Rating |
Hole Diameter |
Material |
Finish |
Drawings |
|---|---|---|---|---|---|
| CA-4070-SS-CP-625 CA-4070-SS-CP-625/Asset/Over-Center-Draw-Latch-Solid-Curved-Hook-CA-4070-.jpg | Pull Test Rating N/A 600 lb | Hole Diameter N/A | Material N/A Stainless Steel | Finish N/A Clear Passivated |

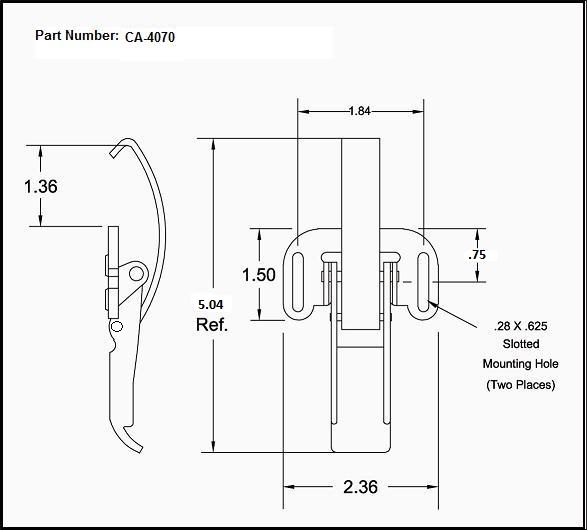

Drawings
 |
| CA-4070-ST-CZ-625 CA-4070-ST-CZ-625/Asset/Over-Center-Draw-Latch-Solid-Curved-Hook-CA-4070-.jpg | Pull Test Rating N/A 600 lb | Hole Diameter N/A 0.280 x 0.625 in | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
|
