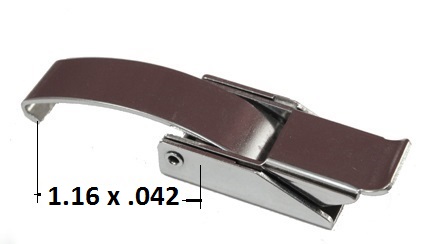

CA-4205 and CA-4205TD Over-Center Draw Latches with Curved Hook
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-4205 and CA-4205TD are manufactured from clear zinc plated or black powder coated steel, or passivated stainless steel. Tab up and tab down models available. Uses strike SK-4200.
Item # |
Material |
Finish |
Model Type |

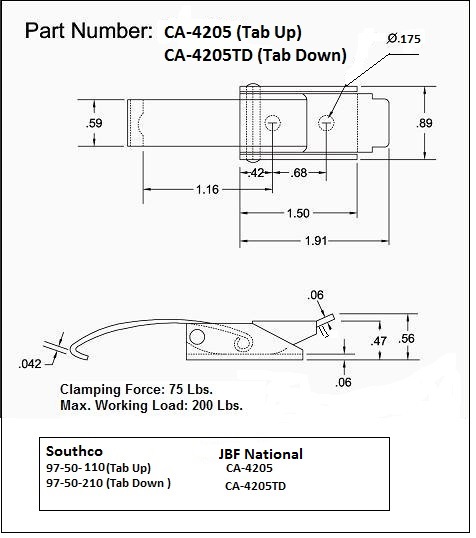

Drawings |
|---|---|---|---|---|
| CA-4205-ST-CZ-175 CA-4205-ST-CZ-175/Asset/Over-Center-Draw-Latches-Curved-Hook-CA-4205--CA-4205TD-.jpg | Material N/A Steel | Finish N/A Clear Zinc | Model Type N/A Tab Up |
Drawings
 |
| CA-4205-SS-CP-175 CA-4205-SS-CP-175/Asset/Over-Center-Draw-Latches-Curved-Hook-CA-4205--CA-4205TD-.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated | Model Type N/A Tab Up |
Drawings
|
| CA-4205TD-SS-CP-175 CA-4205TD-SS-CP-175/Asset/Over-Center-Draw-Latches-Curved-Hook-CA-4205--CA-4205TD-.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated | Model Type N/A Tab Down |
Drawings
|
| CA-4205-ST-BPO-175 CA-4205-ST-BPO-175/Asset/Over-Center-Draw-Latches-Curved-Hook-CA-4205--CA-4205TD-.jpg | Material N/A Steel | Finish N/A Black Powder | Model Type N/A |
Drawings
|
