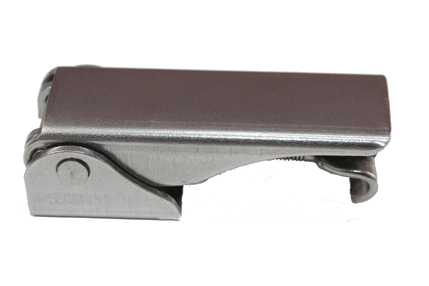

CA-5100 Under-Center Draw Latches
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-5100 is manufactured from clear zinc plated, 316 stainless, or passivated stainless steel. This model allows for tension change based on hook adjustment. It features a maximum working load of 350 Lbs. and an ultimate working load of 450 Lbs. Lever stop at 73 degrees.
Item # |
Maximum Working Load |
Ultimate Working Load |
Lever Stop Angle |
Material |

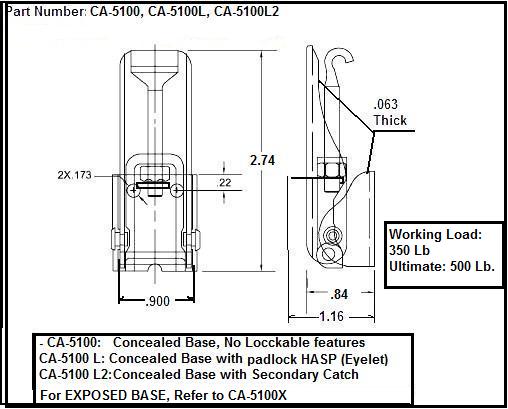

Drawings |
|---|---|---|---|---|---|
| CA-5100-ST-CZ-170 CA-5100-ST-CZ-170/Asset/Under-Center-Draw-Latch-CA-5100---1-.jpg | Maximum Working Load N/A 350 lb | Ultimate Working Load N/A 450 lb | Lever Stop Angle N/A 73 º | Material N/A Steel |
Drawings
 |
| CA-5100-SS-CP-170 CA-5100-SS-CP-170/Asset/Under-Center-Draw-Latch-CA-5100---1-.jpg | Maximum Working Load N/A 350 lb | Ultimate Working Load N/A 450 lb | Lever Stop Angle N/A 73 º | Material N/A Stainless Steel |
Drawings
|
| CA-5100L-SS-CP-173 (with Hasp) CA-5100L-SS-CP-173 (with Hasp)/Asset/Under-Center-Draw-Latch-CA-5100---1-.jpg | Maximum Working Load N/A 350 lb | Ultimate Working Load N/A 450 lb | Lever Stop Angle N/A 73 º | Material N/A Stainless Steel |
Drawings
|
| CA-5100L2-SS-CP-173 (with Secondary Catch) CA-5100L2-SS-CP-173 (with Secondary Catch)/Asset/Under-Center-Draw-Latch-CA-5100---1-.jpg | Maximum Working Load N/A 350 lb | Ultimate Working Load N/A 450 lb | Lever Stop Angle N/A 73 º | Material N/A Stainless Steel |
Drawings
|
| CA-5100-316SS-CP-170 CA-5100-316SS-CP-170/Asset/Under-Center-Draw-Latch-CA-5100---1-.jpg | Maximum Working Load N/A 350 lb | Ultimate Working Load N/A 450 lb | Lever Stop Angle N/A 73 º | Material N/A 316 Stainless Steel |
Drawings
|
