• CA-R5-0074 Joint Panel Latches

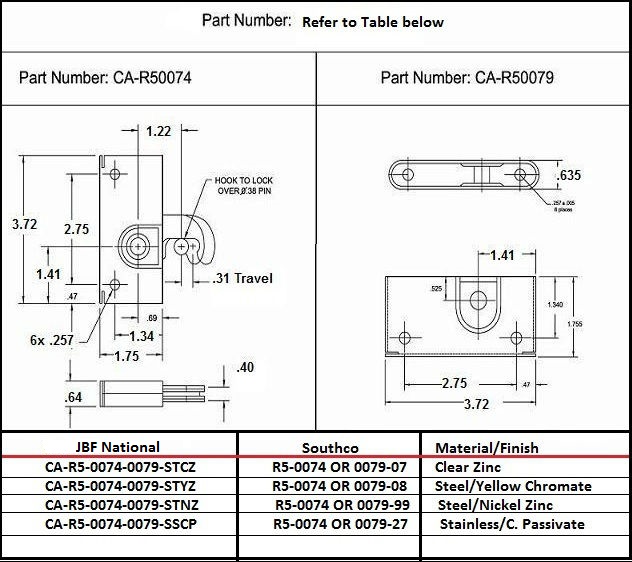

  • <!-CA-R5-0074 Joint Panel Latches Line Drawing->

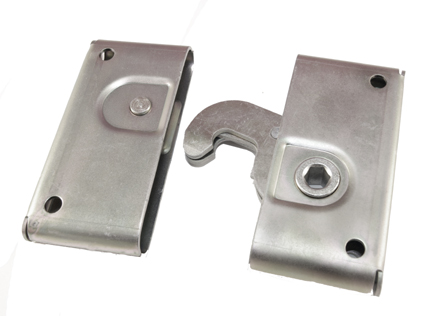

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-R5-0074 are manufactured from steel with a zinc plated, clear zinc plated or nickel plated finish, or from passivated stainless steel. This model features an ultimate tensile load of 2,500 Lbs. and a 500 hour salt spray rating for versions featuring a zinc or nickel finish. A brass cam comes standard.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Ultimate Tensile Load Rating

Salt Spray Rating

Finish

Drawings

N/A 2,500 lb N/A 500 Hour N/A Clear Zinc

N/A 2,500 lb N/A 500 Hour N/A Nickel Zinc

N/A 2,500 lb N/A 500 Hour N/A Yellow Chromate Zinc

N/A 2,500 lb N/A 500 Hour N/A Clear Passivated
