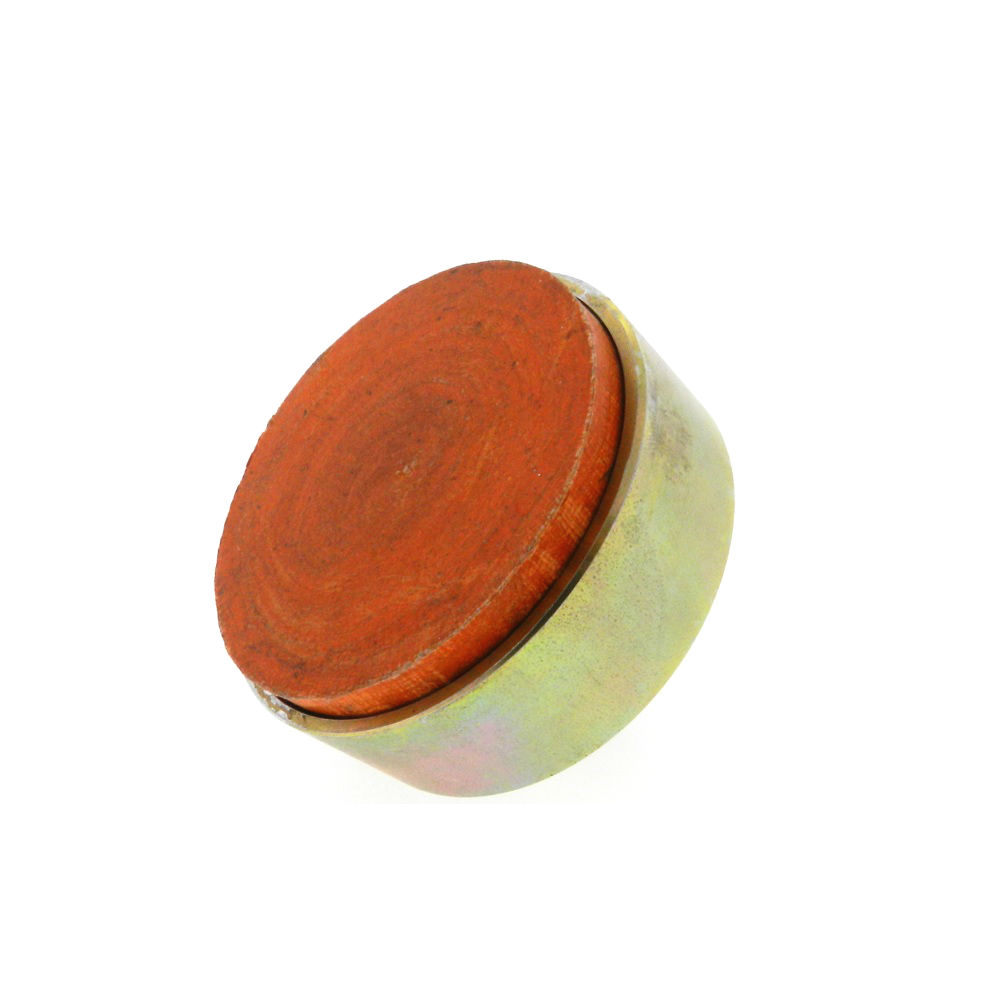

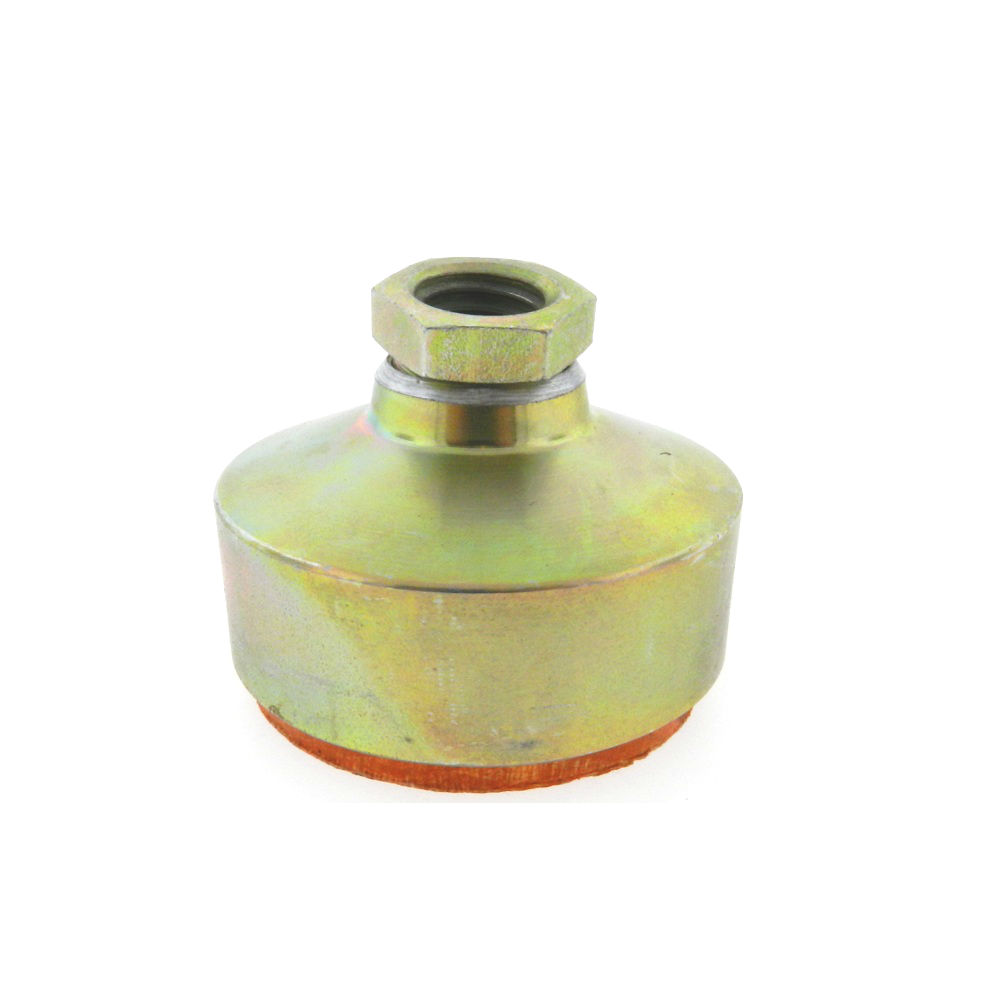

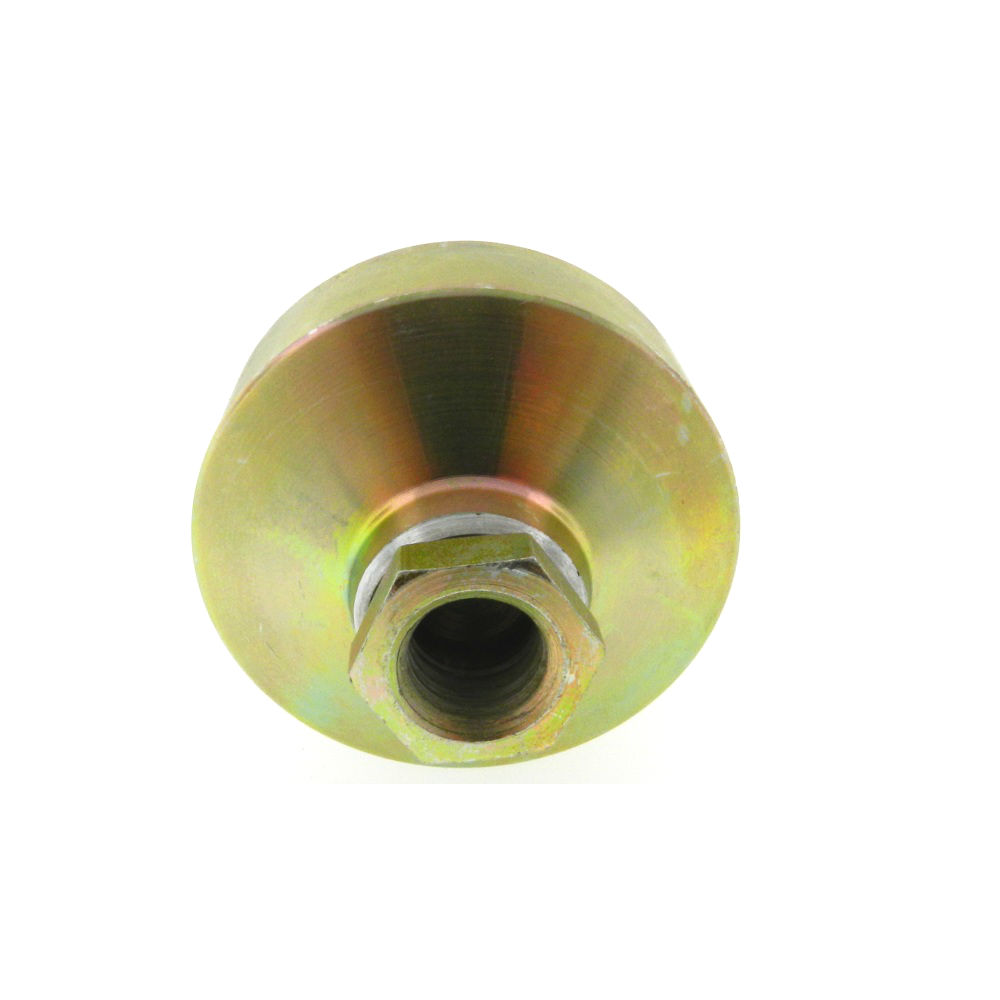

JBF National's tapped heavy duty anti-vibration mounts are designed to reduce dangerous vibration transmissions up to 98%. To ensure durability, these control mounts are made from the highest quality steel, and to further reduce the effects of vibration, each and every one comes with a rubber anti-skid pad, bonded to the bottom. These mounts are designed to keep your company's equipment and workers safe by making sure that vibration prone machinery stays put. Inch, metric, steel, and stainless steel versions available.
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Base Diameter (B)

Thread Length (C)

Hex Size (E)

Maximum Load Rating

Drawings

N/A 32 mm N/A 38 mm N/A 5/8 in N/A 452 kg

N/A 48 mm N/A 44 mm N/A 3/4 in N/A 1,090 kg

N/A 64 mm N/A 48 mm N/A 7/8 in N/A 2,000 kg

N/A 76 mm N/A 54 mm N/A 1-1/16 in N/A 2,954 kg

N/A 102 mm N/A 64 mm N/A 1-3/8 in N/A 5,363 kg

N/A 152 mm N/A 73 mm N/A 1-7/8 in N/A 12,318 kg

N/A 32 mm N/A 38 mm N/A 5/8 in N/A 452 kg

N/A 48 mm N/A 44 mm N/A 3/4 in N/A 1,090 kg

N/A 64 mm N/A 48 mm N/A 7/8 in N/A 2,000 kg

N/A 76 mm N/A 54 mm N/A 1-1/16 in N/A 2,954 kg

N/A 102 mm N/A 64 mm N/A 1-3/8 in N/A 5,363 kg

N/A 152 mm N/A 73 mm N/A 1-7/8 in N/A 12,318 kg
