Imperial Light Duty Anti-Vibration Control Mounts
Leveling Pads

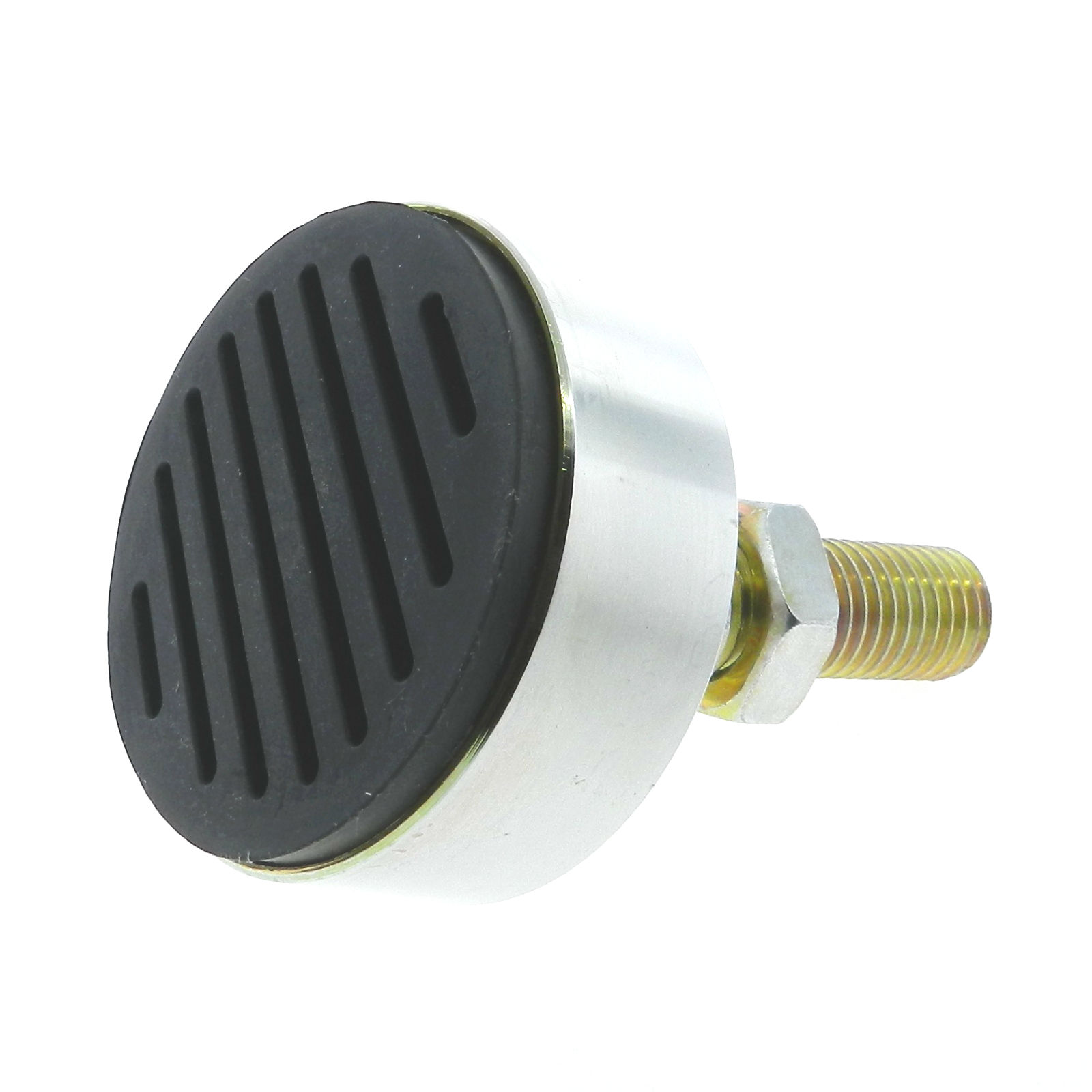

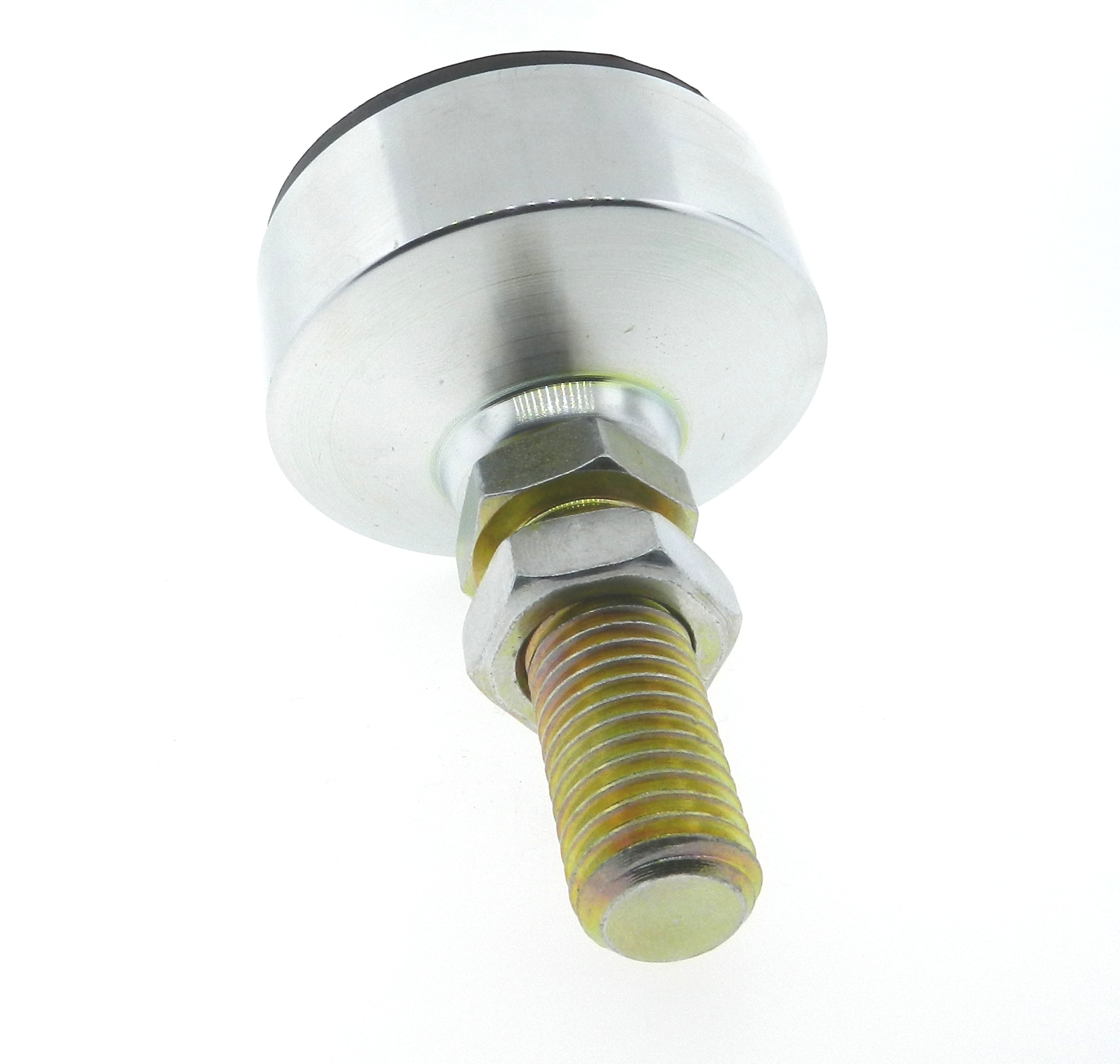

JBF National's light duty control mount is excellent at reducing felt vibration transmissions up to 98%. To ensure durability, these mounts are made from the highest quality steel. No matter the type of light duty equipment in need of stabilization, these mounts which feature a rubber anti-skid pad attached to the bottom, will make sure your machinery is stable and safe. Inch, metric, steel, and stainless steel versions available.
Item # |
Thread Size (A) |
Base Diameter (B) |
Thread Length (C) |
Total Height (D) |
Hex Size (E) |
Drawings |
|---|---|---|---|---|---|---|

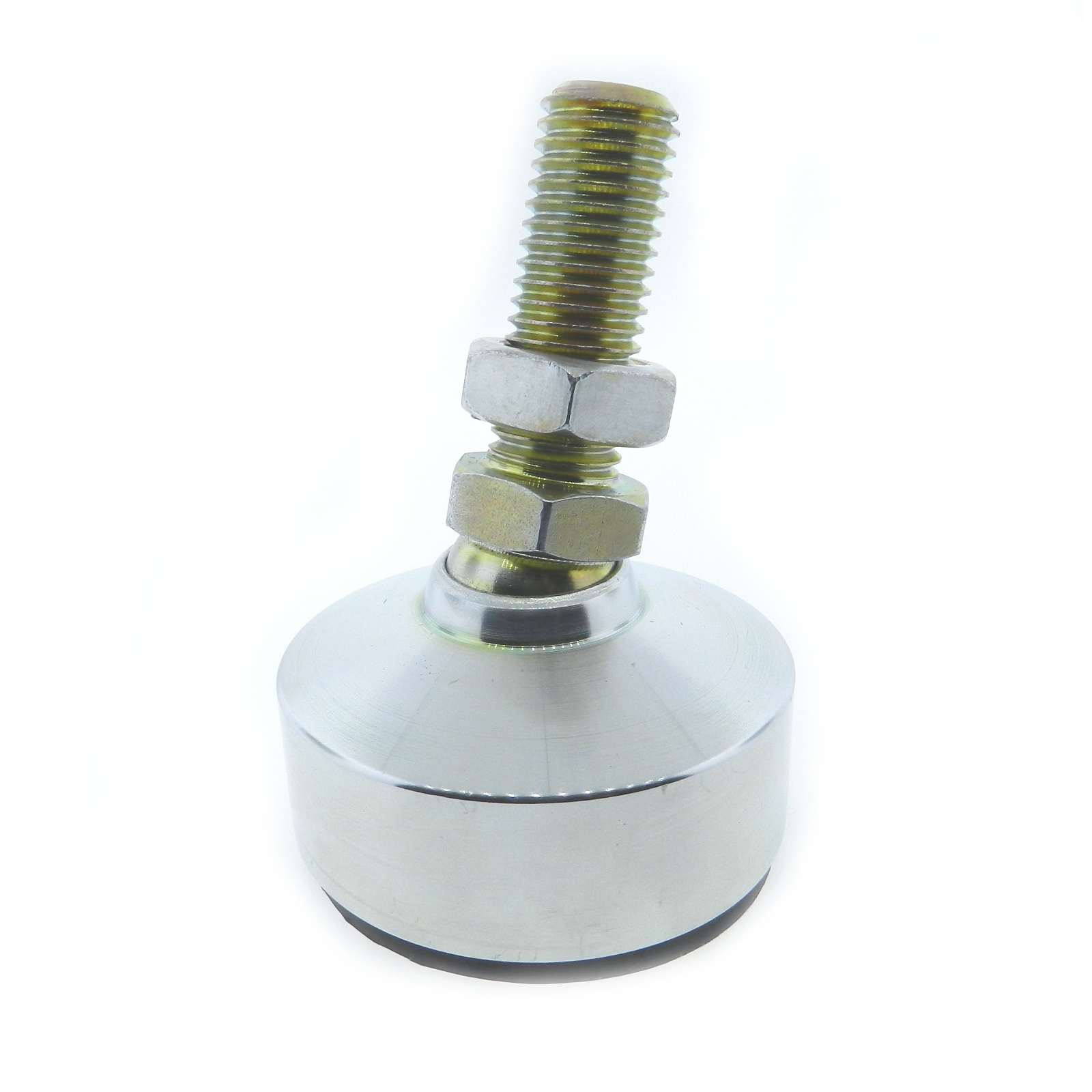

| 1AMLD-1012 1AMLD-1012/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 3/8-16 | Base Diameter (B) N/A 1-1/4 in | Thread Length (C) N/A 2 in | Total Height (D) N/A 3-1/2 in | Hex Size (E) N/A 5/8 in |
Drawings
 |
| 1AMLD-1013 1AMLD-1013/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 1/2-13 | Base Diameter (B) N/A 1-7/8 in | Thread Length (C) N/A 2 in | Total Height (D) N/A 3-3/4 in | Hex Size (E) N/A 3/4 in |
Drawings
|
| 1AMLD-1014 1AMLD-1014/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 5/8-11 | Base Diameter (B) N/A 2-1/2 in | Thread Length (C) N/A 2 in | Total Height (D) N/A 3-7/8 in | Hex Size (E) N/A 7/8 in |
Drawings
|
| 1AMLD-1015 1AMLD-1015/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 3/4-10 | Base Diameter (B) N/A 3 in | Thread Length (C) N/A 2 in | Total Height (D) N/A 4-1/8 in | Hex Size (E) N/A 1-1/16 in |
Drawings
|
| 2AMLD-1016 2AMLD-1016/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 1-8 | Base Diameter (B) N/A 4 in | Thread Length (C) N/A 3-1/2 in | Total Height (D) N/A 6 in | Hex Size (E) N/A 1-3/8 in |
Drawings
|
| 3AMLD-1017 3AMLD-1017/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 1-1/4-7 | Base Diameter (B) N/A 6 in | Thread Length (C) N/A 4.00 in | Total Height (D) N/A 6-7/8 in | Hex Size (E) N/A 1-7/8 in |
Drawings
|
| 1AMLD-1012SS 1AMLD-1012SS/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 3/8-16 | Base Diameter (B) N/A 1-1/4 in | Thread Length (C) N/A 2 in | Total Height (D) N/A 3-1/2 in | Hex Size (E) N/A 5/8 in |
Drawings
|
| 1AMLD-1013SS 1AMLD-1013SS/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 1/2-13 | Base Diameter (B) N/A 1-7/8 in | Thread Length (C) N/A 2 in | Total Height (D) N/A 3-3/4 in | Hex Size (E) N/A 3/4 in |
Drawings
|
| 1AMLD-1014SS 1AMLD-1014SS/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 5/8-11 | Base Diameter (B) N/A 2-1/2 in | Thread Length (C) N/A 2 in | Total Height (D) N/A 3-7/8 in | Hex Size (E) N/A 7/8 in |
Drawings
|
| 1AMLD-1015SS 1AMLD-1015SS/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 3/4-10 | Base Diameter (B) N/A 3 in | Thread Length (C) N/A 2 in | Total Height (D) N/A 4-1/8 in | Hex Size (E) N/A 1-1/16 in |
Drawings
|
| 2AMLD-1017SS 2AMLD-1017SS/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 1-8 | Base Diameter (B) N/A 4 in | Thread Length (C) N/A 3-1/2 in | Total Height (D) N/A 6 in | Hex Size (E) N/A 1-3/8 in |
Drawings
|
| 3AMLD-1018SS 3AMLD-1018SS/Asset/metal-anti-vibration-mount--1-.jpg | Thread Size (A) N/A 1-1/4-7 | Base Diameter (B) N/A 6 in | Thread Length (C) N/A 4.00 in | Total Height (D) N/A 6-7/8 in | Hex Size (E) N/A 1-7/8 in |
Drawings
|
