• Steel Studded Leveling Pads

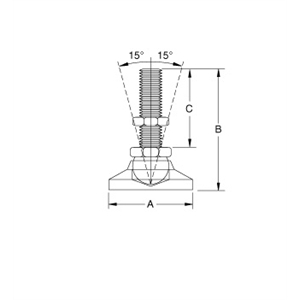

  • <!-Steel Studded Leveling Pads Line Drawing->
JBF National studded steel leveling pads are ideal for mounting various types of machinery including conveyor belts, racks, washing machines, refrigerators, and so much more. These levelers feature a 15 degree off center swivel, making machinery placement a cinch in bumpy and un-even surface situations. In addition to our standard gold chromate finish, we also offer black oxide, stainless steel and nickel plated finishes to suit all mounting situations. Inch and metric versions, and various stud lengths available.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Dimension A (in)

Dimension B (in)

Dimension C (in)

Thread Size

Hex Size (in)

Maximum Load Rating (lb)

Item #

Dimension A

Dimension B

Dimension C

Thread Size

Drawings

N/A 3/4 in N/A 1.53 in N/A 1.00 in N/A 10-32

N/A 3/4 in N/A 2.53 in N/A 2.00 in N/A 10-32

N/A 1 in N/A 1.95 in N/A 1.25 in N/A 1/4-20

N/A 1 in N/A 3.20 in N/A 2.50 in N/A 1/4-20

N/A 1-1/4 in N/A 2.87 in N/A 2.00 in N/A 5/16-18

N/A 1-1/4 in N/A 2.87 in N/A 2.00 in N/A 3/8-16

N/A 1-1/4 in N/A 4.87 in N/A 4.00 in N/A 3/8-16

N/A 1-7/8 in N/A 3.12 in N/A 2.00 in N/A 1/2-13

N/A 1-7/8 in N/A 5.12 in N/A 4.00 in N/A 1/2-13

N/A 1-7/8 in N/A 5.12 in N/A 2.00 in N/A 1/2-20

N/A 2-1/2 in N/A 3.250 in N/A 2.00 in N/A 5/8-11

N/A 2-1/2 in N/A 5-1/4 in N/A 4.00 in N/A 5/8-11

N/A 3 in N/A 3.50 in N/A 2.00 in N/A 3/4-10

N/A 3 in N/A 5.50 in N/A 4.00 in N/A 3/4-10

N/A 4 in N/A 6.12 in N/A 4.25 in N/A 1-8

N/A 4 in N/A 9.87 in N/A 8.00 in N/A 1-8
