• Steel Tapped Leveling Pads

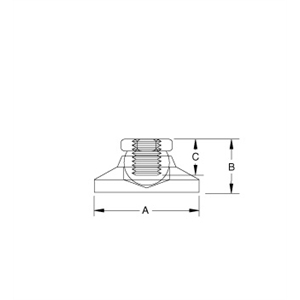

  • <!-Steel Tapped Leveling Pads Line Drawing->
JBF National steel leveling pads are ideal for mounting various types of machinery including conveyor belts, racks, washing machines, refrigerators, and so much more. These levelers feature a 15 degree off center swivel, making machinery placement a cinch in bumpy and un-even surface situations. In addition to our standard gold chromate finish, we also offer black oxide, stainless steel and nickel plated finishes to suit any and all mounting situations. Inch and metric versions available.
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension A

Dimension B

Dimension C

Tap Size

Drawings

N/A 3/4 in N/A 17/32 in N/A 15/64 in N/A 10-32

N/A 1 in N/A 45/64 in N/A 5/16 in N/A 1/4-20

N/A 1-1/4 in N/A 7/8 in N/A 3/8 in N/A 5/16-18

N/A 1-1/4 in N/A 7/8 in N/A 3/8 in N/A 3/8-16

N/A 1-1/4 in N/A 7/8 in N/A 3/8 in N/A 3/8-24

N/A 1-7/8 in N/A 1-1/8 in N/A 7/16 in N/A 1/2-13

N/A 1-7/8 in N/A 1-1/8 in N/A 7/16 in N/A 1/2-20

N/A 2-1/2 in N/A 1-1/4 in N/A 7/16 in N/A 5/8-11

N/A 2-1/2 in N/A 1-1/4 in N/A 7/16 in N/A 5/8-18

N/A 3 in N/A 1.50 in N/A 5/8 in N/A 3/4-10

N/A 3 in N/A 1.50 in N/A 5/8 in N/A 3/4-16

N/A 4 in N/A 1-7/8 in N/A 13/16 in N/A 1-8

N/A 4 in N/A 1-7/8 in N/A 13/16 in N/A 1-12
