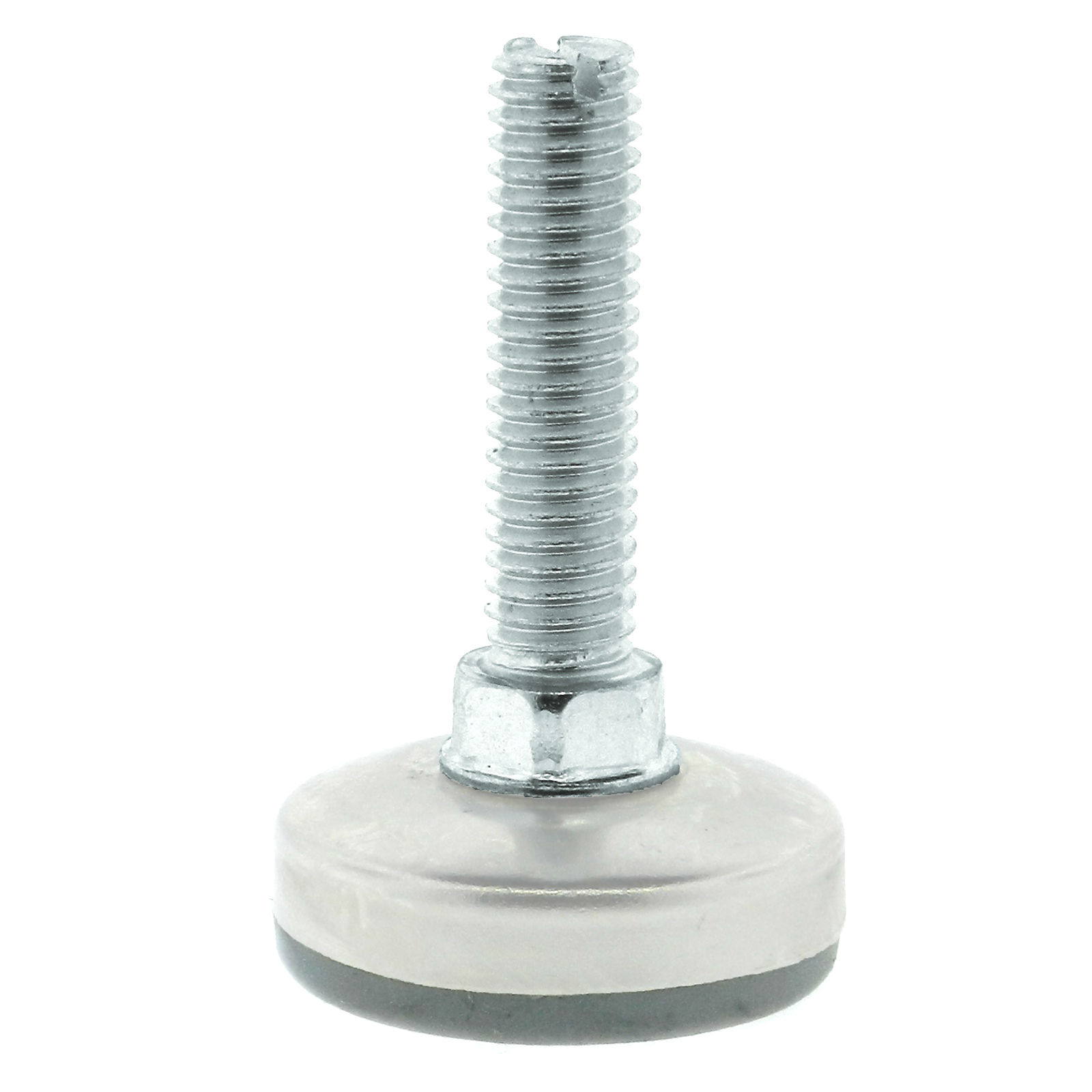

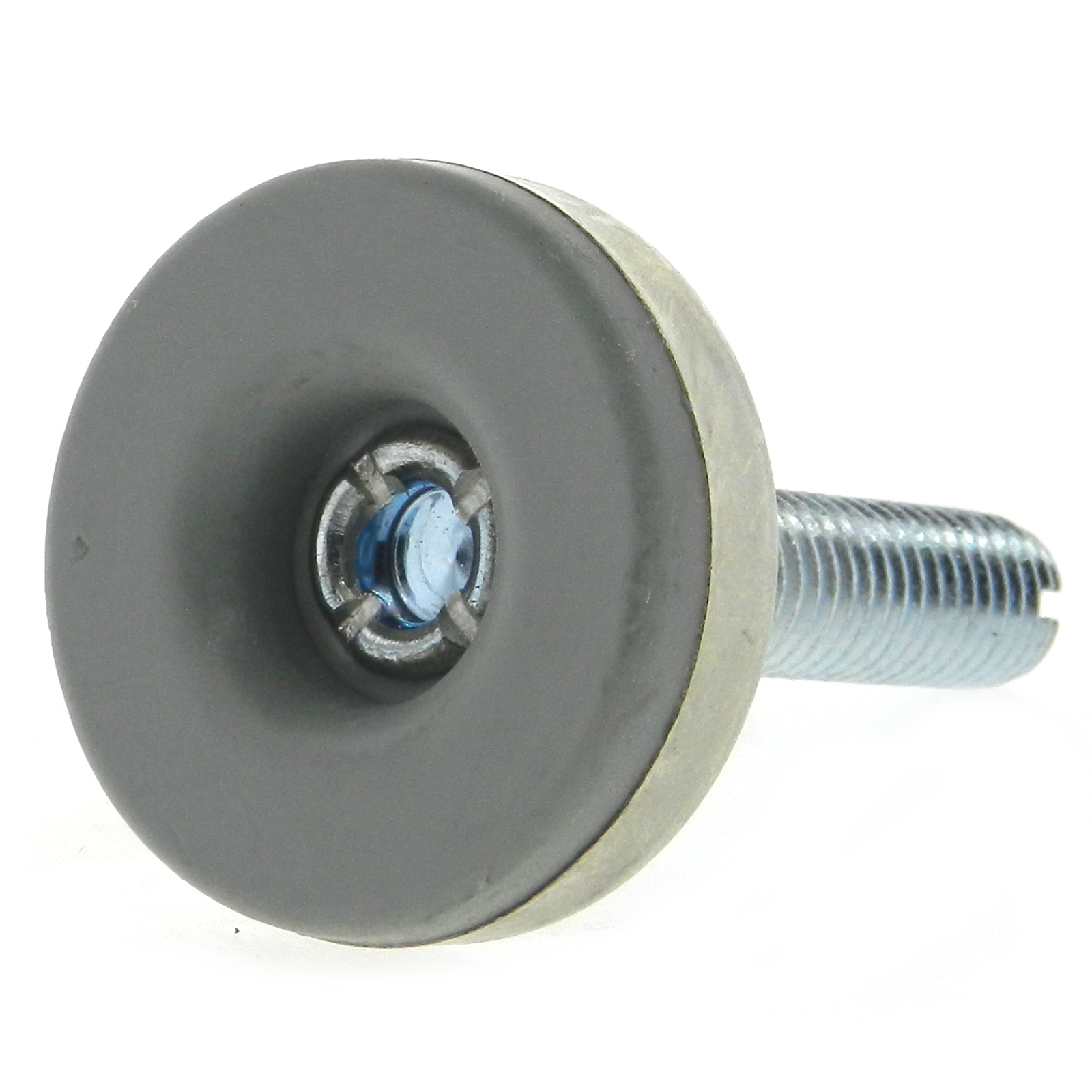

The stability offered by LevelStar elastomer base leveling pads comes via its rubber base and non-swivel design. These levelers lend themselves to high vibration/constant use situations where the need for machinery stability and eliminating machinery creep is a must. This leveler features a 300 Lbs. maximum weight rating, a stud with a fully integrated hexagonal nut, and is manufactured from steel with zinc plating to increase corrosion protection.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1

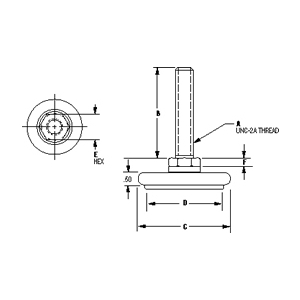

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Hex Size (E)

Dimension F

Drawings

N/A 1/4-20 N/A 1.50 in N/A 1.5 in N/A 1.22 in N/A 1/2 in N/A 0.16 in

N/A 5/16-18 N/A 1.50 in N/A 1.5 in N/A 1.22 in N/A 1/2 in N/A 0.16 in

N/A 3/8-16 N/A 2 in N/A 2 in N/A 1.71 in N/A 9/16 in N/A 0.2 in

N/A 1/2-13 N/A 2 in N/A 2 in N/A 1.71 in N/A 9/16 in N/A 0.2 in
