Imperial Light Duty Anti-Vibration Tapped Control Mounts
Leveling Pads

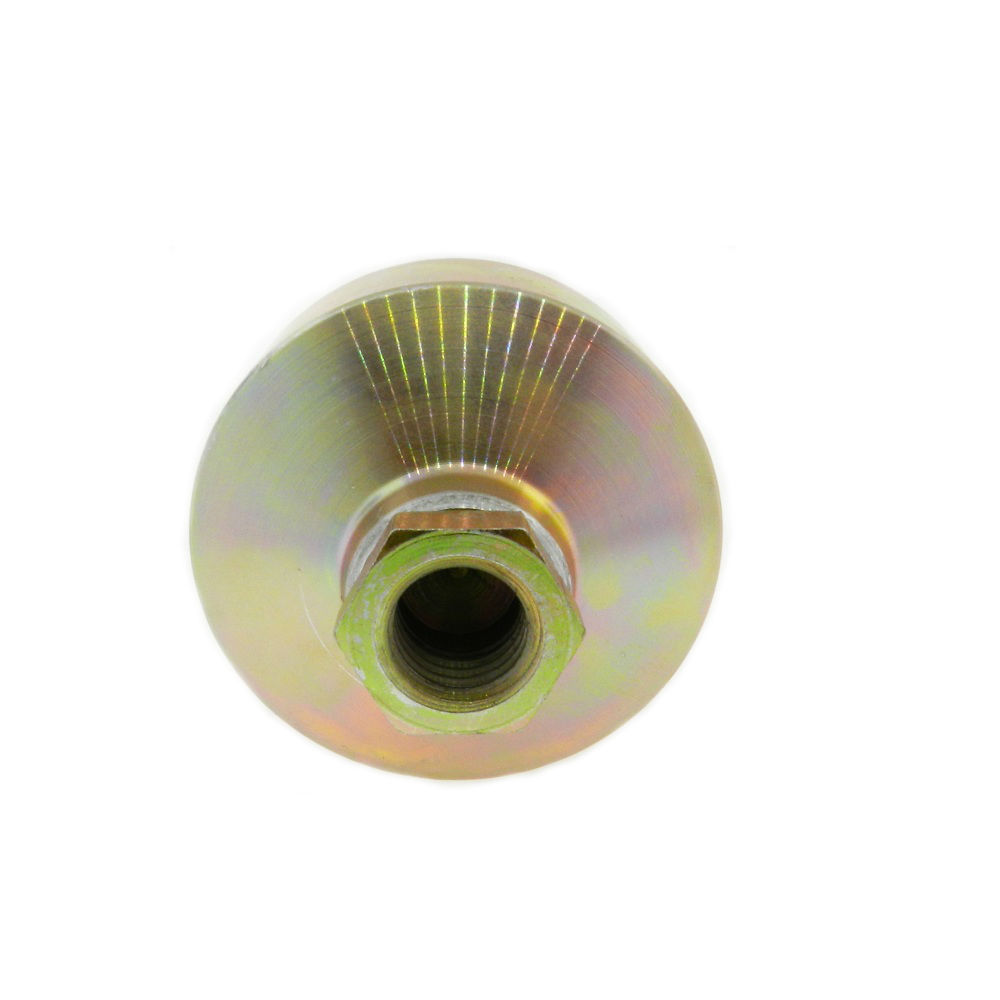

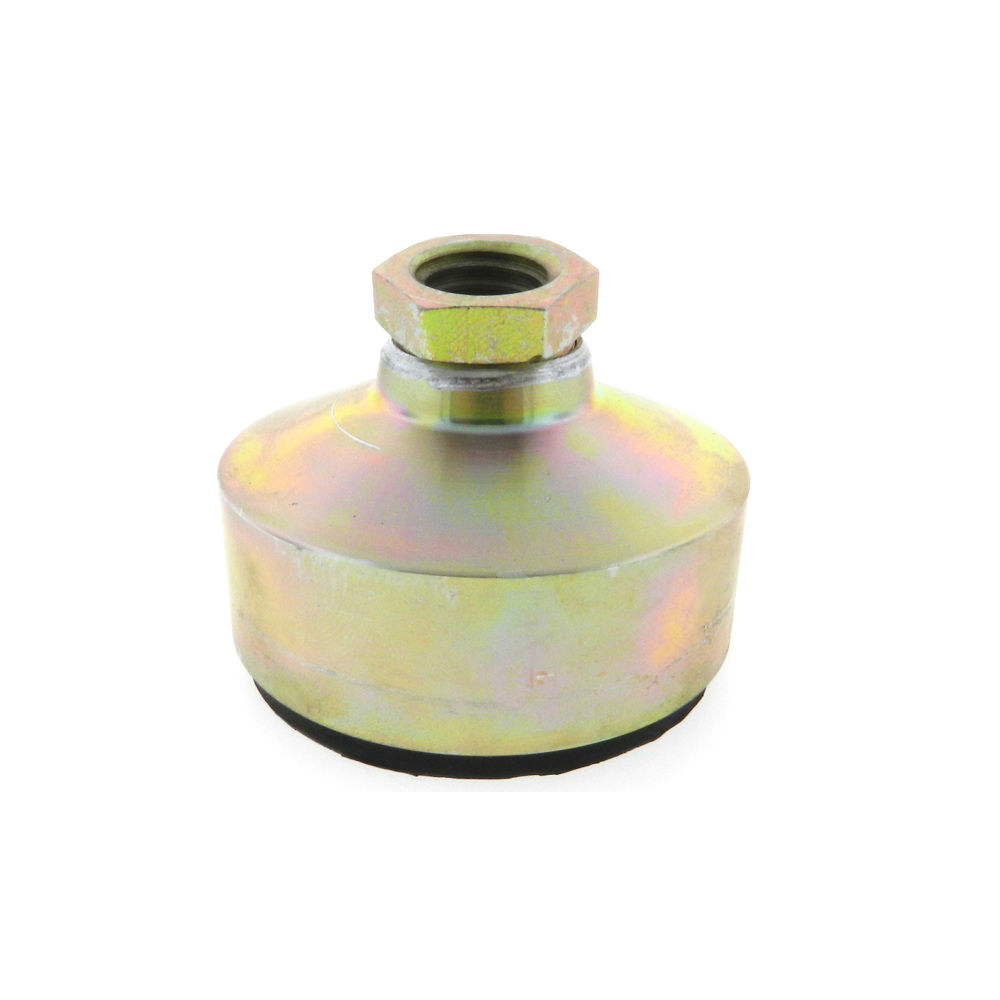

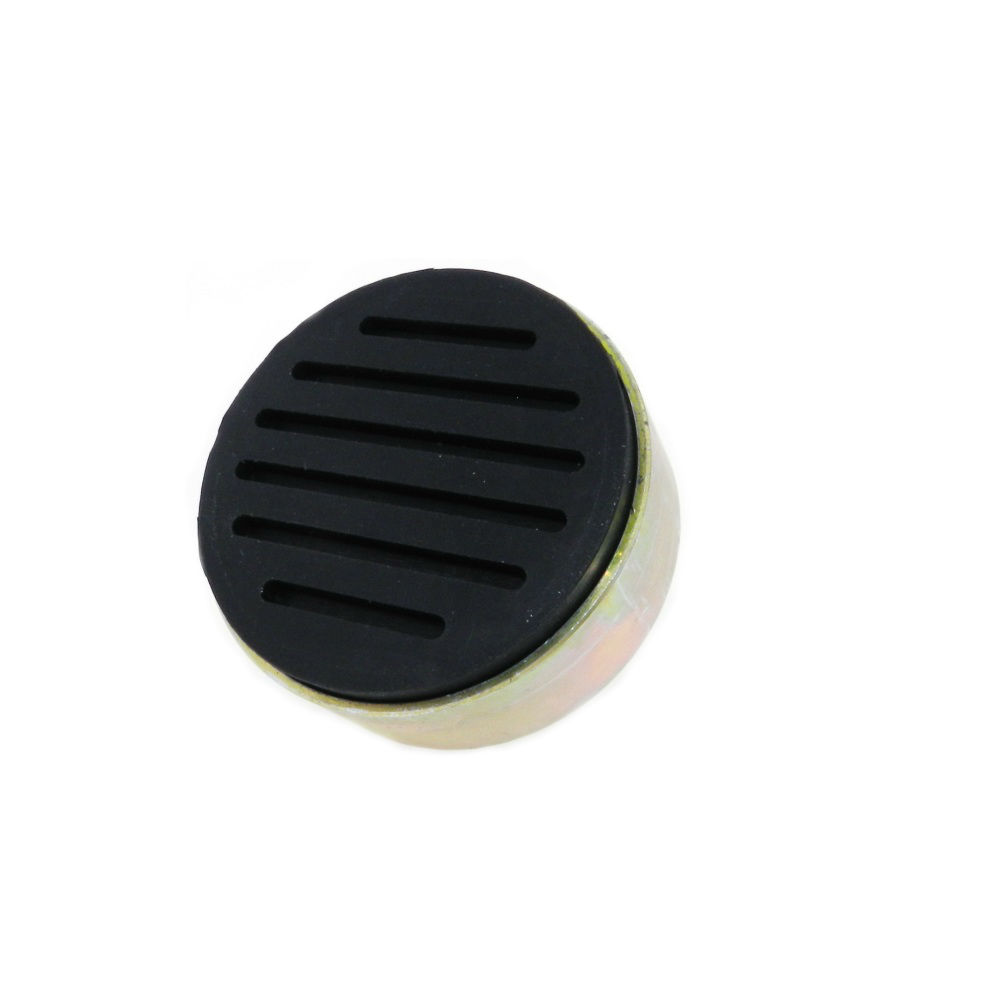

JBF National's light duty tapped control mount is excellent at reducing felt vibration transmissions up to 98%. To ensure durability, these mounts are made from the highest quality steel. No matter the type of light duty equipment in need of stabilization, these mounts which feature a rubber anti-skid pad attached to the bottom, will make sure your machinery is stable and safe. Inch, metric, steel, and stainless steel versions available.
Item # |
Thread Size (A) |
Base Diameter (B) |
Thread Length (C) |
Hex Size (E) |
Drawings |
|---|---|---|---|---|---|
| 1AMLD-1019 1AMLD-1019/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 3/8-16 | Base Diameter (B) N/A 1-1/4 in | Thread Length (C) N/A 1-1/2 in | Hex Size (E) N/A 5/8 in |
Drawings
 |
| 1AMLD-1020 1AMLD-1020/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 1/2-13 | Base Diameter (B) N/A 1-7/8 in | Thread Length (C) N/A 1-3/4 in | Hex Size (E) N/A 3/4 in |
Drawings
|
| 1AMLD-1021 1AMLD-1021/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 5/8-11 | Base Diameter (B) N/A 2-1/2 in | Thread Length (C) N/A 1-7/8 in | Hex Size (E) N/A 7/8 in |
Drawings
|
| 1AMLD-1022 1AMLD-1022/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 3/4-10 | Base Diameter (B) N/A 3 in | Thread Length (C) N/A 2-1/8 in | Hex Size (E) N/A 1-1/16 in |
Drawings
|
| 1AMLD-1023 1AMLD-1023/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 1-8 | Base Diameter (B) N/A 4 in | Thread Length (C) N/A 2-1/2 in | Hex Size (E) N/A 1-3/8 in |
Drawings
|
| 1AMLD-1024 1AMLD-1024/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 1-1/4-7 | Base Diameter (B) N/A 6 in | Thread Length (C) N/A 2-7/8 in | Hex Size (E) N/A 1-7/8 in |
Drawings
|
| 1AMLD-1019SS 1AMLD-1019SS/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 3/8-16 | Base Diameter (B) N/A 1-1/4 in | Thread Length (C) N/A 1-1/2 in | Hex Size (E) N/A 5/8 in |
Drawings
|
| 1AMLD-1020SS 1AMLD-1020SS/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 1/2-13 | Base Diameter (B) N/A 1-7/8 in | Thread Length (C) N/A 1-3/4 in | Hex Size (E) N/A 3/4 in |
Drawings
|
| 1AMLD-1021SS 1AMLD-1021SS/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 5/8-11 | Base Diameter (B) N/A 2-1/2 in | Thread Length (C) N/A 1-7/8 in | Hex Size (E) N/A 7/8 in |
Drawings
|
| 1AMLD-1022SS 1AMLD-1022SS/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 3/4-10 | Base Diameter (B) N/A 3 in | Thread Length (C) N/A 2-1/8 in | Hex Size (E) N/A 1-1/16 in |
Drawings
|
| 1AMLD-1023SS 1AMLD-1023SS/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 1-8 | Base Diameter (B) N/A 4 in | Thread Length (C) N/A 2-1/2 in | Hex Size (E) N/A 1-3/8 in |
Drawings
|
| 1AMLD-1024SS 1AMLD-1024SS/Asset/Anti-Vibration-Tapped-Mount-LD_0--1--.jpg | Thread Size (A) N/A 1-1/4-7 | Base Diameter (B) N/A 6 in | Thread Length (C) N/A 2-7/8 in | Hex Size (E) N/A 1-7/8 in |
Drawings
|
