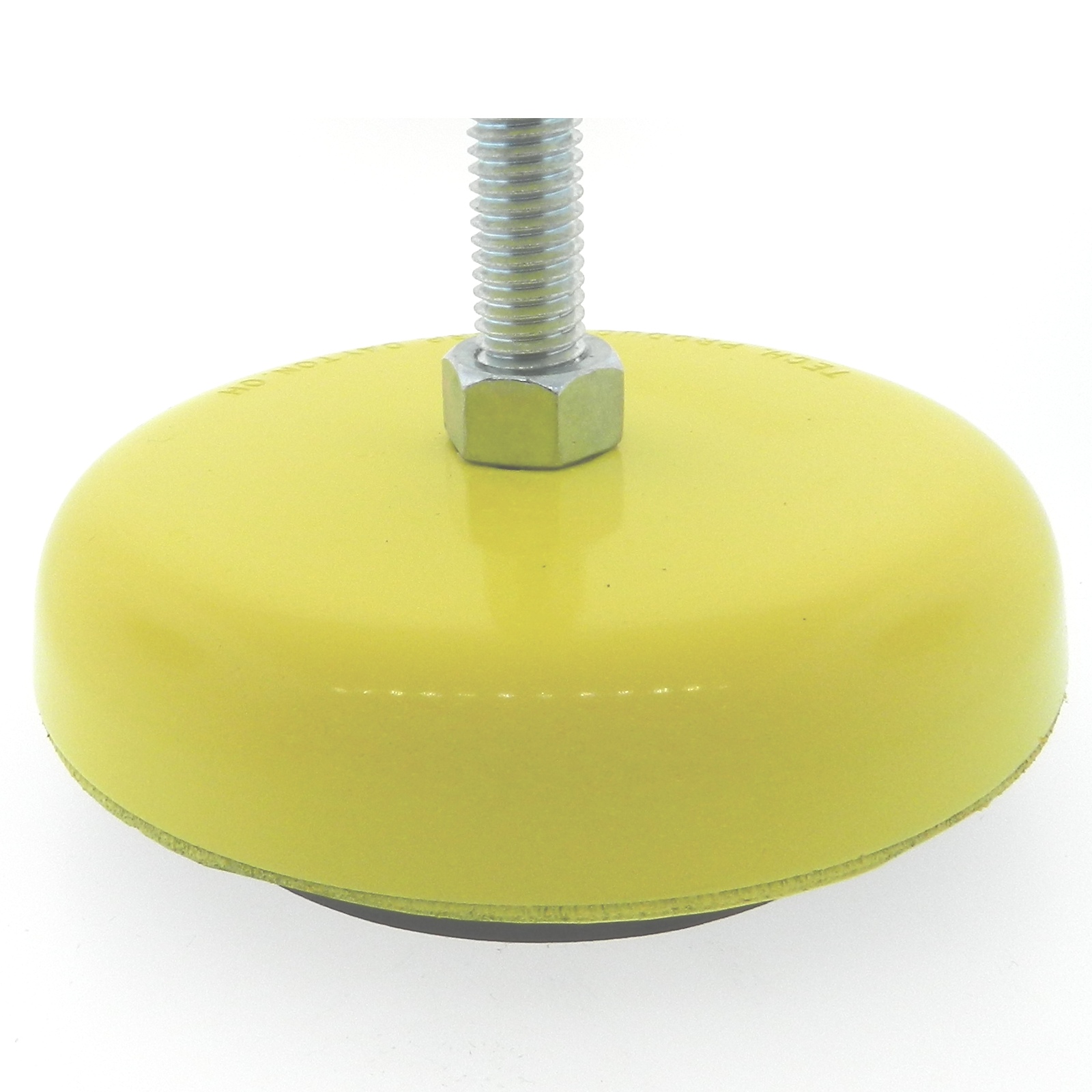

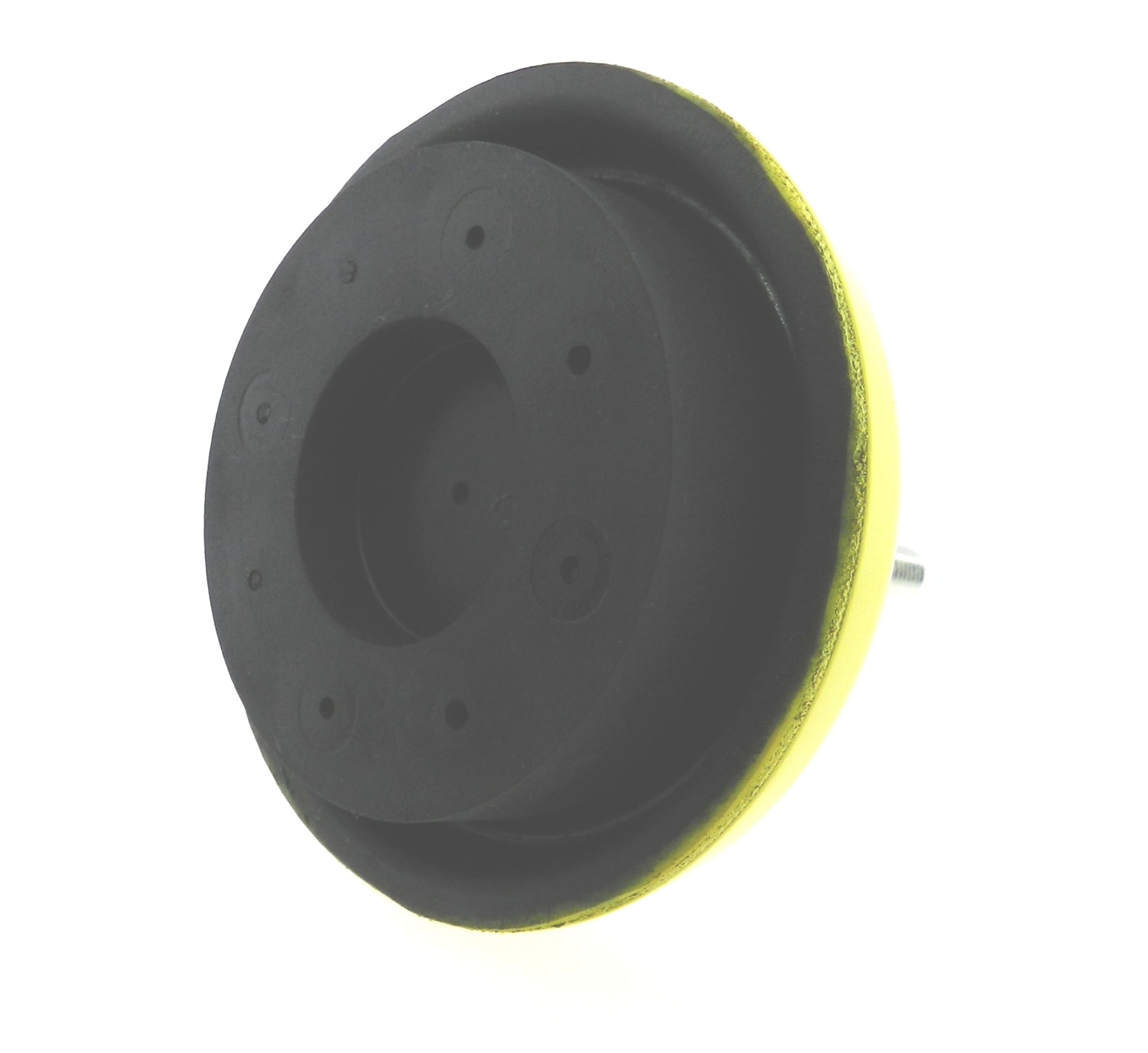

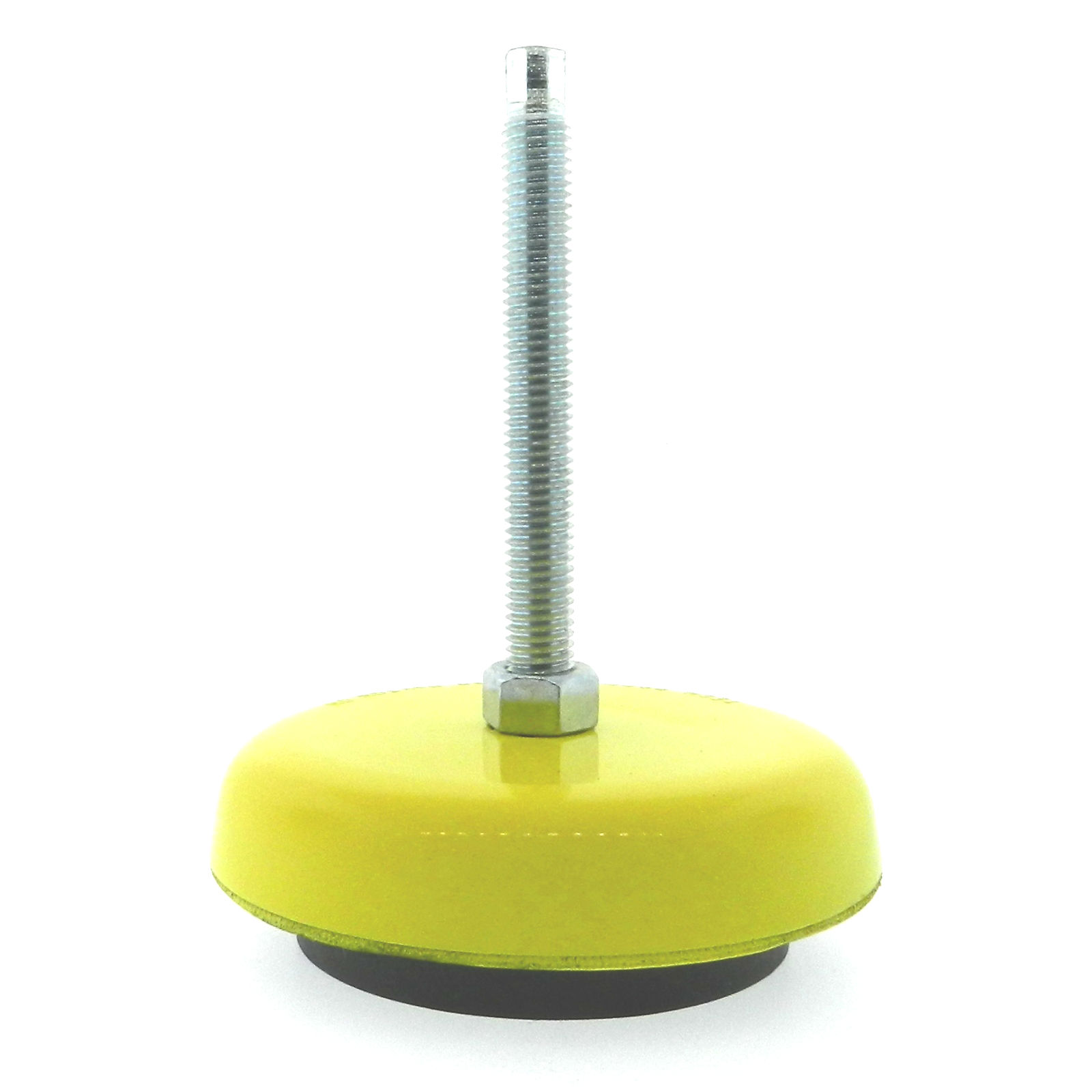

This anti-vibration mount from JBF National features a high quality neoprene elastomer pad, which is housed in a hardened steel cup for the highest durability. For quick and easy leveling, this mount features a hexagonal leveling bolt or square head stud and locking nut. With this mount stabilizing your vibration prone machinery, you can be assured that it will stay put. Inch and metric versions available.
1 - 15 of 15 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Thread Size (A)

Base Diameter (B) (in)

Base Diameter (B) (mm)

Thread Length (C) (in)

Thread Length (C) (mm)

Minimum Load Rating (lb)

Minimum Load Rating (kg)

Maximum Load Rating (lb)

Maximum Load Rating (kg)

Static Height (D) (in)

Static Height (D) (mm)

Head Type

Item #

Thread Size (A)

Base Diameter (B)

Thread Length (C)

Static Height (D)

Drawings

N/A 3/8-16 N/A 3.13 in N/A 3.00 in N/A 1.5 in

N/A 3/8-16 N/A 3.13 in N/A 3.00 in N/A 1.5 in

N/A 3/8-24 N/A 3.13 in N/A 3.00 in N/A 1.5 in

N/A 1/2-13 N/A 4.75 in N/A 5.00 in N/A 1.5 in

N/A 1/2-13 N/A 4.75 in N/A 5.00 in N/A 1.5 in

N/A 3/4-10 N/A 6.25 in N/A 5.00 in N/A 1.63 in

N/A 3/4-10 N/A 6.25 in N/A 5.00 in N/A 1.63 in

N/A 1-14 N/A 9.00 in N/A 8.00 in N/A 2.5 in

N/A 3/4-10 N/A 9.00 in N/A 4.00 in N/A 2.25 in

N/A 3/4-10 N/A 9.00 in N/A 8.00 in N/A 2.25 in

N/A 1/2-13 N/A 6.25 in N/A 5.00 in N/A 1.63 in

N/A M12 x 1.75 N/A 120 mm N/A 130 mm N/A 38 mm

N/A M20 x 2.5 N/A 160 mm N/A 130 mm N/A 41 mm

N/A M24 x 3.0 N/A 160 mm N/A 180 mm N/A 57 mm

N/A M10 x 1.5 N/A 80 mm N/A 80 mm N/A 38 mm
