Metric Medium Duty Anti-Vibration Tapped Control Mounts
Leveling Pads

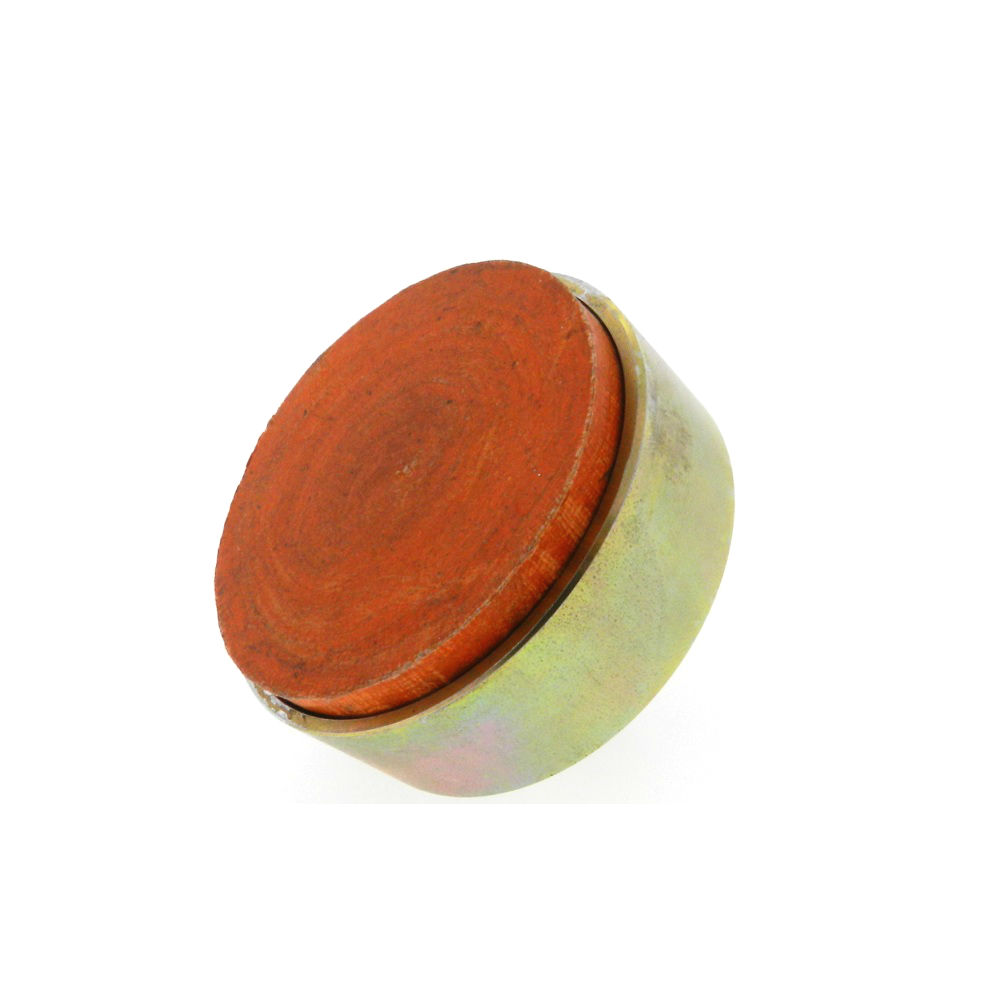

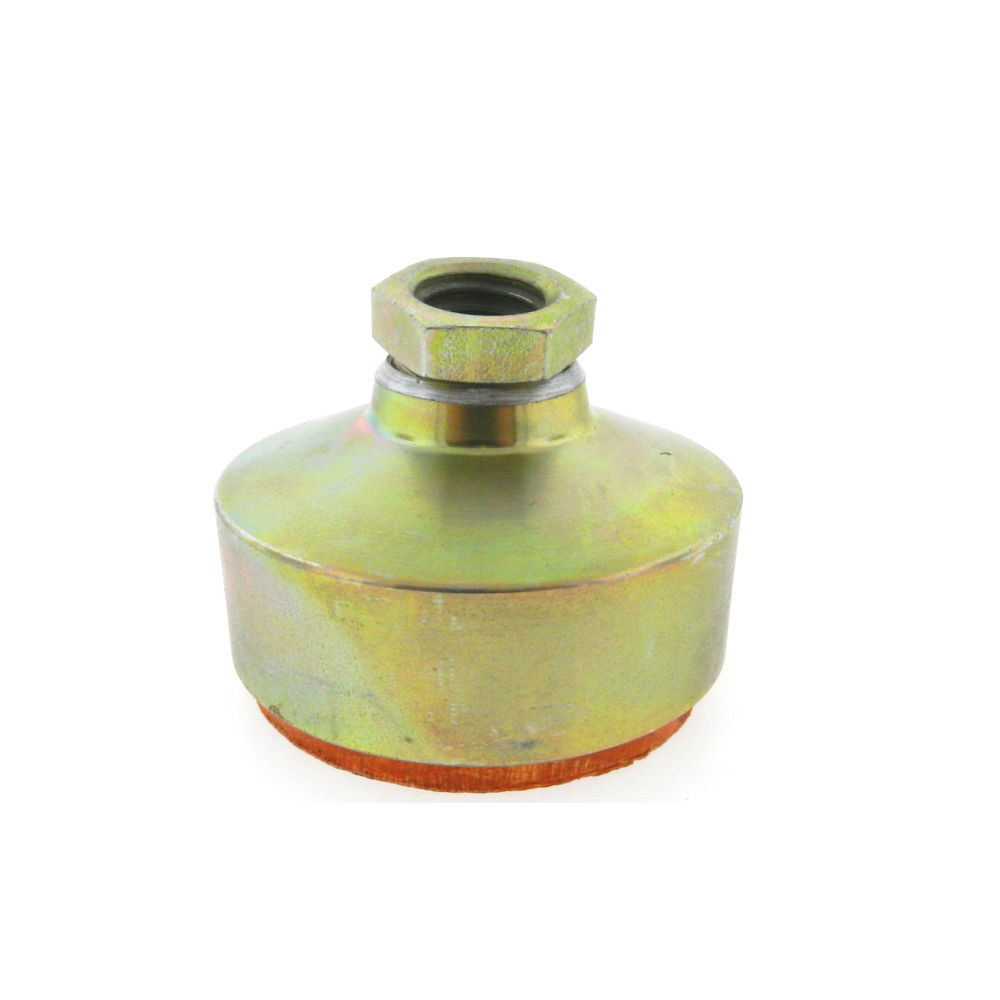

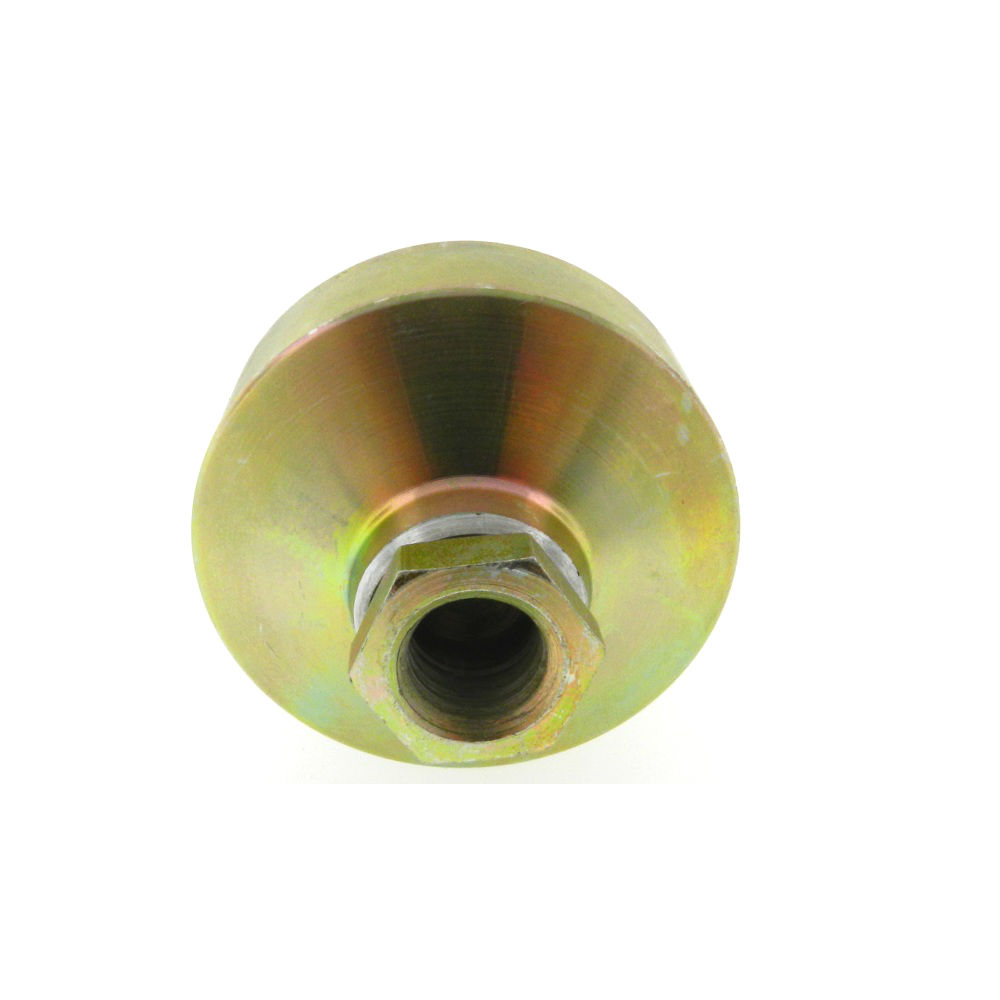

JBF National's tapped medium duty anti-vibration mounts are designed to reduce dangerous vibration transmissions up to 98%. To ensure durability, these mounts are made from the highest grade quality steel. To further reduce the effects of vibration, each and every mount comes with an anti-skid pad, bonded to the bottom. These control mounts are designed to keep your company's equipment and workers safe by making sure that vibration prone machinery stays put. Inch, metric, steel, and stainless steel versions available.
Item # |
Thread Size (A) |
Base Diameter (B) |
Total Height (D) |
Hex Size (E) |
Drawings |
|---|---|---|---|---|---|
| 1AMMD-1067 1AMMD-1067/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M10 | Base Diameter (B) N/A 32 mm | Total Height (D) N/A 38 mm | Hex Size (E) N/A 5/8 in |
Drawings
 |
| 1AMMD-1068 1AMMD-1068/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M12 | Base Diameter (B) N/A 48 mm | Total Height (D) N/A 44 mm | Hex Size (E) N/A 3/4 in |
Drawings
|
| 1AMMD-1069 1AMMD-1069/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M16 | Base Diameter (B) N/A 64 mm | Total Height (D) N/A 48 mm | Hex Size (E) N/A 7/8 in |
Drawings
|
| 1AMMD-1070 1AMMD-1070/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M20 | Base Diameter (B) N/A 76 mm | Total Height (D) N/A 54 mm | Hex Size (E) N/A 1-1/16 in |
Drawings
|
| 1AMMD-1071 1AMMD-1071/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M24 | Base Diameter (B) N/A 102 mm | Total Height (D) N/A 64 mm | Hex Size (E) N/A 1-3/8 in |
Drawings
|
| 1AMMD-1072 1AMMD-1072/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M30 | Base Diameter (B) N/A 152 mm | Total Height (D) N/A 73 mm | Hex Size (E) N/A 1-7/8 in |
Drawings
|
| 1AMMD-1067SS 1AMMD-1067SS/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M10 | Base Diameter (B) N/A 32 mm | Total Height (D) N/A 38 mm | Hex Size (E) N/A 5/8 in |
Drawings
|
| 1AMMD-1068SS 1AMMD-1068SS/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M12 | Base Diameter (B) N/A 48 mm | Total Height (D) N/A 44 mm | Hex Size (E) N/A 3/4 in |
Drawings
|
| 1AMMD-1069SS 1AMMD-1069SS/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M16 | Base Diameter (B) N/A 64 mm | Total Height (D) N/A 48 mm | Hex Size (E) N/A 7/8 in |
Drawings
|
| 1AMMD-1070SS 1AMMD-1070SS/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M20 | Base Diameter (B) N/A 76 mm | Total Height (D) N/A 54 mm | Hex Size (E) N/A 1-1/16 in |
Drawings
|
| 1AMMD-1071SS 1AMMD-1071SS/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M24 | Base Diameter (B) N/A 102 mm | Total Height (D) N/A 64 mm | Hex Size (E) N/A 1-3/8 in |
Drawings
|
| 1AMMD-1072SS 1AMMD-1072SS/Asset/Anti-Vibration-Tapped-Mount-HD_1--1--.jpg | Thread Size (A) N/A M30 | Base Diameter (B) N/A 152 mm | Total Height (D) N/A 73 mm | Hex Size (E) N/A 1-7/8 in |
Drawings
|
