Metric Stainless Steel Teardrop Polymer Leveling Pads
Leveling Pads

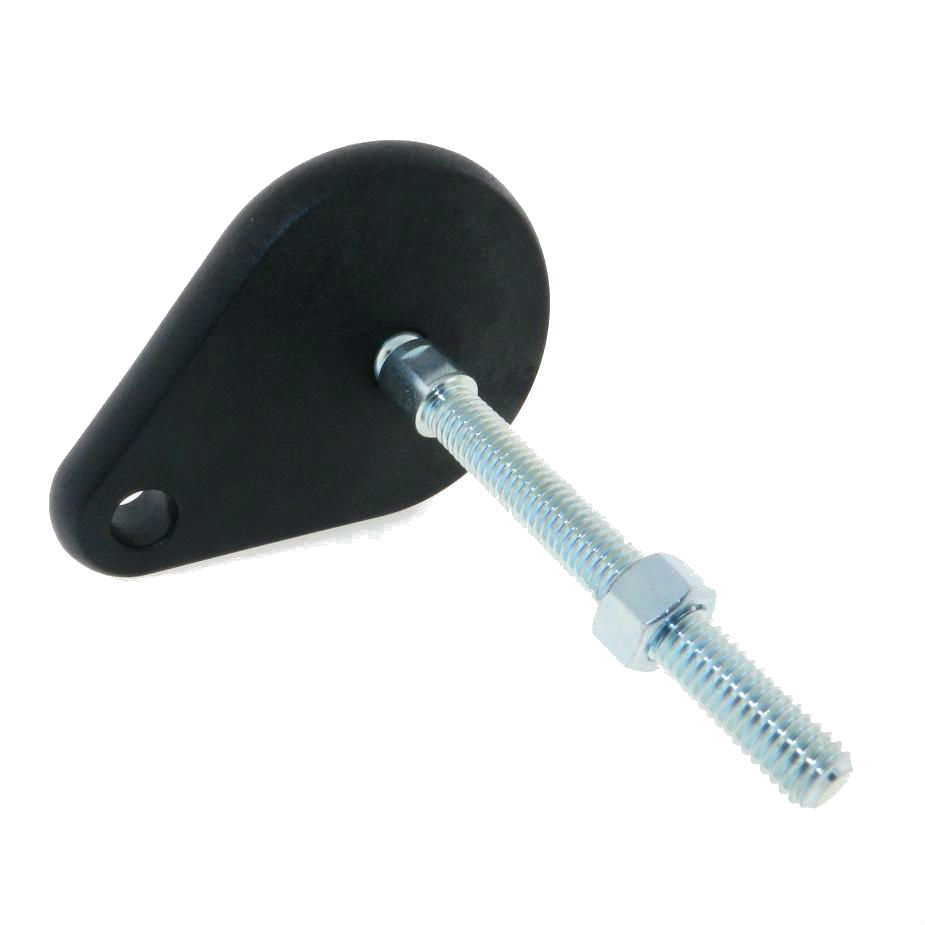

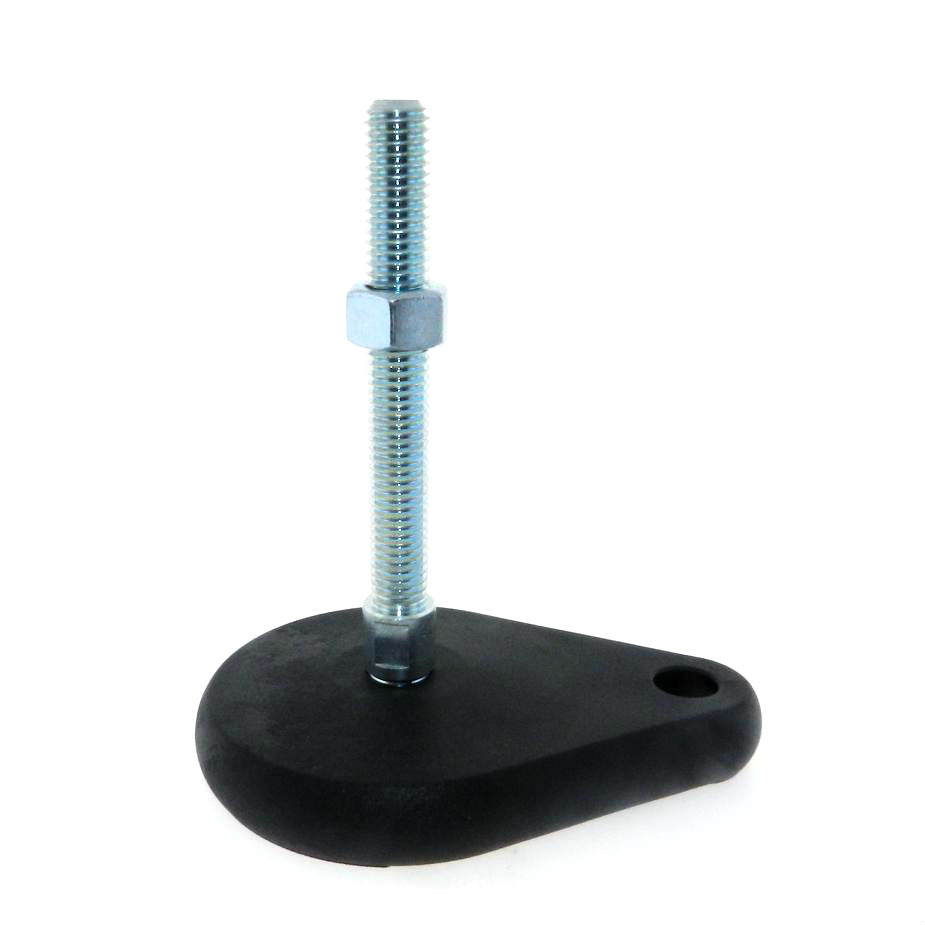

JBF National teardrop leveling pads are manufactured using high quality glass fiber reinforced Nylon to ensure durability. Due to the innovative teardrop design along with its articulating stud and locking nut, this leveling pad makes securing your machinery to the floor as easy as possible, regardless of surface and placement area conditions. To maximize corrosion protection metal components come crafted from high quality stainless steel. Inch and metric versions, and various stud lengths available.
Item # |
Thread (A) and Length ( C) |
Base Diameter (B) |
Total Height (D) |
Base Width |
Drawings |
|---|---|---|---|---|---|
| 1PLT-1142SS 1PLT-1142SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M10 x 75 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 113 mm | Base Width N/A 125 in |
Drawings
 |
| 1PLT-1143SS 1PLT-1143SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M10 x 100 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 138 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1144SS 1PLT-1144SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M10 x 125 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 163 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1145SS 1PLT-1145SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M12 x 75 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 113 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1146SS 1PLT-1146SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M12 x 100 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 138 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1147SS 1PLT-1147SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M12 x 150 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 188 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1148SS 1PLT-1148SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M16 x 75 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 113 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1149SS 1PLT-1149SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M16 x 100 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 138 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1150SS 1PLT-1150SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M16 x 125 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 163 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1151SS 1PLT-1151SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M16 x 150 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 188 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1152SS 1PLT-1152SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M16 x 200 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 238 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1153SS 1PLT-1153SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M20 x 100 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 138 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1154SS 1PLT-1154SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M20 x 150 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 188 mm | Base Width N/A 125 in |
Drawings
|
| 1PLT-1155SS 1PLT-1155SS/Asset/Poly-Pad-Teardrop-Stainless-Leveler_01--.jpg | Thread (A) and Length ( C) N/A M20 x 200 mm | Base Diameter (B) N/A 90 mm | Total Height (D) N/A 238 mm | Base Width N/A 125 in |
Drawings
|
