• Teardrop Polymer Leveling Pads
  • Teardrop Polymer Leveling Pads - 3
  • Teardrop Polymer Leveling Pads - 4
  • <!-Teardrop Polymer Leveling Pads Line Drawing->

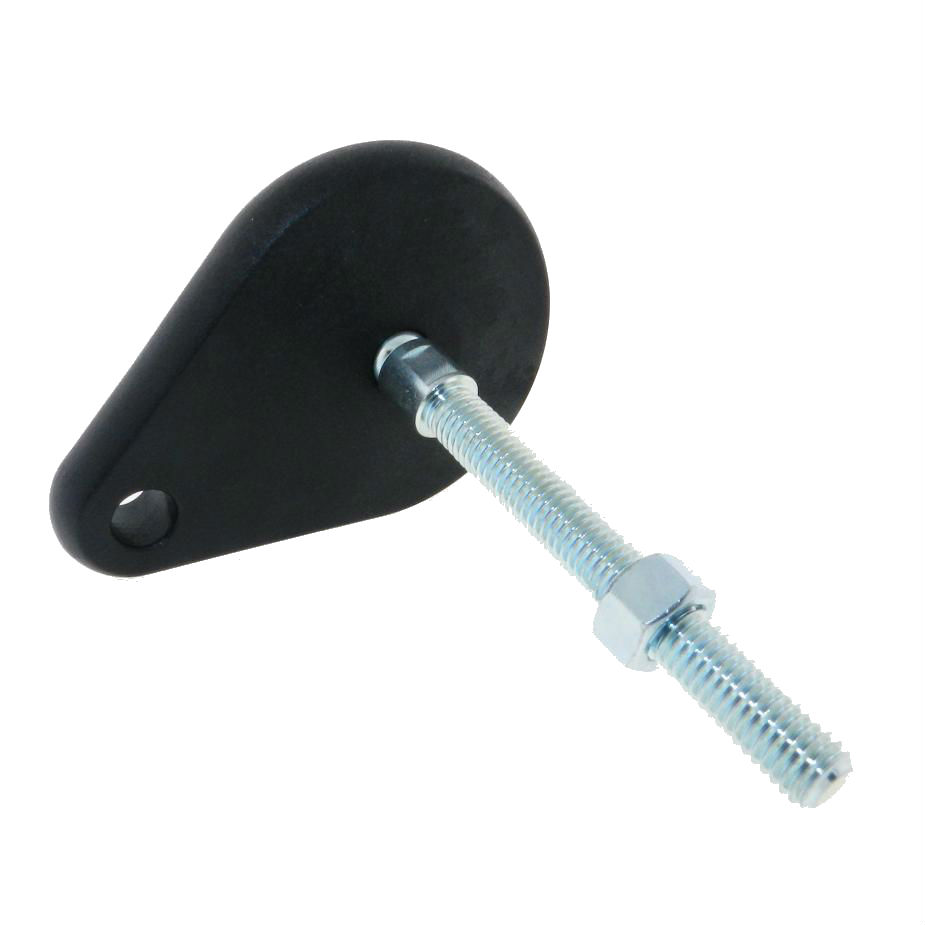

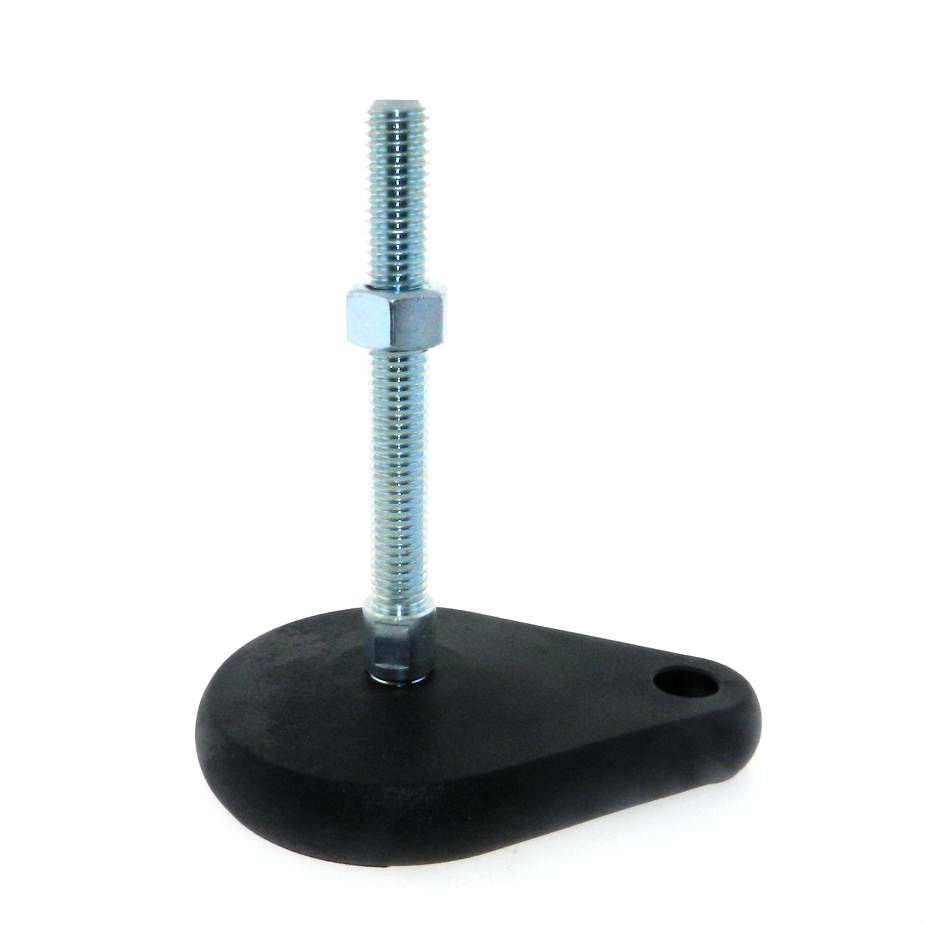

JBF National teardrop leveling pads are manufactured using high quality glass fiber reinforced Nylon 6 to ensure durability. Due to the innovative teardrop design along with its articulating stud and locking nut, this leveling pad makes securing your machinery to the floor as easy as possible, regardless of surface and placement area conditions. Inch and metric versions, and various stud lengths available.
1 - 14 of 14 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Thread (A) and Length ( C)

Base Diameter (B)

Total Height (D)

Base Width

Drawings

N/A M10 x 75 mm N/A 90 mm N/A 113 mm N/A 125 mm

N/A M10 x 100 mm N/A 90 mm N/A 138 mm N/A 125 mm

N/A M10 x 125 mm N/A 90 mm N/A 163 mm N/A 125 mm

N/A M12 x 75 mm N/A 90 mm N/A 113 mm N/A 125 mm

N/A M12 x 100 mm N/A 90 mm N/A 138 mm N/A 125 mm

N/A M12 x 150 mm N/A 90 mm N/A 188 mm N/A 125 mm

N/A M16 x 75 mm N/A 90 mm N/A 113 mm N/A 125 mm

N/A M16 x 100 mm N/A 90 mm N/A 138 mm N/A 125 mm

N/A M16 x 125 mm N/A 90 mm N/A 163 mm N/A 125 mm

N/A M16 x 150 mm N/A 90 mm N/A 188 mm N/A 125 mm

N/A M16 x 200 mm N/A 90 mm N/A 238 mm N/A 125 mm

N/A M20 x 100 mm N/A 90 mm N/A 138 mm N/A 125 mm

N/A M20 x 150 mm N/A 90 mm N/A 188 mm N/A 125 mm

N/A M20 x 200 mm N/A 90 mm N/A 238 mm N/A 125 mm
