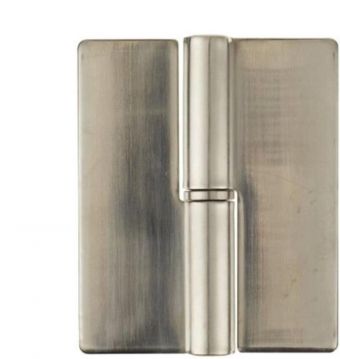

• Loose Joint Mortise Type Steel Hinges
These mortise style loose joint hinges from JBF National are made from the highest quality steel, and have been designed and tested for maximum durability and reliability. Contact a JBF National sales engineer today for more information.
1 - 19 of 19 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Gauge (in)

Open Width (in)

Length (in)

Pin Diameter (in)

Item #

JBF National Part Number / Left Hand

JBF National Part Number / Right Hand

Gauge

Open Width

Length

Pin Diameter

N/A 1LJLM-1047 N/A 1RJLM-1047 N/A 0.048 in N/A 1-1/4 in N/A 2 in N/A 0.125 in
N/A 1LJLM-1048 N/A 1RJLM-1048 N/A 0.048 in N/A 1-1/2 in N/A 2 in N/A 0.125 in
N/A 1LJLM-1049 N/A 1RJLM-1049 N/A 0.048 in N/A 2 in N/A 3 in N/A 0.125 in
N/A 1LJLM-1050 N/A 1RJLM-1050 N/A 0.048 in N/A 1-1/2 in N/A 2-1/2 in N/A 0.125 in
N/A 2LJLM-1051 N/A 2RJLM-1051 N/A 0.060 in N/A 1 in N/A 1-1/2 in N/A 0.125 in
N/A 2LJLM-1052 N/A 2RJLM-1052 N/A 0.060 in N/A 1-1/4 in N/A 2 in N/A 0.125 in
N/A 2LJLM-1053 N/A 2RJLM-1053 N/A 0.060 in N/A 1-1/2 in N/A 2 in N/A 0.125 in
N/A 2LJLM-1054 N/A 2RJLM-1054 N/A 0.060 in N/A 2 in N/A 2 in N/A 0.125 in
N/A 2LJLM-1055 N/A 2RJLM-1055 N/A 0.060 in N/A 2 in N/A 2-1/2 in N/A 0.125 in
N/A 2LJLM-1056 N/A 2RJLM-1056 N/A 0.060 in N/A 2 in N/A 3 in N/A 0.125 in
N/A 3LJLM-1057 N/A 3RJLM-1057 N/A 0.075 in N/A 1-1/2 in N/A 2 in N/A 0.125 in
N/A 3LJLM-1058 N/A 3RJLM-1058 N/A 0.075 in N/A 2 in N/A 2-1/2 in N/A 0.125 in
N/A 3LJLM-1059 N/A 3RJLM-1059 N/A 0.075 in N/A 2 in N/A 3 in N/A 0.187 in
N/A 3LJLM-1060 N/A 3RJLM-1060 N/A 0.075 in N/A 3 in N/A 4 in N/A 0.187 in
N/A 4LJLM-1061 N/A 4RJLM-1061 N/A 0.090 in N/A 2 in N/A 2-1/2 in N/A 0.187 in
N/A 4LJLM-1062 N/A 4RJLM-1062 N/A 0.090 in N/A 3 in N/A 3 in N/A 0.250 in
N/A 4LJLM-1064 N/A 4RJLM-1064 N/A 0.090 in N/A 3 in N/A 4 in N/A 0.250 in
N/A 5LJLM-1065 N/A 5RJLM-1065 N/A 0.120 in N/A 3 in N/A 4 in N/A 0.250 in
N/A 5LJLM-1066 N/A 5RJLM-1066 N/A 0.120 in N/A 4 in N/A 4 in N/A 0.250 in
