• 4 Lobed Imperial Studded Aluminum Hand Knobs
  • <!-4 Lobed Imperial Studded Aluminum Hand Knobs - 2->

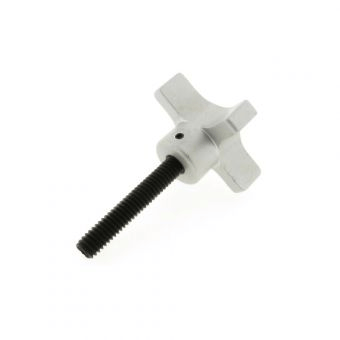

This 4 lobed studded aluminum hand knob from JBF National is manufactured from the highest quality aluminum, and is designed to meet the requirements of even the most demanding industrial applications. The 4 lobe design of this hand knob (also known as a clamping knob) ensures positive palm and finger grip, each and every time. Inch and metric versions available.
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Knob Diameter (A)

Thread Size

Total Length (B)

Hub Diameter (C)

Hub Length (D)

Stud Length (E)

Drawings

N/A 1-1/2 in N/A 1/4-20 N/A 2-5/8 in N/A 5/8 in N/A 3/8 in N/A 1-3/4 in

N/A 1-1/2 in N/A 1/4-20 N/A 3-7/8 in N/A 5/8 in N/A 3/8 in N/A 3 in

N/A 2 in N/A 5/16-18 N/A 2-3/4 in N/A 13/16 in N/A 1/2 in N/A 1-3/4 in

N/A 2 in N/A 5/16-18 N/A 4 in N/A 13/16 in N/A 1/2 in N/A 3 in

N/A 2-1/2 in N/A 3/8-16 N/A 2-7/8 in N/A 1 in N/A 9/16 in N/A 1-3/4 in

N/A 2-1/2 in N/A 3/8-16 N/A 4-1/8 in N/A 1 in N/A 9/16 in N/A 3 in

N/A 2-1/2 in N/A 1/2-13 N/A 2-7/8 in N/A 1 in N/A 9/16 in N/A 1-3/4 in

N/A 2-1/2 in N/A 1/2-13 N/A 4-1/8 in N/A 1 in N/A 9/16 in N/A 3 in

N/A 3 in N/A 5/8-11 N/A 3 in N/A 1-1/4 in N/A 5/8 in N/A 1-3/4 in

N/A 3 in N/A 5/8-11 N/A 4-1/4 in N/A 1-1/4 in N/A 5/8 in N/A 3 in
