4 Lobed Imperial Tapped Aluminum Hand Knobs
Metal Knobs

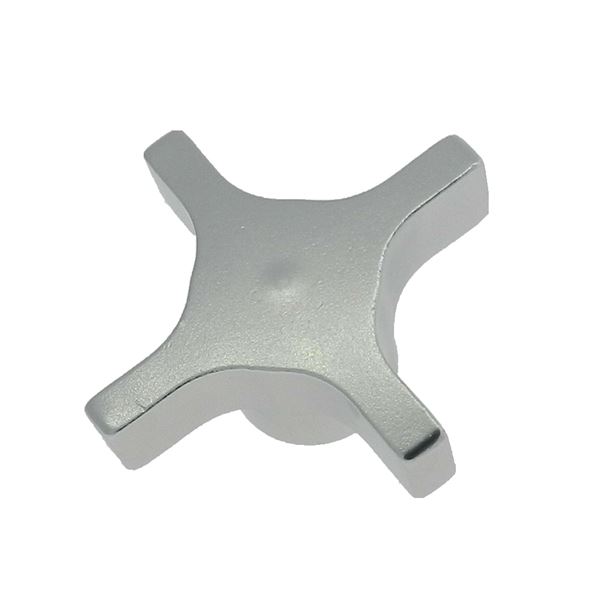

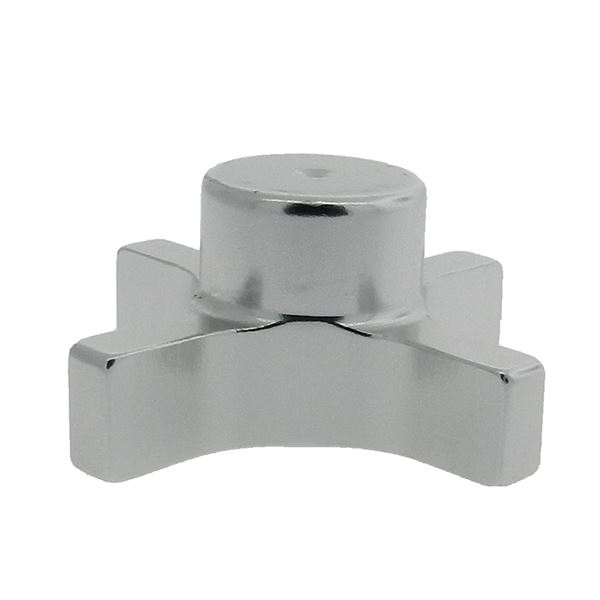

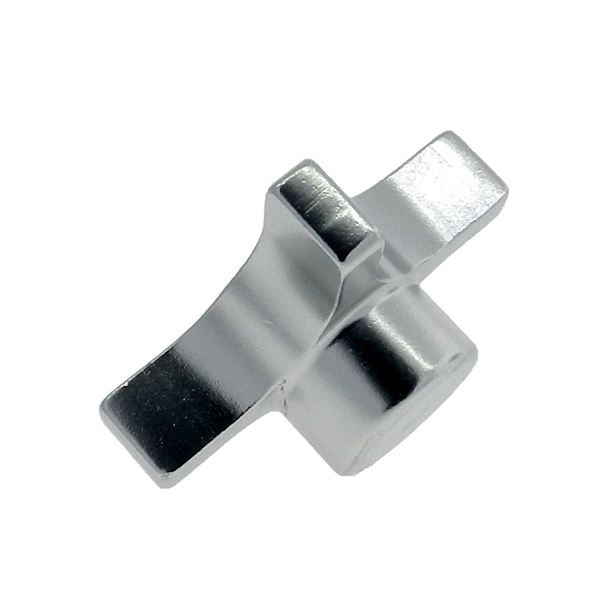

This 4 lobbed aluminum hand knob is manufactured from the highest quality aluminum, and is designed to meet the requirements of even the most demanding industrial applications. The 4 lobe design of this hand knob (also known as a clamping knob) ensures positive palm and finger grip, each and every time. Available in a clear anodized finish, and features a blank hub with centering spot. Contact one of our sales engineers concerning specialty bores, taps and set screws. Inch and metric versions available.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Thread Size |
Reamed Diameter |
Drawings |
|---|---|---|---|---|---|---|---|
| 1HKA-1010 1HKA-1010/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 1 in | Dimension B N/A 7/8 in | Dimension C N/A 1/2 in | Dimension D N/A 1/2 in | Thread Size N/A | Reamed Diameter N/A Solid |
Drawings
 |
| 1HKA-1011 1HKA-1011/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 1 in | Dimension B N/A 7/8 in | Dimension C N/A 1/2 in | Dimension D N/A 1/2 in | Thread Size N/A 1/4-20 | Reamed Diameter N/A |
Drawings
|
| 1HKA-1012 1HKA-1012/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 1 in | Dimension B N/A 7/8 in | Dimension C N/A 1/2 in | Dimension D N/A 1/2 in | Thread Size N/A 1/4-20 | Reamed Diameter N/A |
Drawings
|
| 1HKA-1013 1HKA-1013/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 1 in | Dimension B N/A 7/8 in | Dimension C N/A 1/2 in | Dimension D N/A 1/2 in | Thread Size N/A | Reamed Diameter N/A 1/4 in |
Drawings
|
| 2HKA-1014 2HKA-1014/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 1-1/2 in | Dimension B N/A 7/8 in | Dimension C N/A 5/8 in | Dimension D N/A 3/8 in | Thread Size N/A | Reamed Diameter N/A Solid |
Drawings
|
| 2HKA-1015 2HKA-1015/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 1-1/2 in | Dimension B N/A 7/8 in | Dimension C N/A 5/8 in | Dimension D N/A 3/8 in | Thread Size N/A 5/16-18 | Reamed Diameter N/A |
Drawings
|
| 2HKA-1016 2HKA-1016/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 1-1/2 in | Dimension B N/A 7/8 in | Dimension C N/A 5/8 in | Dimension D N/A 3/8 in | Thread Size N/A 5/16-18 | Reamed Diameter N/A |
Drawings
|
| 2HKA-1017 2HKA-1017/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 1-1/2 in | Dimension B N/A 7/8 in | Dimension C N/A 5/8 in | Dimension D N/A 3/8 in | Thread Size N/A | Reamed Diameter N/A 5/16 in |
Drawings
|
| 3HKA-1018 3HKA-1018/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 2 in | Dimension B N/A 1 in | Dimension C N/A 13/16 in | Dimension D N/A 1/2 in | Thread Size N/A | Reamed Diameter N/A Solid |
Drawings
|
| 3HKA-1019 3HKA-1019/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 2 in | Dimension B N/A 1 in | Dimension C N/A 13/16 in | Dimension D N/A 1/2 in | Thread Size N/A 3/8-16 | Reamed Diameter N/A |
Drawings
|
| 3HKA-1020 3HKA-1020/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 2 in | Dimension B N/A 1 in | Dimension C N/A 13/16 in | Dimension D N/A 1/2 in | Thread Size N/A 3/8-16 | Reamed Diameter N/A |
Drawings
|
| 3HKA-1021 3HKA-1021/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 2 in | Dimension B N/A 1 in | Dimension C N/A 13/16 in | Dimension D N/A 1/2 in | Thread Size N/A | Reamed Diameter N/A 3/8 in |
Drawings
|
| 4HKA-1022 4HKA-1022/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 2-1/2 in | Dimension B N/A 1-1/8 in | Dimension C N/A 1 in | Dimension D N/A 9/16 in | Thread Size N/A | Reamed Diameter N/A Solid |
Drawings
|
| 4HKA-1023 4HKA-1023/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 2-1/2 in | Dimension B N/A 1-1/8 in | Dimension C N/A 1 in | Dimension D N/A 9/16 in | Thread Size N/A 1/2-13 | Reamed Diameter N/A |
Drawings
|
| 4HKA-1024 4HKA-1024/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 2-1/2 in | Dimension B N/A 1-1/8 in | Dimension C N/A 1 in | Dimension D N/A 9/16 in | Thread Size N/A 1/2-13 | Reamed Diameter N/A |
Drawings
|
| 4HKA-1025 4HKA-1025/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 2-1/2 in | Dimension B N/A 1-1/8 in | Dimension C N/A 1 in | Dimension D N/A 9/16 in | Thread Size N/A | Reamed Diameter N/A 1/2 in |
Drawings
|
| 5HKA-1026 5HKA-1026/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 3 in | Dimension B N/A 1-1/4 in | Dimension C N/A 1-1/4 in | Dimension D N/A 5/8 in | Thread Size N/A | Reamed Diameter N/A Solid |
Drawings
|
| 5HKA-1027 5HKA-1027/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 3 in | Dimension B N/A 1-1/4 in | Dimension C N/A 1-1/4 in | Dimension D N/A 5/8 in | Thread Size N/A 5/8-11 | Reamed Diameter N/A |
Drawings
|
| 5HKA-1028 5HKA-1028/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 3 in | Dimension B N/A 1-1/4 in | Dimension C N/A 1-1/4 in | Dimension D N/A 5/8 in | Thread Size N/A 5/8-11 | Reamed Diameter N/A |
Drawings
|
| 5HKA-1029 5HKA-1029/Asset/4-lobed-aluminum-knob.jpg | Dimension A N/A 3 in | Dimension B N/A 1-1/4 in | Dimension C N/A 1-1/4 in | Dimension D N/A 5/8 in | Thread Size N/A | Reamed Diameter N/A 5/8 in |
