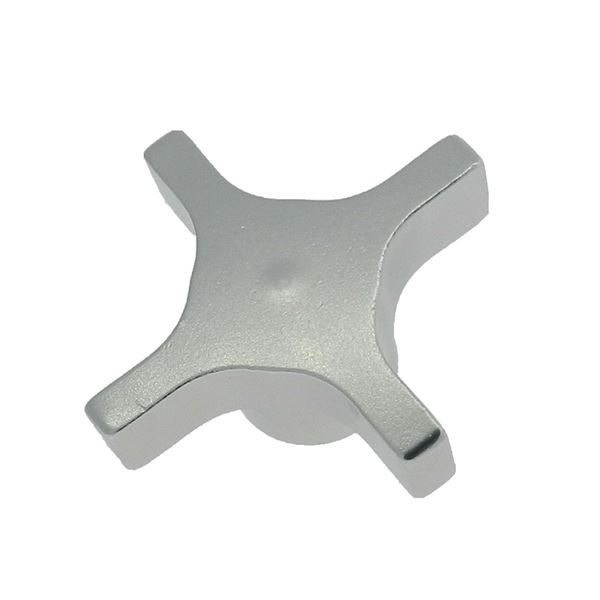

This 4 lobbed aluminum hand knob is manufactured from the highest quality aluminum, and is designed to meet the requirements of even the most demanding industrial applications. The 4 lobe design of this hand knob (also known as a clamping knob) ensures positive palm and finger grip, each and every time. Available in a clear anodized finish, and features a blank hub with centering spot. Contact one of our sales engineers concerning specialty bores, taps and set screws. Inch and metric versions available.
1 - 20 of 20 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Dimension A (mm)

Dimension B (mm)

Dimension C (mm)

Dimension D (mm)

Thread Size

Thread Type

Reamed Diameter (mm)

Reamed Diameter

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Thread Size

Reamed Diameter

Drawings

N/A 25 mm N/A 22 mm N/A 13 mm N/A 13 mm N/A N/A Solid

N/A 25 mm N/A 22 mm N/A 13 mm N/A 13 mm N/A M6 N/A

N/A 25 mm N/A 22 mm N/A 13 mm N/A 13 mm N/A M6 N/A

N/A 25 mm N/A 22 mm N/A 13 mm N/A 13 mm N/A N/A 6 mm

N/A 38 mm N/A 22 mm N/A 16 mm N/A 10 mm N/A N/A Solid

N/A 38 mm N/A 22 mm N/A 16 mm N/A 10 mm N/A M8 N/A

N/A 38 mm N/A 22 mm N/A 16 mm N/A 10 mm N/A M8 N/A

N/A 38 mm N/A 22 mm N/A 16 mm N/A 10 mm N/A N/A 8 mm

N/A 51 mm N/A 25 mm N/A 30 mm N/A 13 mm N/A N/A Solid

N/A 51 mm N/A 25 mm N/A 30 mm N/A 13 mm N/A M10 N/A

N/A 51 mm N/A 25 mm N/A 30 mm N/A 13 mm N/A M10 N/A

N/A 51 mm N/A 25 mm N/A 30 mm N/A 13 mm N/A N/A 10 mm

N/A 64 mm N/A 29 mm N/A 25 mm N/A 14 mm N/A N/A Solid

N/A 64 mm N/A 29 mm N/A 25 mm N/A 14 mm N/A M12 N/A

N/A 64 mm N/A 29 mm N/A 25 mm N/A 14 mm N/A M12 N/A

N/A 64 mm N/A 29 mm N/A 25 mm N/A 14 mm N/A N/A 12 mm

N/A 76 mm N/A 32 mm N/A 32 mm N/A 16 mm N/A N/A Solid

N/A 76 mm N/A 32 mm N/A 32 mm N/A 16 mm N/A M16 N/A

N/A 76 mm N/A 32 mm N/A 32 mm N/A 16 mm N/A M16 N/A

N/A 76 mm N/A 32 mm N/A 32 mm N/A 16 mm N/A N/A 16 mm
