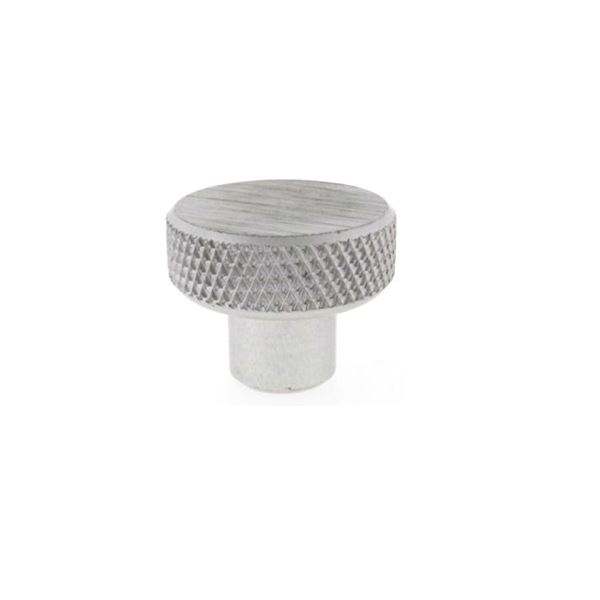

Precision Knurled Control Knobs without Handle
Metal Knobs
JBF National's knurled control knobs are manufactured from the highest quality aluminum and stainless steel. The knurled rim provides positive hand grip and makes adjustments quick and simple in even with the oiliest or wettest of hands. Aluminum and stainless versions available.
Item # |
Reamed Diameter |
Knob Diameter (A) |
Total Length (B) |
Hub Diameter (C) |
Knurled Width (D) |
Hole Depth (E) |
Drawings |
|---|---|---|---|---|---|---|---|
| 1KCK-1160 1KCK-1160/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A 5/8 in |
Drawings
 |
| 1KCK-1161 1KCK-1161/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A |
Drawings
|
| 1KCK-1162 1KCK-1162/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 1/4-20 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A 5/8 in |
Drawings
|
| 1KCK-1163 1KCK-1163/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 1/4-28 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A 5/8 in |
Drawings
|
| 1KCK-1164 1KCK-1164/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 5/16-18 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A 5/8 in |
Drawings
|
| 1KCK-1165 1KCK-1165/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 5/16-24 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A 5/8 in |
Drawings
|
| 2KCK-1166 2KCK-1166/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 2KCK-1167 2KCK-1167/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A |
Drawings
|
| 2KCK-1168 2KCK-1168/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 3/8-16 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 2KCK-1169 2KCK-1169/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 3/8-24 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 2KCK-1170 2KCK-1170/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 1/2-13 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 2KCK-1171 2KCK-1171/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 1/2-20 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 3KCK-1172 3KCK-1172/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 3KCK-1173 3KCK-1173/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A |
Drawings
|
| 3KCK-1174 3KCK-1174/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 5/8-11 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 3KCK-1175 3KCK-1175/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 5/8-18 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 3KCK-1176 3KCK-1176/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 3/4-20 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 3KCK-1177 3KCK-1177/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 3/4-16 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 1KCK-1160SS 1KCK-1160SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A 5/8 in |
Drawings
|
| 1KCK-1161SS 1KCK-1161SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A |
Drawings
|
| 1KCK-1162SS 1KCK-1162SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 1/4-20 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A 5/8 in |
Drawings
|
| 1KCK-1163SS 1KCK-1163SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 1/4-28 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A 5/8 in |
Drawings
|
| 1KCK-1164SS 1KCK-1164SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 5/16-18 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A 5/8 in |
Drawings
|
| 1KCK-1165SS 1KCK-1165SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 5/16-24 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 13/16 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 3/8 in | Hole Depth (E) N/A 5/8 in |
Drawings
|
| 2KCK-1166SS 2KCK-1166SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 2KCK-1167SS 2KCK-1167SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A |
Drawings
|
| 2KCK-1168SS 2KCK-1168SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 3/8-16 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 2KCK-1169SS 2KCK-1169SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 3/8-24 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 2KCK-1170SS 2KCK-1170SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 1/2-13 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 2KCK-1171SS 2KCK-1171SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 1/2-20 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 13/16 in | Knurled Width (D) N/A 9/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 3KCK-1172SS 3KCK-1172SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 3KCK-1173SS 3KCK-1173SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A |
Drawings
|
| 3KCK-1174SS 3KCK-1174SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 5/8-11 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 3KCK-1175SS 3KCK-1175SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 5/8-18 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 3KCK-1176SS 3KCK-1176SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 3/4-20 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
| 3KCK-1177SS 3KCK-1177SS/Asset/Precision-Knurled-Control-Knob-A.jpg | Reamed Diameter N/A 3/4-16 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-1/4 in | Hub Diameter (C) N/A 1-1/4 in | Knurled Width (D) N/A 11/16 in | Hole Depth (E) N/A 7/8 in |
Drawings
|
