Reamed Knurled Control Knobs without Set Screw
Metal Knobs

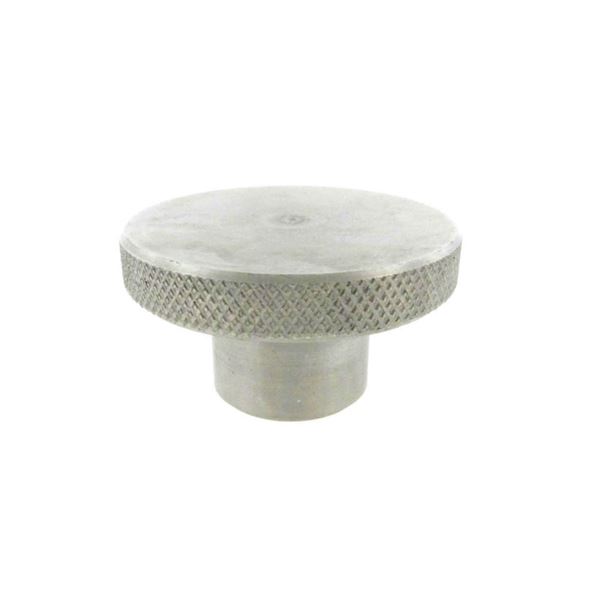

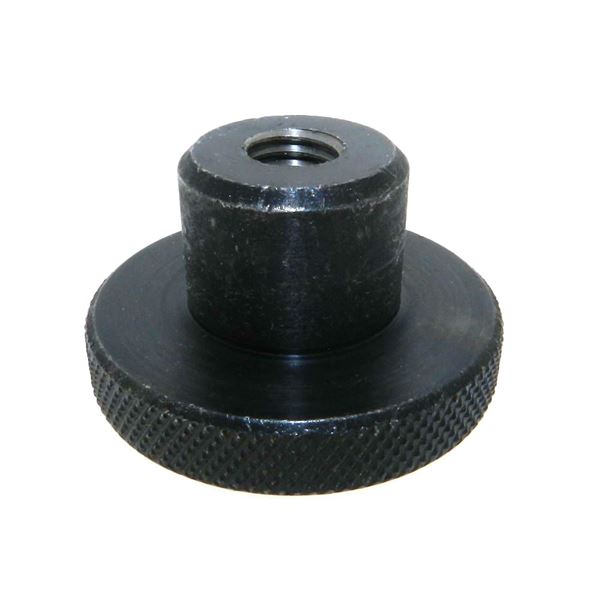

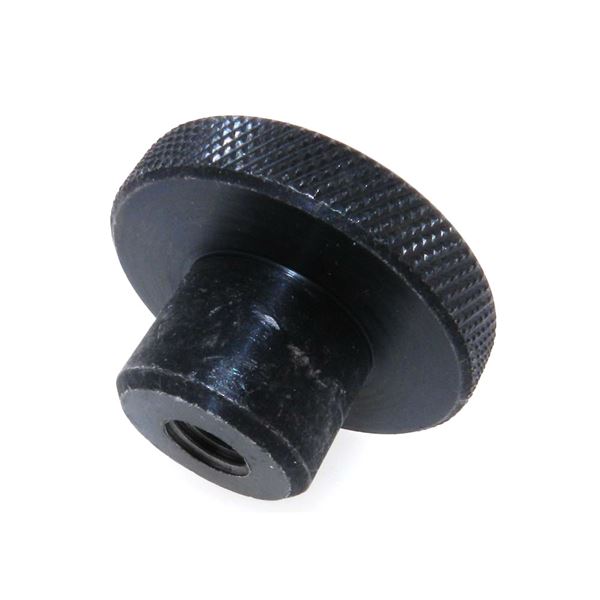

JBF National's reamed knurled control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands, and comes reamed without set screw.
Item # |
Reamed Diameter |
Knob Diameter (A) |
Total Length (B) |
Hub Diameter (C) |
Knurled Width (D) |
Reamed Depth (E) |
Material |
Drawings |
|---|---|---|---|---|---|---|---|---|
| 1KCK-1214 1KCK-1214/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 3/16 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 3/8 in | Material N/A Steel |
Drawings
 |
| 1KCK-1215 1KCK-1215/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 3/8 in | Material N/A Steel |
Drawings
|
| 2KCK-1216 2KCK-1216/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 1/2 in | Material N/A Steel |
Drawings
|
| 2KCK-1217 2KCK-1217/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 1/2 in | Material N/A Steel |
Drawings
|
| 3KCK-1218 3KCK-1218/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Reamed Depth (E) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 3KCK-1219 3KCK-1219/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Reamed Depth (E) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 4KCK-1220 4KCK-1220/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 4KCK-1221 4KCK-1221/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 5KCK-1222 5KCK-1222/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Reamed Depth (E) N/A 3/4 in | Material N/A Steel |
Drawings
|
| 5KCK-1223 5KCK-1223/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 3/4 in | Material N/A Steel |
Drawings
|
| 6KCK-1224 6KCK-1224/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Reamed Depth (E) N/A 1 in | Material N/A Steel |
Drawings
|
| 6KCK-1225 6KCK-1225/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 3/4 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Reamed Depth (E) N/A 1 in | Material N/A Steel |
Drawings
|
| 1KCK-1214SS 1KCK-1214SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 3/16 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 3/8 in | Material N/A Stainless Steel |
Drawings
|
| 1KCK-1215SS 1KCK-1215SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 3/8 in | Material N/A Stainless Steel |
Drawings
|
| 2KCK-1216SS 2KCK-1216SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 1/2 in | Material N/A Stainless Steel |
Drawings
|
| 2KCK-1217SS 2KCK-1217SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 1/2 in | Material N/A Stainless Steel |
Drawings
|
| 3KCK-1218SS 3KCK-1218SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Reamed Depth (E) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
| 3KCK-1219SS 3KCK-1219SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Reamed Depth (E) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
| 4KCK-1220SS 4KCK-1220SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
| 4KCK-1221SS 4KCK-1221SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
| 5KCK-1222SS 5KCK-1222SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Reamed Depth (E) N/A 3/4 in | Material N/A Stainless Steel |
Drawings
|
| 5KCK-1223SS 5KCK-1223SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 3/4 in | Material N/A Stainless Steel |
Drawings
|
| 6KCK-1224SS 6KCK-1224SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Reamed Depth (E) N/A 1 in | Material N/A Stainless Steel |
Drawings
|
| 6KCK-1225SS 6KCK-1225SS/Asset/Knurled-Hand-Knob-SS-Tapped.jpg | Reamed Diameter N/A 3/4 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Reamed Depth (E) N/A 1 in | Material N/A Stainless Steel |
Drawings
|
