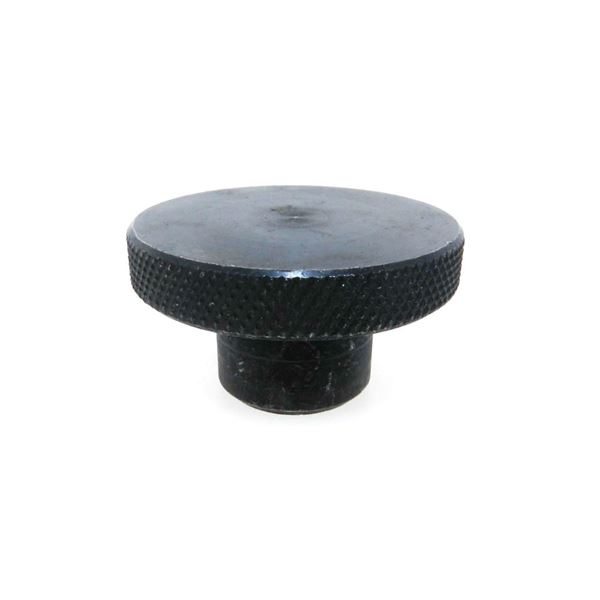

Reamed Knurled Control Knobs with Set Screw
Metal Knobs
JBF National's reamed knurled control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands, and comes reamed with set screw.
Item # |
Reamed Diameter |
Knob Diameter (A) |
Total Length (B) |
Hub Diameter (C) |
Knurled Width (D) |
Reamed Depth (E) |
Material |
Drawings |
|---|---|---|---|---|---|---|---|---|
| 1KCK-1202 1KCK-1202/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 3/16 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 3/8 in | Material N/A Steel |
Drawings
 |
| 1KCK-1203 1KCK-1203/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 3/8 in | Material N/A Steel |
Drawings
|
| 2KCK-1204 2KCK-1204/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 1/2 in | Material N/A Steel |
Drawings
|
| 2KCK-1205 2KCK-1205/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 1/2 in | Material N/A Steel |
Drawings
|
| 3KCK-1206 3KCK-1206/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Reamed Depth (E) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 3KCK-1207 3KCK-1207/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Reamed Depth (E) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 4KCK-1208 4KCK-1208/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 4KCK-1209 4KCK-1209/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 5KCK-1210 5KCK-1210/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Reamed Depth (E) N/A 3/4 in | Material N/A Steel |
Drawings
|
| 5KCK-1211 5KCK-1211/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 3/4 in | Material N/A Steel |
Drawings
|
| 6KCK-1212 6KCK-1212/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Reamed Depth (E) N/A 1 in | Material N/A Steel |
Drawings
|
| 6KCK-1213 6KCK-1213/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 3/4 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Reamed Depth (E) N/A 1 in | Material N/A Steel |
Drawings
|
| 1KCK-1202SS 1KCK-1202SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 3/16 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 3/8 in | Material N/A Stainless Steel |
Drawings
|
| 1KCK-1203SS 1KCK-1203SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 3/8 in | Material N/A Stainless Steel |
Drawings
|
| 2KCK-1204SS 2KCK-1204SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 1/2 in | Material N/A Stainless Steel |
Drawings
|
| 2KCK-1205SS 2KCK-1205SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Reamed Depth (E) N/A 1/2 in | Material N/A Stainless Steel |
Drawings
|
| 3KCK-1206SS 3KCK-1206SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Reamed Depth (E) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
| 3KCK-1207SS 3KCK-1207SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Reamed Depth (E) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
| 4KCK-1208SS 4KCK-1208SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
| 4KCK-1209SS 4KCK-1209SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
| 5KCK-1210SS 5KCK-1210SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Reamed Depth (E) N/A 3/4 in | Material N/A Stainless Steel |
Drawings
|
| 5KCK-1211SS 5KCK-1211SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 3/8 in | Reamed Depth (E) N/A 3/4 in | Material N/A Stainless Steel |
Drawings
|
| 6KCK-1212SS 6KCK-1212SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Reamed Depth (E) N/A 1 in | Material N/A Stainless Steel |
Drawings
|
| 6KCK-1213SS 6KCK-1213SS/Asset/Knurled-Hand-Knob-Tapped.jpg | Reamed Diameter N/A 3/4 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Reamed Depth (E) N/A 1 in | Material N/A Stainless Steel |
Drawings
|
