Reamed Through Knurled Control Knobs without Set Screw
Metal Knobs
Knurled Control Knobs - Reamed Through without Set Screw

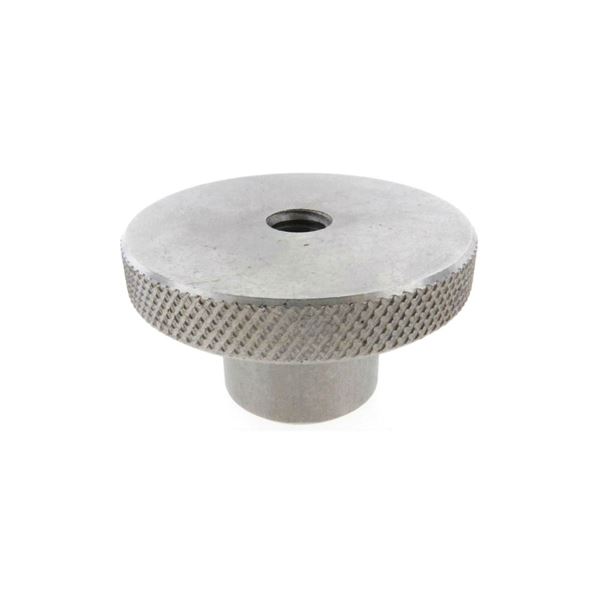

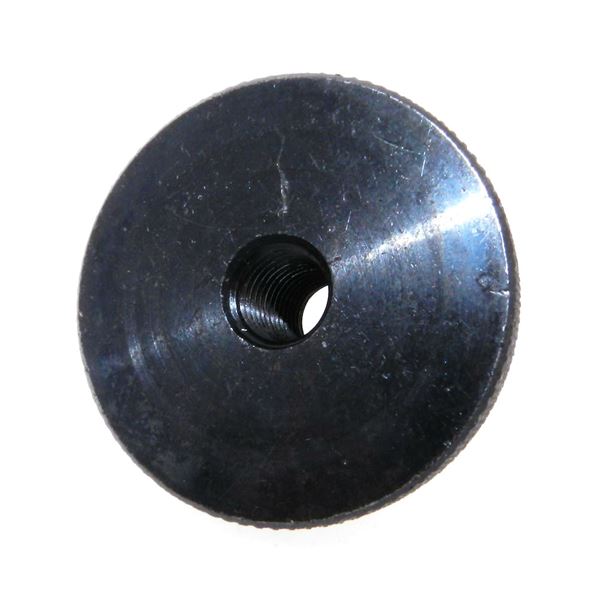

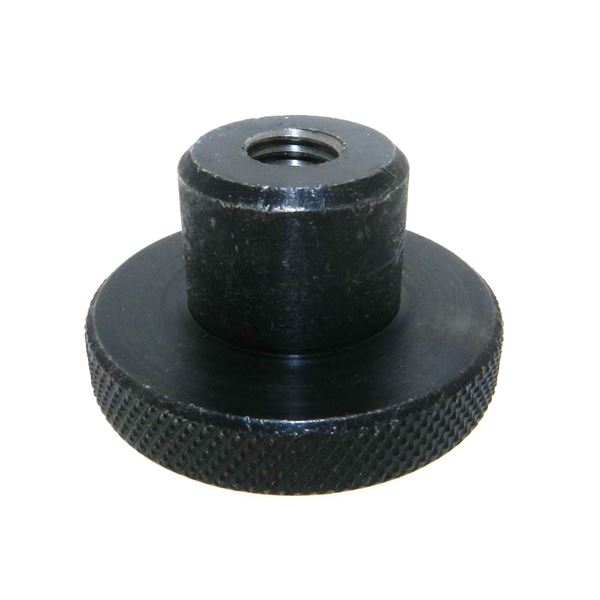

JBF National's knurled reamed through control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands, and comes reamed through without set screw.
JBF National's knurled reamed through control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands, and comes reamed through without set screw.
Item # |
Reamed Diameter |
Knob Diameter (A) |
Total Length (B) |
Hub Diameter (C) |
Knurled Width (D) |
Material |
Drawings |
|---|---|---|---|---|---|---|---|
| 1KCK-1190 1KCK-1190/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 3/16 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Material N/A Steel |
Drawings
 |
| 1KCK-1191 1KCK-1191/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Material N/A Steel |
Drawings
|
| 2KCK-1192 2KCK-1192/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Material N/A Steel |
Drawings
|
| 2KCK-1193 2KCK-1193/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Material N/A Steel |
Drawings
|
| 3KCK-1194 3KCK-1194/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Material N/A Steel |
Drawings
|
| 3KCK-1195 3KCK-1195/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Material N/A Steel |
Drawings
|
| 4KCK-1196 4KCK-1196/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Material N/A Steel |
Drawings
|
| 4KCK-1197 4KCK-1197/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Material N/A Steel |
Drawings
|
| 5KCK-1198 5KCK-1198/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Material N/A Steel |
Drawings
|
| 5KCK-1199 5KCK-1199/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 3/8 in | Material N/A Steel |
Drawings
|
| 6KCK-1200 6KCK-1200/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 6KCK-1201 6KCK-1201/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 3/4 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 1KCK-1190SS 1KCK-1190SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 3/16 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Material N/A Stainless Steel |
Drawings
|
| 1KCK-1191SS 1KCK-1191SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Material N/A Stainless Steel |
Drawings
|
| 2KCK-1192SS 2KCK-1192SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Material N/A Stainless Steel |
Drawings
|
| 2KCK-1193SS 2KCK-1193SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Material N/A Stainless Steel |
Drawings
|
| 3KCK-1194SS 3KCK-1194SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Material N/A Stainless Steel |
Drawings
|
| 3KCK-1195SS 3KCK-1195SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Material N/A Stainless Steel |
Drawings
|
| 4KCK-1196SS 4KCK-1196SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Material N/A Stainless Steel |
Drawings
|
| 4KCK-1197SS 4KCK-1197SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Material N/A Stainless Steel |
Drawings
|
| 5KCK-1198SS 5KCK-1198SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Material N/A Stainless Steel |
Drawings
|
| 5KCK-1199SS 5KCK-1199SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 3/8 in | Material N/A Stainless Steel |
Drawings
|
| 6KCK-1200SS 6KCK-1200SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
| 6KCK-1201SS 6KCK-1201SS/Asset/Knurled-Hand-Knob-SS-Tapped-Thru.jpg | Reamed Diameter N/A 3/4 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
