Reamed Through Knurled Control Knobs with Set Screw
Metal Knobs

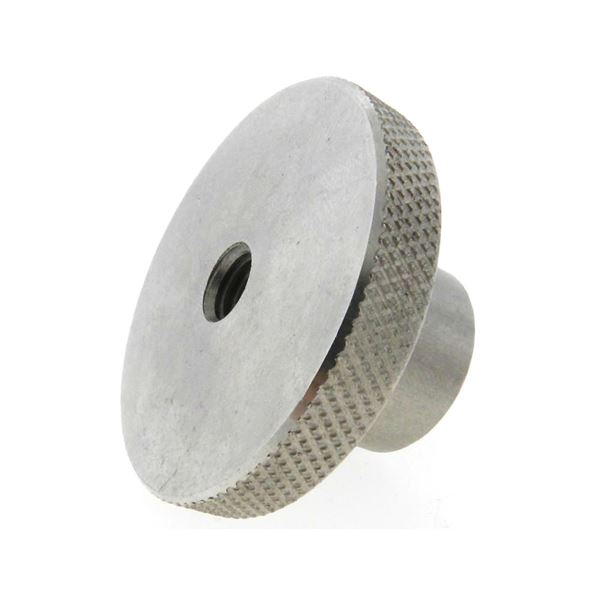

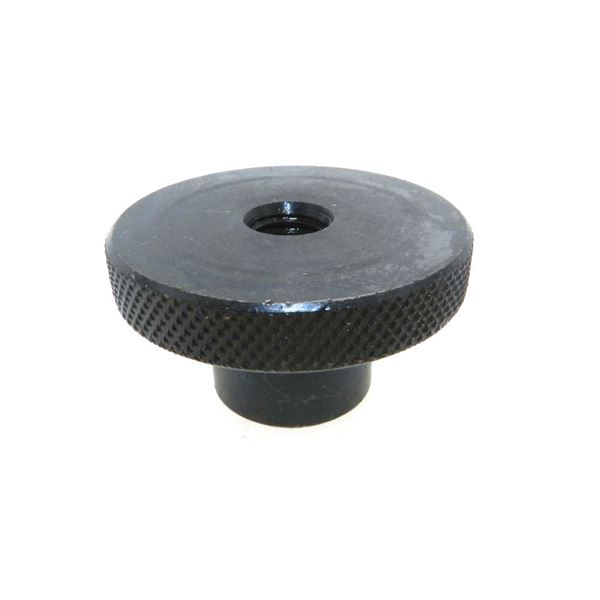

JBF National's knurled reamed through control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands, and comes reamed through with set screw.
Item # |
Reamed Diameter |
Knob Diameter (A) |
Total Length (B) |
Hub Diameter (C) |
Knurled Width (D) |
Material |
Drawings |
|---|---|---|---|---|---|---|---|
| 1KCK-1178 1KCK-1178/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 3/16 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Material N/A Steel |
Drawings
 |
| 1KCK-1179 1KCK-1179/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Material N/A Steel |
Drawings
|
| 2KCK-1180 2KCK-1180/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Material N/A Steel |
Drawings
|
| 2KCK-1181 2KCK-1181/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Material N/A Steel |
Drawings
|
| 3KCK-1182 3KCK-1182/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Material N/A Steel |
Drawings
|
| 3KCK-1183 3KCK-1183/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Material N/A Steel |
Drawings
|
| 4KCK-1184 4KCK-1184/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Material N/A Steel |
Drawings
|
| 4KCK-1185 4KCK-1185/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Material N/A Steel |
Drawings
|
| 5KCK-1186 5KCK-1186/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Material N/A Steel |
Drawings
|
| 5KCK-1187 5KCK-1187/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 3/8 in | Material N/A Steel |
Drawings
|
| 6KCK-1188 6KCK-1188/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 6KCK-1189 6KCK-1189/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 3/4 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Material N/A Steel |
Drawings
|
| 1KCK-1178SS 1KCK-1178SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 3/16 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Material N/A Stainless Steel |
Drawings
|
| 1KCK-1179SS 1KCK-1179SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 3/4 in | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Material N/A Stainless Steel |
Drawings
|
| 2KCK-1180SS 2KCK-1180SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 1/4 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Material N/A Stainless Steel |
Drawings
|
| 2KCK-1181SS 2KCK-1181SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1 in | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Material N/A Stainless Steel |
Drawings
|
| 3KCK-1182SS 3KCK-1182SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 5/16 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Material N/A Stainless Steel |
Drawings
|
| 3KCK-1183SS 3KCK-1183SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 1-1/2 in | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Material N/A Stainless Steel |
Drawings
|
| 4KCK-1184SS 4KCK-1184SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 3/8 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Material N/A Stainless Steel |
Drawings
|
| 4KCK-1185SS 4KCK-1185SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2 in | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Material N/A Stainless Steel |
Drawings
|
| 5KCK-1186SS 5KCK-1186SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 1/2 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Material N/A Stainless Steel |
Drawings
|
| 5KCK-1187SS 5KCK-1187SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 2-1/2 in | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 3/8 in | Material N/A Stainless Steel |
Drawings
|
| 6KCK-1188SS 6KCK-1188SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 5/8 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
| 6KCK-1189SS 6KCK-1189SS/Asset/Knurled-Hand-Knob-Tapped-Thru.jpg | Reamed Diameter N/A 3/4 in | Knob Diameter (A) N/A 3 in | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in | Material N/A Stainless Steel |
Drawings
|
