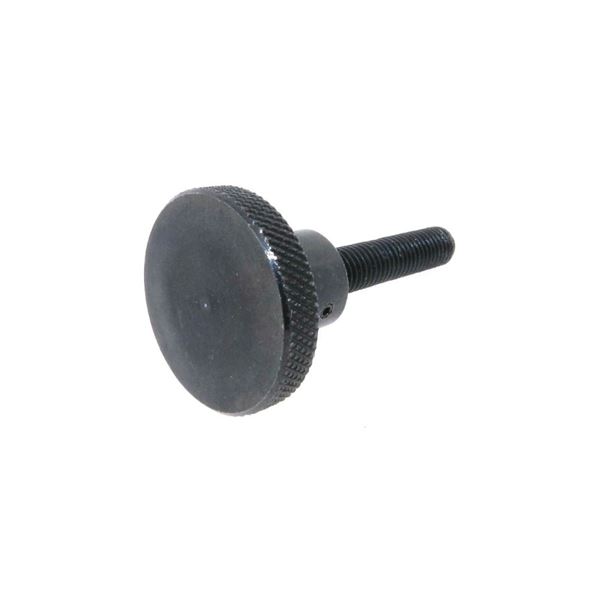

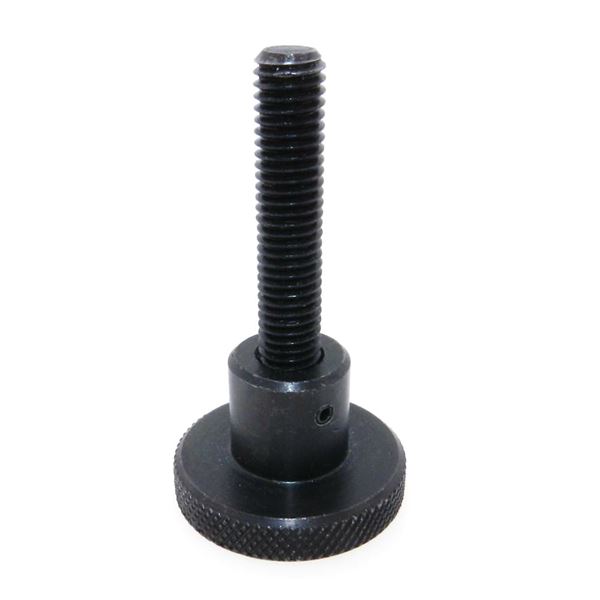

Studded Assembled Imperial Knurled Control Knobs
Metal Knobs

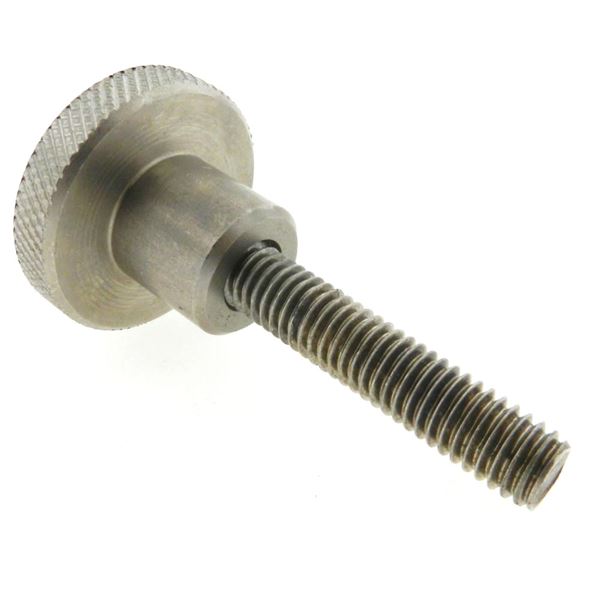

JBF National's knurled control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands. Stud available in a wide variety of inch and metric stud lengths.
Item # |
Knob Diameter (A) |
Thread Size |
Total Length (B) |
Hub Diameter (C) |
Knurled Width (D) |
Stud Length (E) |
Drawings |
|---|---|---|---|---|---|---|---|
| 1KCK-1232 1KCK-1232/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-24 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1/2 in |
Drawings
 |
| 1KCK-1233 1KCK-1233/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-32 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1/2 in |
Drawings
|
| 1KCK-1234 1KCK-1234/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-24 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1 in |
Drawings
|
| 1KCK-1235 1KCK-1235/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-32 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1 in |
Drawings
|
| 1KCK-1236 1KCK-1236/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3/4 in |
Drawings
|
| 1KCK-1237 1KCK-1237/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3/4 in |
Drawings
|
| 1KCK-1238 1KCK-1238/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-1/4 in |
Drawings
|
| 1KCK-1239 1KCK-1239/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-1/4 in |
Drawings
|
| 2KCK-1240 2KCK-1240/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 2KCK-1241 2KCK-1241/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 2KCK-1242 2KCK-1242/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3 in |
Drawings
|
| 2KCK-1243 2KCK-1243/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3 in |
Drawings
|
| 2KCK-1244 2KCK-1244/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 2KCK-1245 2KCK-1245/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 2KCK-1246 2KCK-1246/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3 in |
Drawings
|
| 2KCK-1247 2KCK-1247/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3 in |
Drawings
|
| 3KCK-1248 3KCK-1248/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 3KCK-1249 3KCK-1249/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 3KCK-1250 3KCK-1250/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 3KCK-1251 3KCK-1251/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 3KCK-1252 3KCK-1252/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 3KCK-1253 3KCK-1253/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 3KCK-1254 3KCK-1254/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 3KCK-1255 3KCK-1255/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 4KCK-1256 4KCK-1256/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 4KCK-1257 4KCK-1257/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 4KCK-1258 4KCK-1258/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 3 in |
Drawings
|
| 4KCK-1259 4KCK-1259/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 3 in |
Drawings
|
| 4KCK-1260 4KCK-1260/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 4KCK-1261 4KCK-1261/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 4KCK-1262 4KCK-1262/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 3 in |
Drawings
|
| 4KCK-1263 4KCK-1263/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 3 in |
Drawings
|
| 5KCK-1264 5KCK-1264/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 5KCK-1265 5KCK-1265/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 5KCK-1266 5KCK-1266/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 5KCK-1267 5KCK-1267/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 5KCK-1268 5KCK-1268/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-11 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 5KCK-1269 5KCK-1269/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-18 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 5KCK-1270 5KCK-1270/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-11 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 5KCK-1271 5KCK-1271/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-18 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 1KCK-1232SS 1KCK-1232SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-24 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1/2 in |
Drawings
|
| 1KCK-1233SS 1KCK-1233SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-32 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1/2 in |
Drawings
|
| 1KCK-1234SS 1KCK-1234SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-24 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1 in |
Drawings
|
| 1KCK-1235SS 1KCK-1235SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-32 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1 in |
Drawings
|
| 1KCK-1236SS 1KCK-1236SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3/4 in |
Drawings
|
| 1KCK-1237SS 1KCK-1237SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3/4 in |
Drawings
|
| 1KCK-1238SS 1KCK-1238SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-1/4 in |
Drawings
|
| 1KCK-1239SS 1KCK-1239SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-1/4 in |
Drawings
|
| 2KCK-1240SS 2KCK-1240SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 2KCK-1241SS 2KCK-1241SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 2KCK-1242SS 2KCK-1242SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3 in |
Drawings
|
| 2KCK-1243SS 2KCK-1243SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3 in |
Drawings
|
| 2KCK-1244SS 2KCK-1244SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 2KCK-1245SS 2KCK-1245SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 2KCK-1246SS 2KCK-1246SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3 in |
Drawings
|
| 2KCK-1247SS 2KCK-1247SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in | Stud Length (E) N/A 3 in |
Drawings
|
| 3KCK-1248SS 3KCK-1248SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 3KCK-1249SS 3KCK-1249SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 3KCK-1250SS 3KCK-1250SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 3KCK-1251SS 3KCK-1251SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 3KCK-1252SS 3KCK-1252SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 3KCK-1253SS 3KCK-1253SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 3KCK-1254SS 3KCK-1254SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 3KCK-1255SS 3KCK-1255SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 4KCK-1256SS 4KCK-1256SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 4KCK-1257SS 4KCK-1257SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 4KCK-1258SS 4KCK-1258SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 3 in |
Drawings
|
| 4KCK-1259SS 4KCK-1259SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 3 in |
Drawings
|
| 4KCK-1260SS 4KCK-1260SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 4KCK-1261SS 4KCK-1261SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 4KCK-1262SS 4KCK-1262SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 3 in |
Drawings
|
| 4KCK-1263SS 4KCK-1263SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in | Stud Length (E) N/A 3 in |
Drawings
|
| 5KCK-1264SS 5KCK-1264SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 5KCK-1265SS 5KCK-1265SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 5KCK-1266SS 5KCK-1266SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 5KCK-1267SS 5KCK-1267SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 5KCK-1268SS 5KCK-1268SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-11 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 5KCK-1269SS 5KCK-1269SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-18 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 1-3/4 in |
Drawings
|
| 5KCK-1270SS 5KCK-1270SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-11 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 3 in |
Drawings
|
| 5KCK-1271SS 5KCK-1271SS/Asset/Knurled-Hand-Knob-Stud-1.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-18 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in | Stud Length (E) N/A 3 in |
Drawings
|
