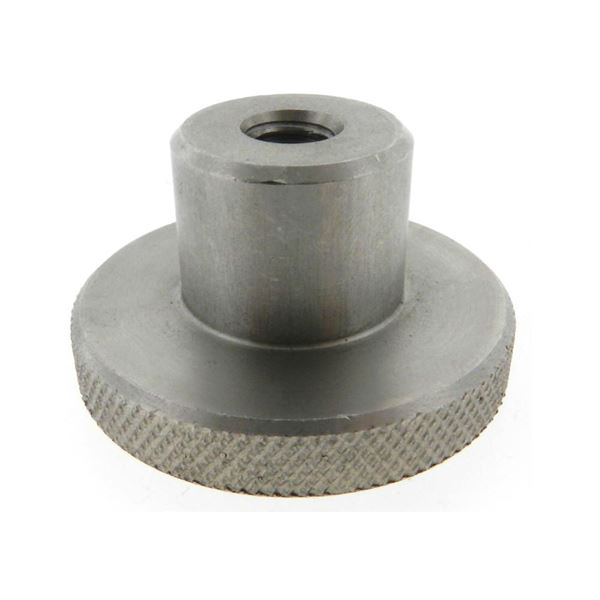

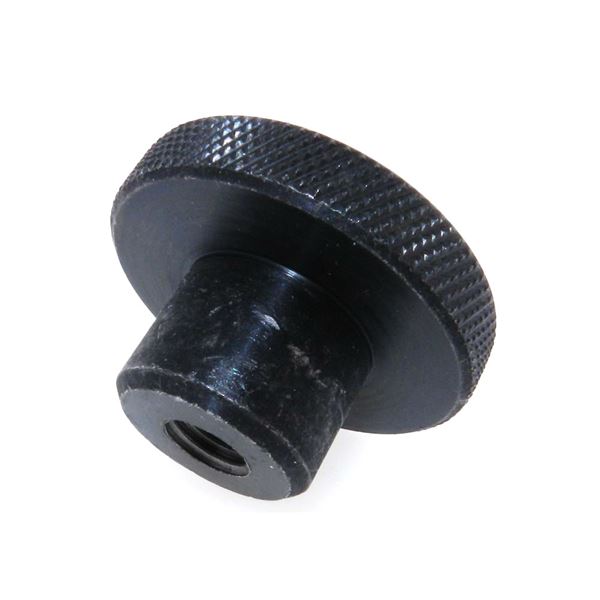

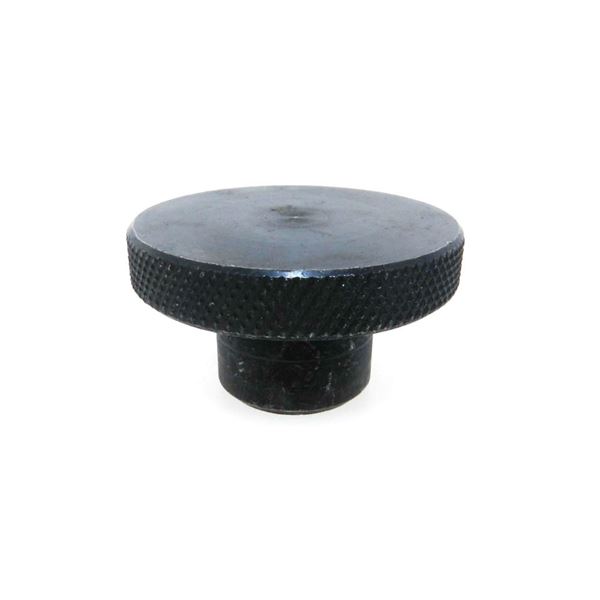

JBF National's knurled control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands. This model comes tapped in a wide variety of inch and metric thread sizes.
1 - 24 of 24 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Knob Diameter (A) (mm)

Thread Size

Total Length (B) (mm)

Hub Diameter (C) (mm)

Knurled Width (D) (mm)

Thread Depth (E) (mm)

Material

Item #

Knob Diameter (A)

Thread Size

Total Length (B)

Hub Diameter (C)

Knurled Width (D)

Thread Depth (E)

Drawings

N/A 19 mm N/A M5 N/A 16 mm N/A 13 mm N/A 6 mm N/A 10 mm
N/A 19 mm N/A M6 N/A 16 mm N/A 13 mm N/A 6 mm N/A 10 mm
N/A 25 mm N/A M6 N/A 19 mm N/A 16 mm N/A 6 mm N/A 13 mm
N/A 25 mm N/A M8 N/A 19 mm N/A 16 mm N/A 6 mm N/A 13 mm
N/A 38 mm N/A M8 N/A 25 mm N/A 19 mm N/A 8 mm N/A 16 mm
N/A 38 mm N/A M10 N/A 25 mm N/A 19 mm N/A 8 mm N/A 16 mm
N/A 51 mm N/A M10 N/A 29 mm N/A 25 mm N/A 10 mm N/A 16 mm
N/A 51 mm N/A M12 N/A 29 mm N/A 25 mm N/A 10 mm N/A 16 mm
N/A 64 mm N/A M12 N/A 38 mm N/A 38 mm N/A 14 mm N/A 19 mm
N/A 64 mm N/A M16 N/A 38 mm N/A 38 mm N/A 14 mm N/A 19 mm
N/A 76 mm N/A M16 N/A 44 mm N/A 44 mm N/A 16 mm N/A 25 mm
N/A 76 mm N/A M20 N/A 44 mm N/A 44 mm N/A 16 mm N/A 25 mm
N/A 19 mm N/A M5 N/A 16 mm N/A 13 mm N/A 6 mm N/A 10 mm
N/A 19 mm N/A M6 N/A 16 mm N/A 13 mm N/A 6 mm N/A 10 mm
N/A 25 mm N/A M6 N/A 19 mm N/A 16 mm N/A 6 mm N/A 13 mm
N/A 25 mm N/A M8 N/A 19 mm N/A 16 mm N/A 6 mm N/A 13 mm
N/A 38 mm N/A M8 N/A 25 mm N/A 19 mm N/A 8 mm N/A 16 mm
N/A 38 mm N/A M10 N/A 25 mm N/A 19 mm N/A 8 mm N/A 16 mm
N/A 51 mm N/A M10 N/A 29 mm N/A 25 mm N/A 10 mm N/A 16 mm
N/A 51 mm N/A M12 N/A 29 mm N/A 25 mm N/A 10 mm N/A 16 mm
N/A 64 mm N/A M12 N/A 38 mm N/A 38 mm N/A 14 mm N/A 19 mm
N/A 64 mm N/A M16 N/A 38 mm N/A 38 mm N/A 14 mm N/A 19 mm
N/A 76 mm N/A M16 N/A 44 mm N/A 44 mm N/A 16 mm N/A 25 mm
N/A 76 mm N/A M20 N/A 44 mm N/A 44 mm N/A 16 mm N/A 25 mm
