Tapped Through Imperial Knurled Control Knobs
Metal Knobs

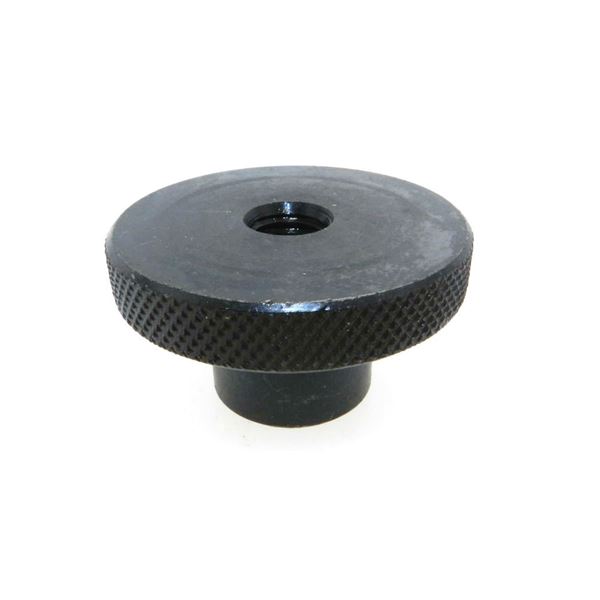

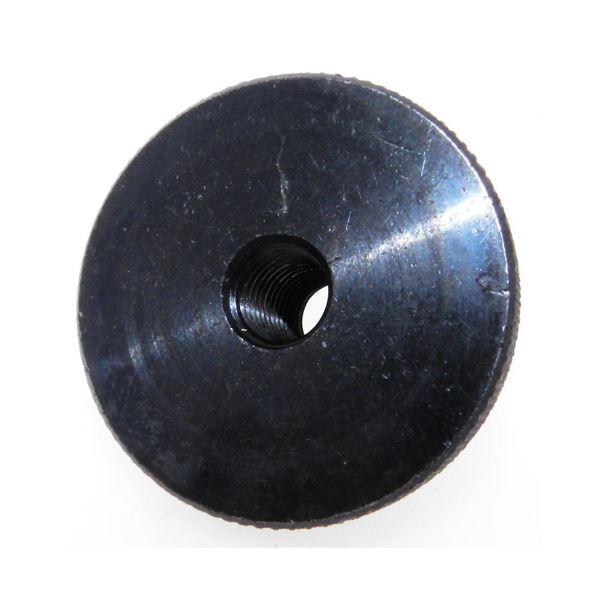

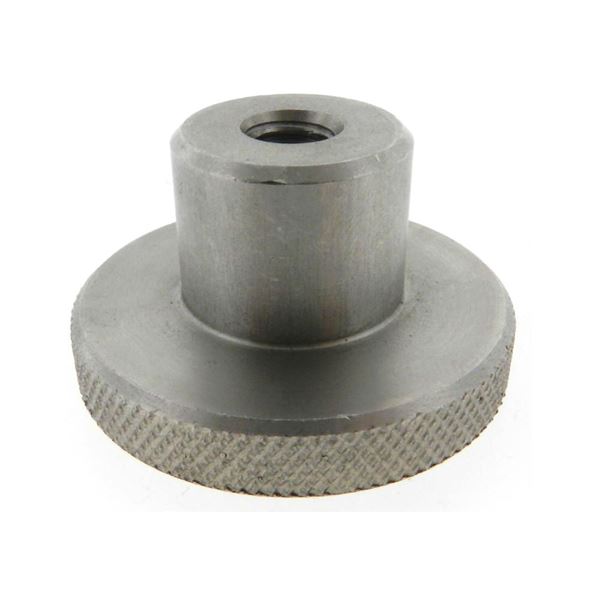

JBF National’s knurled control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands. The tapped through design is ideal for quick and easy fixation, and comes in a wide variety of inch and metric thread sizes.
Item # |
Knob Diameter (A) |
Thread Size |
Total Length (B) |
Hub Diameter (C) |
Knurled Width (D) |
Drawings |
|---|---|---|---|---|---|---|
| 1KCK-1328 1KCK-1328/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-24 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in |
Drawings
 |
| 1KCK-1329 1KCK-1329/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-32 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 1KCK-1330 1KCK-1330/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 1KCK-1331 1KCK-1331/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 2KCK-1332 2KCK-1332/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 2KCK-1333 2KCK-1333/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 2KCK-1334 2KCK-1334/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 2KCK-1335 2KCK-1335/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 3KCK-1336 3KCK-1336/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in |
Drawings
|
| 3KCK-1337 3KCK-1337/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in |
Drawings
|
| 3KCK-1338 3KCK-1338/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in |
Drawings
|
| 3KCK-1339 3KCK-1339/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in |
Drawings
|
| 4KCK-1340 4KCK-1340/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in |
Drawings
|
| 4KCK-1341 4KCK-1341/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in |
Drawings
|
| 4KCK-1342 4KCK-1342/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in |
Drawings
|
| 4KCK-1343 4KCK-1343/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in |
Drawings
|
| 5KCK-1344 5KCK-1344/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in |
Drawings
|
| 5KCK-1345 5KCK-1345/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in |
Drawings
|
| 5KCK-1346 5KCK-1346/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-11 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in |
Drawings
|
| 5KCK-1347 5KCK-1347/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-18 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in |
Drawings
|
| 6KCK-1348 6KCK-1348/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3 in | Thread Size N/A 5/8-11 | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in |
Drawings
|
| 6KCK-1349 6KCK-1349/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3 in | Thread Size N/A 5/8-18 | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in |
Drawings
|
| 6KCK-1350 6KCK-1350/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3 in | Thread Size N/A 3/4-10 | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in |
Drawings
|
| 6KCK-1351 6KCK-1351/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3 in | Thread Size N/A 3/4-16 | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in |
Drawings
|
| 1KCK-1328SS 1KCK-1328SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-24 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 1KCK-1329SS 1KCK-1329SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 10-32 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 1KCK-1330SS 1KCK-1330SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 1KCK-1331SS 1KCK-1331SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3/4 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 5/8 in | Hub Diameter (C) N/A 1/2 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 2KCK-1332SS 2KCK-1332SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-20 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 2KCK-1333SS 2KCK-1333SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 1/4-28 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 2KCK-1334SS 2KCK-1334SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 2KCK-1335SS 2KCK-1335SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 3/4 in | Hub Diameter (C) N/A 5/8 in | Knurled Width (D) N/A 1/4 in |
Drawings
|
| 3KCK-1336SS 3KCK-1336SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-18 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in |
Drawings
|
| 3KCK-1337SS 3KCK-1337SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 5/16-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in |
Drawings
|
| 3KCK-1338SS 3KCK-1338SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in |
Drawings
|
| 3KCK-1339SS 3KCK-1339SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 1-1/2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1 in | Hub Diameter (C) N/A 3/4 in | Knurled Width (D) N/A 5/16 in |
Drawings
|
| 4KCK-1340SS 4KCK-1340SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-16 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in |
Drawings
|
| 4KCK-1341SS 4KCK-1341SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 3/8-24 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in |
Drawings
|
| 4KCK-1342SS 4KCK-1342SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in |
Drawings
|
| 4KCK-1343SS 4KCK-1343SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/8 in | Hub Diameter (C) N/A 1 in | Knurled Width (D) N/A 3/8 in |
Drawings
|
| 5KCK-1344SS 5KCK-1344SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-13 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in |
Drawings
|
| 5KCK-1345SS 5KCK-1345SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 1/2-20 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in |
Drawings
|
| 5KCK-1346SS 5KCK-1346SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-11 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in |
Drawings
|
| 5KCK-1347SS 5KCK-1347SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 2-1/2 in | Thread Size N/A 5/8-18 | Total Length (B) N/A 1-1/2 in | Hub Diameter (C) N/A 1.50 in | Knurled Width (D) N/A 9/16 in |
Drawings
|
| 6KCK-1348SS 6KCK-1348SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3 in | Thread Size N/A 5/8-11 | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in |
Drawings
|
| 6KCK-1349SS 6KCK-1349SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3 in | Thread Size N/A 5/8-18 | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in |
Drawings
|
| 6KCK-1350SS 6KCK-1350SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3 in | Thread Size N/A 3/4-10 | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in |
Drawings
|
| 6KCK-1351SS 6KCK-1351SS/Asset/Knurled-Hand-Knob-Tapped---Thru_0.jpg | Knob Diameter (A) N/A 3 in | Thread Size N/A 3/4-16 | Total Length (B) N/A 1-3/4 in | Hub Diameter (C) N/A 1-3/4 in | Knurled Width (D) N/A 5/8 in |
Drawings
|
