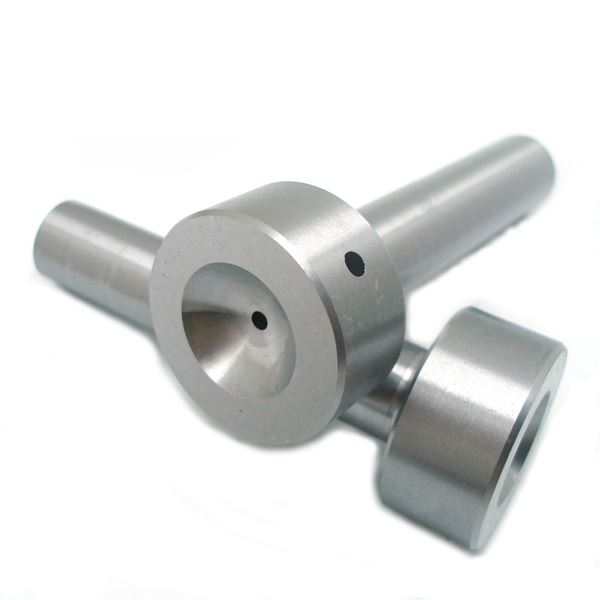

B Series Sprue Bushings On JBF National

JBF National B Series sprue bushings come hardened and ground, and feature a 43/45 RC through hardness.

1 - 40 of 40 | Results Per Page | View | Unit of Measure

Request Information Compare Items Search by Specification

Clear Filter

Dimension T (in)

Dimension B (in)

Dimension E (in)

Dimension R (in)

Item #	Dimension T	Dimension B	Dimension E	Dimension R

BW8605	N/A 1-25/32 in	N/A 29/32 in	N/A 5/32 in	N/A 1/2 in
BW8609	N/A 2-9/32 in	N/A 1-13/32 in	N/A 5/32 in	N/A 1/2 in
BW8613	N/A 2-25/32 in	N/A 1-29/32 in	N/A 5/32 in	N/A 1/2 in
BW8617	N/A 3-9/32 in	N/A 2-13/32 in	N/A 5/32 in	N/A 1/2 in
BW8621	N/A 3-25/32 in	N/A 2-29/32 in	N/A 5/32 in	N/A 1/2 in
BW8625	N/A 4-9/32 in	N/A 3-13/32 in	N/A 5/32 in	N/A 1/2 in
BW8629	N/A 4-25/32 in	N/A 3-29/32 in	N/A 5/32 in	N/A 1/2 in
BW8633	N/A 5-9/32 in	N/A 4-13/32 in	N/A 5/32 in	N/A 1/2 in
BW8637	N/A 5-25/32 in	N/A 4-29/32 in	N/A 5/32 in	N/A 1/2 in
BW8641	N/A 6-25/32 in	N/A 5-29/32 in	N/A 5/32 in	N/A 1/2 in
BW8606	N/A 1-25/32 in	N/A 29/32 in	N/A 7/32 in	N/A 1/2 in
BW8610	N/A 2-9/32 in	N/A 1-13/32 in	N/A 7/32 in	N/A 1/2 in
BW8614	N/A 2-25/32 in	N/A 1-29/32 in	N/A 7/32 in	N/A 1/2 in
BW8618	N/A 3-9/32 in	N/A 2-13/32 in	N/A 7/32 in	N/A 1/2 in
BW8622	N/A 3-25/32 in	N/A 2-29/32 in	N/A 7/32 in	N/A 1/2 in
BW8626	N/A 4-9/32 in	N/A 3-13/32 in	N/A 7/32 in	N/A 1/2 in
BW8630	N/A 4-25/32 in	N/A 3-29/32 in	N/A 7/32 in	N/A 1/2 in
BW8634	N/A 5-9/32 in	N/A 4-13/32 in	N/A 7/32 in	N/A 1/2 in
BW8638	N/A 5-25/32 in	N/A 4-29/32 in	N/A 7/32 in	N/A 1/2 in
BW8642	N/A 6-25/32 in	N/A 5-29/32 in	N/A 7/32 in	N/A 1/2 in
BW8607	N/A 1-25/32 in	N/A 29/32 in	N/A 5/32 in	N/A 3/4 in
BW8611	N/A 2-9/32 in	N/A 1-13/32 in	N/A 5/32 in	N/A 3/4 in
BW8615	N/A 2-25/32 in	N/A 1-29/32 in	N/A 5/32 in	N/A 3/4 in
BW8619	N/A 3-9/32 in	N/A 2-13/32 in	N/A 5/32 in	N/A 3/4 in
BW8623	N/A 3-25/32 in	N/A 2-29/32 in	N/A 5/32 in	N/A 3/4 in
BW8627	N/A 4-9/32 in	N/A 3-13/32 in	N/A 5/32 in	N/A 3/4 in
BW8631	N/A 4-25/32 in	N/A 3-29/32 in	N/A 5/32 in	N/A 3/4 in
BW8635	N/A 5-9/32 in	N/A 4-13/32 in	N/A 5/32 in	N/A 3/4 in
BW8639	N/A 5-25/32 in	N/A 4-29/32 in	N/A 5/32 in	N/A 3/4 in
BW8643	N/A 7-25/32 in	N/A 6-29/32 in	N/A 5/32 in	N/A 3/4 in
BW8608	N/A 1-25/32 in	N/A 29/32 in	N/A 7/32 in	N/A 3/4 in
BW8612	N/A 2-9/32 in	N/A 1-13/32 in	N/A 7/32 in	N/A 3/4 in
BW8616	N/A 2-25/32 in	N/A 1-29/32 in	N/A 7/32 in	N/A 3/4 in
BW8620	N/A 3-9/32 in	N/A 2-13/32 in	N/A 7/32 in	N/A 3/4 in
BW8624	N/A 3-25/32 in	N/A 2-29/32 in	N/A 7/32 in	N/A 3/4 in
BW8628	N/A 4-9/32 in	N/A 3-13/32 in	N/A 7/32 in	N/A 3/4 in
BW8632	N/A 4-25/32 in	N/A 3-29/32 in	N/A 7/32 in	N/A 3/4 in
BW8636	N/A 5-9/32 in	N/A 4-13/32 in	N/A 7/32 in	N/A 3/4 in
BW8640	N/A 5-25/32 in	N/A 4-29/32 in	N/A 7/32 in	N/A 3/4 in
BW8644	N/A 7-25/32 in	N/A 6-29/32 in	N/A 7/32 in	N/A 3/4 in

1 - 40 of 40 | Results Per Page | View | Unit of Measure

Catalog

Dimension T (in)

Dimension B (in)

Dimension E (in)

Dimension R (in)

Item #

Dimension T

Dimension B

Dimension E

Dimension R

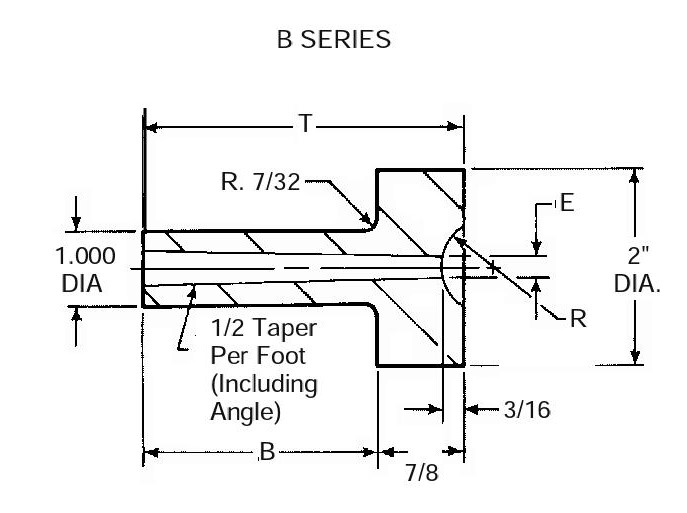

Drawings
