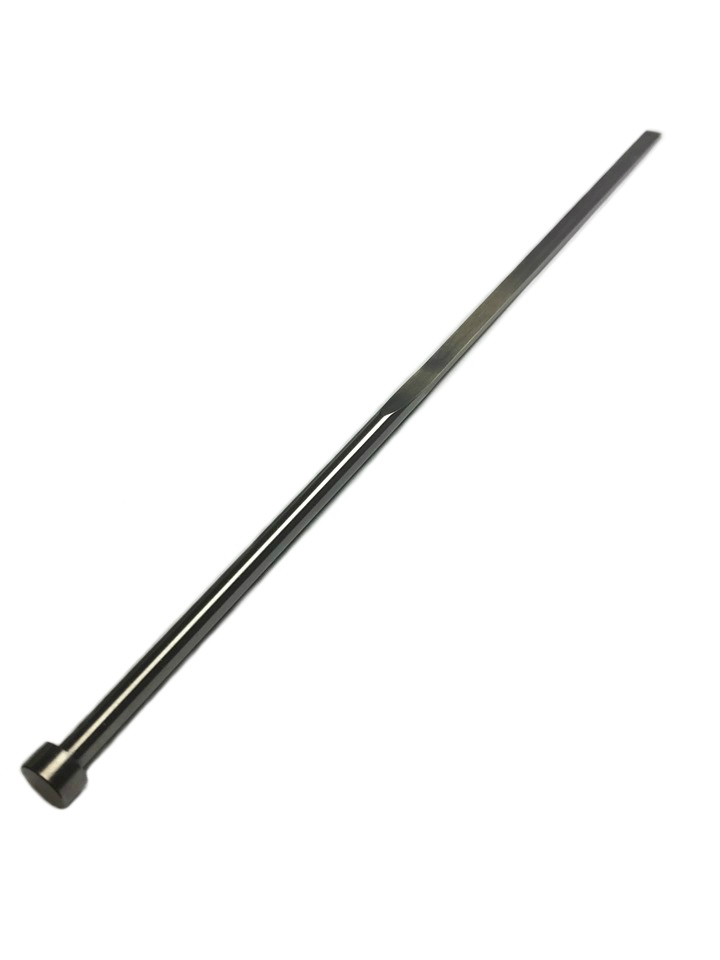

• Blade Ejectors

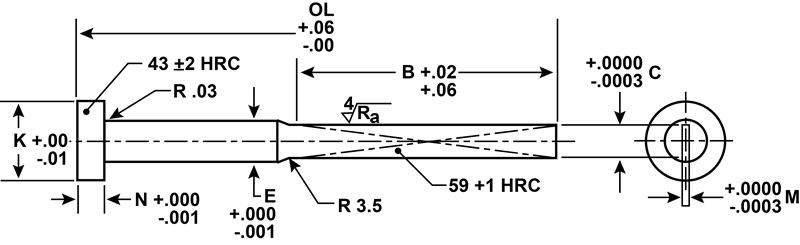

  • <!-Blade Ejectors Line Drawing->
1 - 70 of 70 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Dimension M (in)

Dimension C (in)

Dimension E (in)

Dimension K (in)

Dimension N (in)

Dimension OL (in)

Blade Length (B) (in)

Item #

Dimension M

Dimension C

Dimension E

Dimension K

Dimension N

Dimension OL

Blade Length (B)

Drawings

N/A 0.0150 in N/A 0.0460 in N/A 0.062 in N/A 1/4 in N/A 0.125 in N/A 6.5 in N/A 5 in

N/A 0.0150 in N/A 0.1000 in N/A 0.125 in N/A 1/4 in N/A 0.125 in N/A 6.5 in N/A 5 in

N/A 0.0200 in N/A 0.0460 in N/A 0.062 in N/A 1/4 in N/A 0.125 in N/A 6.5 in N/A 5 in

N/A 0.2000 in N/A 0.1000 in N/A 0.125 in N/A 1/4 in N/A 0.125 in N/A 6.5 in N/A 5 in

N/A 0.0240 in N/A 0.1000 in N/A 0.125 in N/A 1/4 in N/A 0.125 in N/A 6.5 in N/A 5 in

N/A 0.0240 in N/A 0.1400 in N/A 0.156 in N/A 0.281 in N/A 0.156 in N/A 6.5 in N/A 5 in

N/A 0.0240 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 6.5 in N/A 5 in

N/A 0.0320 in N/A 0.1000 in N/A 0.125 in N/A 1/4 in N/A 0.125 in N/A 6.5 in N/A 5 in

N/A 0.0320 in N/A 0.1400 in N/A 0.156 in N/A 0.281 in N/A 0.156 in N/A 6.5 in N/A 5 in

N/A 0.0320 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 6.5 in N/A 5 in

N/A 0.0320 in N/A 0.2340 in N/A 0.250 in N/A 0.437 in N/A 0.187 in N/A 6.5 in N/A 5 in

N/A 0.0460 in N/A 0.1000 in N/A 0.125 in N/A 1/4 in N/A 0.125 in N/A 6.5 in N/A 5 in

N/A 0.0460 in N/A 0.1400 in N/A 0.156 in N/A 0.281 in N/A 0.156 in N/A 6.5 in N/A 5 in

N/A 0.0460 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 6.5 in N/A 5 in

N/A 0.0460 in N/A 0.2340 in N/A 0.250 in N/A 0.437 in N/A 0.187 in N/A 6.5 in N/A 5 in

N/A 0.0620 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 6.5 in N/A 5 in

N/A 0.0620 in N/A 0.2340 in N/A 0.250 in N/A 0.437 in N/A 0.187 in N/A 6.5 in N/A 5 in

N/A 0.0150 in N/A 0.0460 in N/A 0.062 in N/A 1/4 in N/A 0.125 in N/A 7.5 in N/A 5 in

N/A 0.0150 in N/A 0.1000 in N/A 0.125 in N/A 1/4 in N/A 0.125 in N/A 7.5 in N/A 5 in

N/A 0.0200 in N/A 0.0460 in N/A 0.062 in N/A 1/4 in N/A 0.125 in N/A 7.5 in N/A 5 in

N/A 0.2000 in N/A 0.1000 in N/A 0.125 in N/A 1/4 in N/A 0.125 in N/A 7.5 in N/A 5 in

N/A 0.0240 in N/A 0.1000 in N/A 0.125 in N/A 1/4 in N/A 0.125 in N/A 7.5 in N/A 5 in

N/A 0.0240 in N/A 0.1400 in N/A 0.156 in N/A 0.281 in N/A 0.156 in N/A 7.5 in N/A 5 in

N/A 0.0240 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 7.5 in N/A 5 in

N/A 0.0320 in N/A 0.1000 in N/A 0.125 in N/A 1/4 in N/A 0.125 in N/A 7.5 in N/A 5 in

N/A 0.0320 in N/A 0.1400 in N/A 0.156 in N/A 0.281 in N/A 0.156 in N/A 7.5 in N/A 5 in

N/A 0.0320 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 7.5 in N/A 5 in

N/A 0.0320 in N/A 0.2340 in N/A 0.250 in N/A 0.437 in N/A 0.187 in N/A 7.5 in N/A 5 in

N/A 0.0320 in N/A 0.2960 in N/A 0.312 in N/A 0.500 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0320 in N/A 0.3590 in N/A 3/8 in N/A 0.625 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0460 in N/A 0.1000 in N/A 0.125 in N/A 1/4 in N/A 0.125 in N/A 7.5 in N/A 5 in

N/A 0.0460 in N/A 0.1400 in N/A 0.156 in N/A 0.281 in N/A 0.156 in N/A 7.5 in N/A 5 in

N/A 0.0460 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 7.5 in N/A 5 in

N/A 0.0460 in N/A 0.2340 in N/A 0.250 in N/A 0.437 in N/A 0.187 in N/A 7.5 in N/A 5 in

N/A 0.0460 in N/A 0.2960 in N/A 0.312 in N/A 0.500 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0460 in N/A 0.3590 in N/A 3/8 in N/A 0.625 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0620 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 7.5 in N/A 5 in

N/A 0.0620 in N/A 0.2340 in N/A 0.250 in N/A 0.437 in N/A 0.187 in N/A 7.5 in N/A 5 in

N/A 0.0620 in N/A 0.2960 in N/A 0.312 in N/A 0.500 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0620 in N/A 0.3590 in N/A 3/8 in N/A 0.625 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0780 in N/A 0.2960 in N/A 0.312 in N/A 0.500 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0780 in N/A 0.3590 in N/A 3/8 in N/A 0.625 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0780 in N/A 0.4840 in N/A 1/2 in N/A 0.750 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0780 in N/A 0.5470 in N/A 0.562 in N/A 0.812 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0780 in N/A 0.6090 in N/A 5/8 in N/A 0.875 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0940 in N/A 0.4220 in N/A 0.437 in N/A 0.687 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0940 in N/A 0.4840 in N/A 1/2 in N/A 0.750 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0940 in N/A 0.5470 in N/A 0.562 in N/A 0.812 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0940 in N/A 0.6090 in N/A 5/8 in N/A 0.875 in N/A 0.250 in N/A 7.5 in N/A 5 in

N/A 0.0320 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 10.5 in N/A 6 in

N/A 0.0320 in N/A 0.2340 in N/A 0.250 in N/A 0.437 in N/A 0.187 in N/A 10.5 in N/A 6 in

N/A 0.0320 in N/A 0.2960 in N/A 0.312 in N/A 0.500 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0320 in N/A 0.3590 in N/A 3/8 in N/A 0.625 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0460 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 10.5 in N/A 6 in

N/A 0.0460 in N/A 0.2340 in N/A 0.250 in N/A 0.437 in N/A 0.187 in N/A 10.5 in N/A 6 in

N/A 0.0460 in N/A 0.2960 in N/A 0.312 in N/A 0.500 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0460 in N/A 0.3590 in N/A 3/8 in N/A 0.625 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0620 in N/A 0.1720 in N/A 0.187 in N/A 3/8 in N/A 0.187 in N/A 10.5 in N/A 6 in

N/A 0.0620 in N/A 0.2340 in N/A 0.250 in N/A 0.437 in N/A 0.187 in N/A 10.5 in N/A 6 in

N/A 0.0620 in N/A 0.2960 in N/A 0.312 in N/A 0.500 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0620 in N/A 0.3590 in N/A 3/8 in N/A 0.625 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0780 in N/A 0.2960 in N/A 0.312 in N/A 0.500 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0780 in N/A 0.3590 in N/A 3/8 in N/A 0.625 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0780 in N/A 0.4840 in N/A 1/2 in N/A 0.750 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0780 in N/A 0.5470 in N/A 0.562 in N/A 0.812 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0780 in N/A 0.6090 in N/A 5/8 in N/A 0.875 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0940 in N/A 0.4220 in N/A 0.437 in N/A 0.687 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0940 in N/A 0.4840 in N/A 1/2 in N/A 0.750 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0940 in N/A 0.5470 in N/A 0.562 in N/A 0.812 in N/A 0.250 in N/A 10.5 in N/A 6 in

N/A 0.0940 in N/A 0.6090 in N/A 5/8 in N/A 0.875 in N/A 0.250 in N/A 10.5 in N/A 6 in
