Ejector Sleeves On JBF National

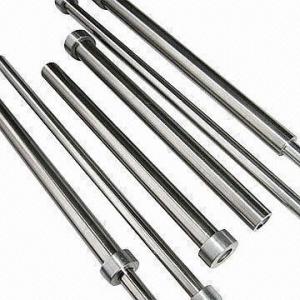

JBF National ejector sleeves are manufactured using certified H-13 die steel and come completely bright nitride processed both inside and out. These ejector sleeves can both be used as housing for the ejector pin or as the actual ejector pin itself. These ejector sleeves feature a ground finish under the sleeve head to ensure the best seating possible. Surface Hardness: HRC65-74 Core Hardness: HRC 40 ±5.

1 - 100 of 103 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Dimension D1 (in)

Dimension B1 (in)

Dimension D2 (in)

Dimension K (in)

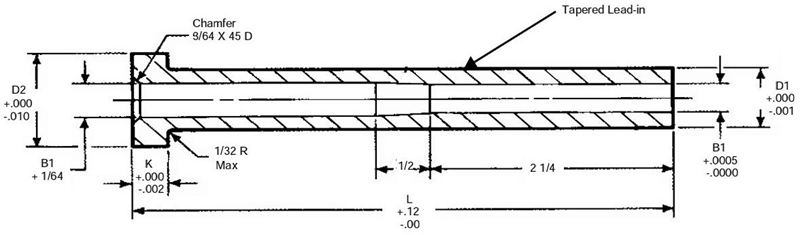

Item #	Dimension D1	Dimension B1	Dimension D2	Dimension K	Length (L2)

EY6420	N/A 3/16 in	N/A 3/32 in	N/A 3/8 in	N/A 3/16 in	N/A 2.25 in
EY6421	N/A 3/16 in	N/A 3/32 in	N/A 3/8 in	N/A 3/16 in	N/A 2.25 in
EY6422	N/A 3/16 in	N/A 3/32 in	N/A 3/8 in	N/A 3/16 in	N/A 2.25 in
EY6423	N/A 3/16 in	N/A 3/32 in	N/A 3/8 in	N/A 3/16 in	N/A 2.25 in
EY6424	N/A 7/32 in	N/A 1/8 in	N/A 13/32 in	N/A 3/16 in	N/A 2.25 in
EY6425	N/A 7/32 in	N/A 1/8 in	N/A 13/32 in	N/A 3/16 in	N/A 2.25 in
EY6426	N/A 7/32 in	N/A 1/8 in	N/A 13/32 in	N/A 3/16 in	N/A 2.25 in
EY6427	N/A 7/32 in	N/A 1/8 in	N/A 13/32 in	N/A 3/16 in	N/A 2.25 in
EY6428	N/A 1/4 in	N/A 5/32 in	N/A 7/16 in	N/A 3/16 in	N/A 2.25 in
EY6429	N/A 1/4 in	N/A 5/32 in	N/A 7/16 in	N/A 3/16 in	N/A 2.25 in
EY6430	N/A 1/4 in	N/A 5/32 in	N/A 7/16 in	N/A 3/16 in	N/A 2.25 in
EY6431	N/A 1/4 in	N/A 5/32 in	N/A 7/16 in	N/A 3/16 in	N/A 2.25 in
EY6432	N/A 1/4 in	N/A 5/32 in	N/A 7/16 in	N/A 3/16 in	N/A 2.25 in
EY6433	N/A 1/4 in	N/A 5/32 in	N/A 7/16 in	N/A 3/16 in	N/A 2.25 in
EY6434	N/A 1/4 in	N/A 5/32 in	N/A 7/16 in	N/A 3/16 in	N/A 2.25 in
EY6435	N/A 5/16 in	N/A 3/16 in	N/A 1/2 in	N/A 1/4 in	N/A 2.25 in
EY6436	N/A 5/16 in	N/A 3/16 in	N/A 1/2 in	N/A 1/4 in	N/A 2.25 in
EY6437	N/A 5/16 in	N/A 3/16 in	N/A 1/2 in	N/A 1/4 in	N/A 2.25 in
EY6438	N/A 5/16 in	N/A 3/16 in	N/A 1/2 in	N/A 1/4 in	N/A 2.25 in
EY6439	N/A 5/16 in	N/A 3/16 in	N/A 1/2 in	N/A 1/4 in	N/A 2.25 in
EY6440	N/A 5/16 in	N/A 3/16 in	N/A 1/2 in	N/A 1/4 in	N/A 2.25 in
EY6441	N/A 5/16 in	N/A 3/16 in	N/A 1/2 in	N/A 1/4 in	N/A 2.25 in
EY6442	N/A 5/16 in	N/A 3/16 in	N/A 1/2 in	N/A 1/4 in	N/A 2.25 in
EY6443	N/A 5/16 in	N/A 3/16 in	N/A 1/2 in	N/A 1/4 in	N/A 2.25 in
EY6444	N/A 11/32 in	N/A 7/32 in	N/A 9/16 in	N/A 1/4 in	N/A 2.25 in
EY6445	N/A 11/32 in	N/A 7/32 in	N/A 9/16 in	N/A 1/4 in	N/A 2.25 in
EY6446	N/A 11/32 in	N/A 7/32 in	N/A 9/16 in	N/A 1/4 in	N/A 2.25 in
EY6447	N/A 11/32 in	N/A 7/32 in	N/A 9/16 in	N/A 1/4 in	N/A 2.25 in
EY6448	N/A 11/32 in	N/A 7/32 in	N/A 9/16 in	N/A 1/4 in	N/A 2.25 in
EY6449	N/A 11/32 in	N/A 7/32 in	N/A 9/16 in	N/A 1/4 in	N/A 2.25 in
EY6450	N/A 11/32 in	N/A 7/32 in	N/A 9/16 in	N/A 1/4 in	N/A 2.25 in
EY6451	N/A 3/8 in	N/A 1/4 in	N/A 5/8 in	N/A 1/4 in	N/A 2.25 in
EY6452	N/A 3/8 in	N/A 1/4 in	N/A 5/8 in	N/A 1/4 in	N/A 2.25 in
EY6453	N/A 3/8 in	N/A 1/4 in	N/A 5/8 in	N/A 1/4 in	N/A 2.25 in
EY6454	N/A 3/8 in	N/A 1/4 in	N/A 5/8 in	N/A 1/4 in	N/A 2.25 in
EY6455	N/A 3/8 in	N/A 1/4 in	N/A 5/8 in	N/A 1/4 in	N/A 2.25 in
EY6456	N/A 3/8 in	N/A 1/4 in	N/A 5/8 in	N/A 1/4 in	N/A 2.25 in
EY6457	N/A 3/8 in	N/A 1/4 in	N/A 5/8 in	N/A 1/4 in	N/A 2.25 in
EY6458	N/A 3/8 in	N/A 1/4 in	N/A 5/8 in	N/A 1/4 in	N/A 2.25 in
EY6459	N/A 3/8 in	N/A 1/4 in	N/A 5/8 in	N/A 1/4 in	N/A 2.25 in
EY6460	N/A 7/16 in	N/A 5/16 in	N/A 11/16 in	N/A 1/4 in	N/A 2.25 in
EY6461	N/A 7/16 in	N/A 5/16 in	N/A 11/16 in	N/A 1/4 in	N/A 2.25 in
EY6462	N/A 7/16 in	N/A 5/16 in	N/A 11/16 in	N/A 1/4 in	N/A 2.25 in
EY6463	N/A 7/16 in	N/A 5/16 in	N/A 11/16 in	N/A 1/4 in	N/A 2.25 in
EY6464	N/A 7/16 in	N/A 5/16 in	N/A 11/16 in	N/A 1/4 in	N/A 2.25 in
EY6465	N/A 7/16 in	N/A 5/16 in	N/A 11/16 in	N/A 1/4 in	N/A 2.25 in
EY6466	N/A 7/16 in	N/A 5/16 in	N/A 11/16 in	N/A 1/4 in	N/A 2.25 in
EY6467	N/A 7/16 in	N/A 5/16 in	N/A 11/16 in	N/A 1/4 in	N/A 2.25 in
EY6468	N/A 7/16 in	N/A 5/16 in	N/A 11/16 in	N/A 1/4 in	N/A 2.25 in
EY6469	N/A 1/2 in	N/A 3/8 in	N/A 3/4 in	N/A 1/4 in	N/A 2.25 in
EY6470	N/A 1/2 in	N/A 3/8 in	N/A 3/4 in	N/A 1/4 in	N/A 2.25 in
EY6471	N/A 1/2 in	N/A 3/8 in	N/A 3/4 in	N/A 1/4 in	N/A 2.25 in
EY6472	N/A 1/2 in	N/A 3/8 in	N/A 3/4 in	N/A 1/4 in	N/A 2.25 in
EY6473	N/A 1/2 in	N/A 3/8 in	N/A 3/4 in	N/A 1/4 in	N/A 2.25 in
EY6474	N/A 1/2 in	N/A 3/8 in	N/A 3/4 in	N/A 1/4 in	N/A 2.25 in
EY6475	N/A 1/2 in	N/A 3/8 in	N/A 3/4 in	N/A 1/4 in	N/A 2.25 in
EY6476	N/A 1/2 in	N/A 3/8 in	N/A 3/4 in	N/A 1/4 in	N/A 2.25 in
EY6477	N/A 1/2 in	N/A 3/8 in	N/A 3/4 in	N/A 1/4 in	N/A 2.25 in
EY6478	N/A 5/8 in	N/A 7/16 in	N/A 7/8 in	N/A 1/4 in	N/A 2.25 in
EY6479	N/A 5/8 in	N/A 7/16 in	N/A 7/8 in	N/A 1/4 in	N/A 2.25 in
EY6480	N/A 5/8 in	N/A 7/16 in	N/A 7/8 in	N/A 1/4 in	N/A 2.25 in
EY6481	N/A 5/8 in	N/A 7/16 in	N/A 7/8 in	N/A 1/4 in	N/A 2.25 in
EY6482	N/A 5/8 in	N/A 7/16 in	N/A 7/8 in	N/A 1/4 in	N/A 2.25 in
EY6483	N/A 5/8 in	N/A 7/16 in	N/A 7/8 in	N/A 1/4 in	N/A 2.25 in
EY6484	N/A 5/8 in	N/A 7/16 in	N/A 7/8 in	N/A 1/4 in	N/A 2.25 in
EY6485	N/A 5/8 in	N/A 7/16 in	N/A 7/8 in	N/A 1/4 in	N/A 2.25 in
EY6486	N/A 5/8 in	N/A 7/16 in	N/A 7/8 in	N/A 1/4 in	N/A 2.25 in
EY6487	N/A 11/16 in	N/A 1/2 in	N/A 15/16 in	N/A 1/4 in	N/A 2.25 in
EY6488	N/A 11/16 in	N/A 1/2 in	N/A 15/16 in	N/A 1/4 in	N/A 2.25 in
EY6489	N/A 11/16 in	N/A 1/2 in	N/A 15/16 in	N/A 1/4 in	N/A 2.25 in
EY6490	N/A 11/16 in	N/A 1/2 in	N/A 15/16 in	N/A 1/4 in	N/A 2.25 in
EY6491	N/A 11/16 in	N/A 1/2 in	N/A 15/16 in	N/A 1/4 in	N/A 2.25 in
EY6492	N/A 11/16 in	N/A 1/2 in	N/A 15/16 in	N/A 1/4 in	N/A 2.25 in
EY6493	N/A 11/16 in	N/A 1/2 in	N/A 15/16 in	N/A 1/4 in	N/A 2.25 in
EY6494	N/A 11/16 in	N/A 1/2 in	N/A 15/16 in	N/A 1/4 in	N/A 2.25 in
EY6495	N/A 11/16 in	N/A 1/2 in	N/A 15/16 in	N/A 1/4 in	N/A 2.25 in
EY6496	N/A 3/4 in	N/A 9/16 in	N/A 1 in	N/A 1/4 in	N/A 2.25 in
EY6497	N/A 3/4 in	N/A 9/16 in	N/A 1 in	N/A 1/4 in	N/A 2.25 in
EY6498	N/A 3/4 in	N/A 9/16 in	N/A 1 in	N/A 1/4 in	N/A 2.25 in
EY6499	N/A 3/4 in	N/A 9/16 in	N/A 1 in	N/A 1/4 in	N/A 2.25 in
EY6500	N/A 3/4 in	N/A 9/16 in	N/A 1 in	N/A 1/4 in	N/A 2.25 in
EY6501	N/A 3/4 in	N/A 9/16 in	N/A 1 in	N/A 1/4 in	N/A 2.25 in
EY6502	N/A 3/4 in	N/A 9/16 in	N/A 1 in	N/A 1/4 in	N/A 2.25 in
EY6503	N/A 3/4 in	N/A 9/16 in	N/A 1 in	N/A 1/4 in	N/A 2.25 in
EY6504	N/A 3/4 in	N/A 9/16 in	N/A 1 in	N/A 1/4 in	N/A 2.25 in
EY6505	N/A 7/8 in	N/A 5/8 in	N/A 1-1/8 in	N/A 1/4 in	N/A 2.25 in
EY6506	N/A 7/8 in	N/A 5/8 in	N/A 1-1/8 in	N/A 1/4 in	N/A 2.25 in
EY6507	N/A 7/8 in	N/A 5/8 in	N/A 1-1/8 in	N/A 1/4 in	N/A 2.25 in
EY6508	N/A 7/8 in	N/A 5/8 in	N/A 1-1/8 in	N/A 1/4 in	N/A 2.25 in
EY6509	N/A 7/8 in	N/A 5/8 in	N/A 1-1/8 in	N/A 1/4 in	N/A 2.25 in
EY6510	N/A 7/8 in	N/A 5/8 in	N/A 1-1/8 in	N/A 1/4 in	N/A 2.25 in
EY6511	N/A 7/8 in	N/A 5/8 in	N/A 1-1/8 in	N/A 1/4 in	N/A 2.25 in
EY6512	N/A 7/8 in	N/A 5/8 in	N/A 1-1/8 in	N/A 1/4 in	N/A 2.25 in
EY6513	N/A 7/8 in	N/A 5/8 in	N/A 1-1/8 in	N/A 1/4 in	N/A 2.25 in
EY6514	N/A 1 in	N/A 3/4 in	N/A 1-1/4 in	N/A 1/4 in	N/A 2.25 in
EY6515	N/A 1 in	N/A 3/4 in	N/A 1-1/4 in	N/A 1/4 in	N/A 2.25 in
EY6516	N/A 1 in	N/A 3/4 in	N/A 1-1/4 in	N/A 1/4 in	N/A 2.25 in
EY6517	N/A 1 in	N/A 3/4 in	N/A 1-1/4 in	N/A 1/4 in	N/A 2.25 in
EY6518	N/A 1 in	N/A 3/4 in	N/A 1-1/4 in	N/A 1/4 in	N/A 2.25 in
EY6519	N/A 1 in	N/A 3/4 in	N/A 1-1/4 in	N/A 1/4 in	N/A 2.25 in
