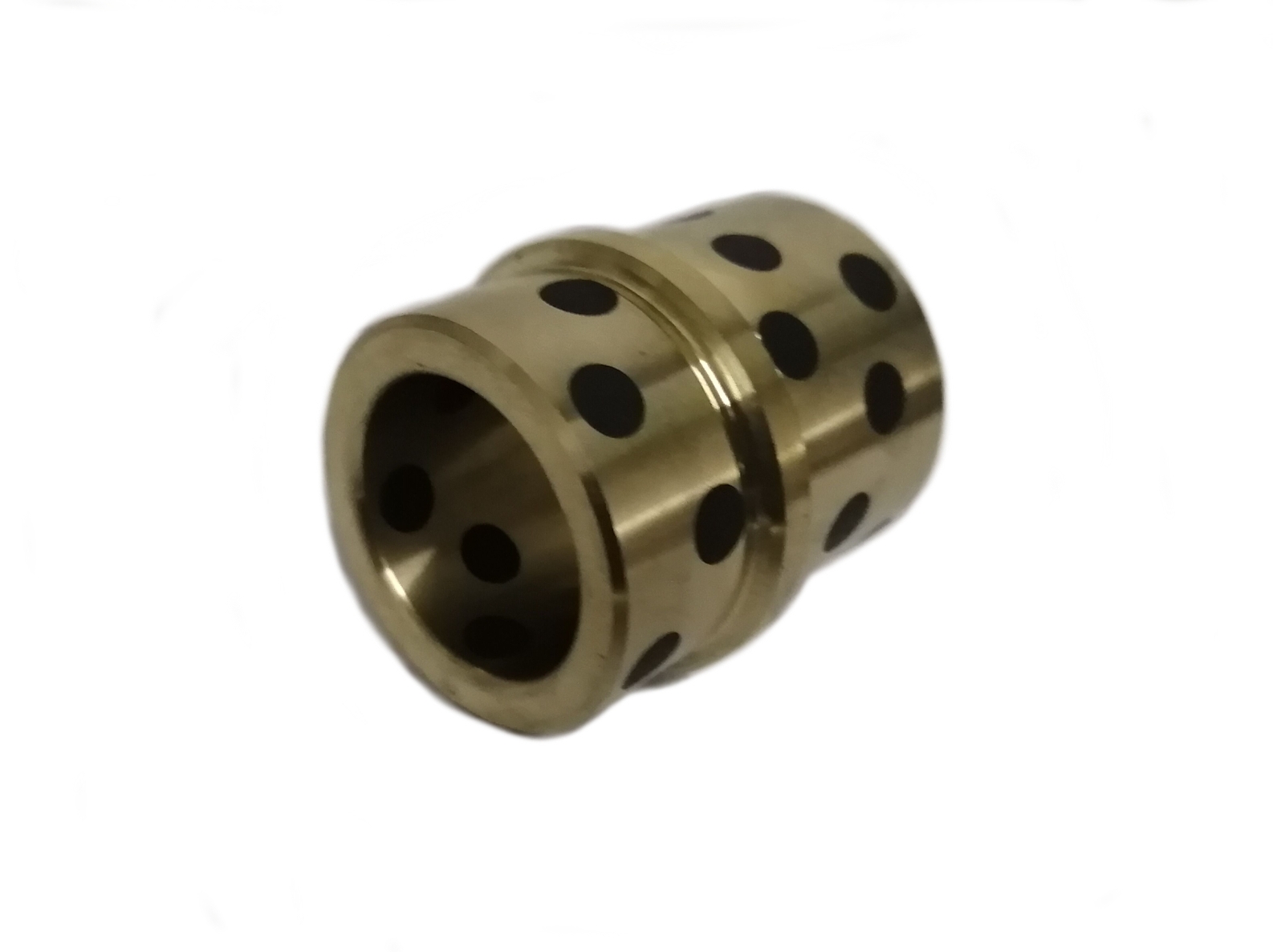

Graphite Plugged Guided Ejector Bushings On JBF National

1 - 6 of 6 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

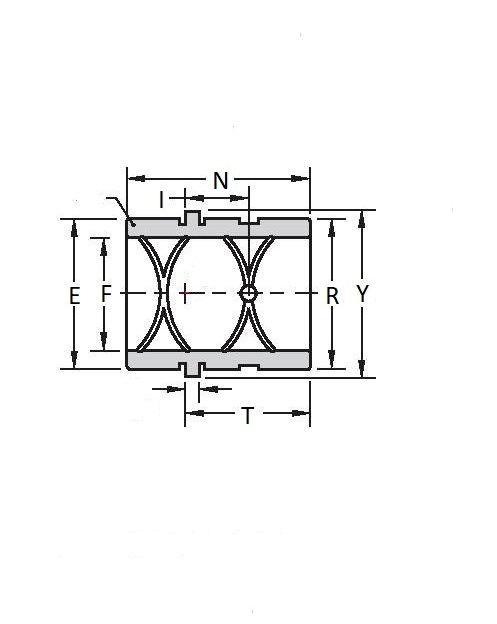

Item #	Nominal Diameter	Dimension D (F)	Dimension H (R)	Dimension C (E)	Dimension M (Y)	Dimension B (T)	Dimension L (N)	Drawings

GPGEB-600	N/A 3/4 in	N/A 0.751 in	N/A 1.1255 in	N/A 1.1240 in	N/A 1.302 in	N/A 1.00 in	N/A 1.50 in
GPGEB-601	N/A 7/8 in	N/A 0.876 in	N/A 1.2505 in	N/A 1.2490 in	N/A 1.427 in	N/A 1.00 in	N/A 1.50 in
GPGEB-602	N/A 1 in	N/A 1.001 in	N/A 1.3755 in	N/A 1.3740 in	N/A 1.552 in	N/A 1.12 in	N/A 1.75 in
GPGEB-603	N/A 1-1/4 in	N/A 1.251 in	N/A 1.6255 in	N/A 1.6240 in	N/A 1.802 in	N/A 1.12 in	N/A 1.75 in
GPGEB-604	N/A 1-1/2 in	N/A 1.501 in	N/A 2.0005 in	N/A 1.9990 in	N/A 2.177 in	N/A 1.12 in	N/A 1.75 in
GPGEB-605	N/A 2 in	N/A 2.001 in	N/A 2.5005 in	N/A 2.4990 in	N/A 2.687 in	N/A 1.62 in	N/A 2.25 in
