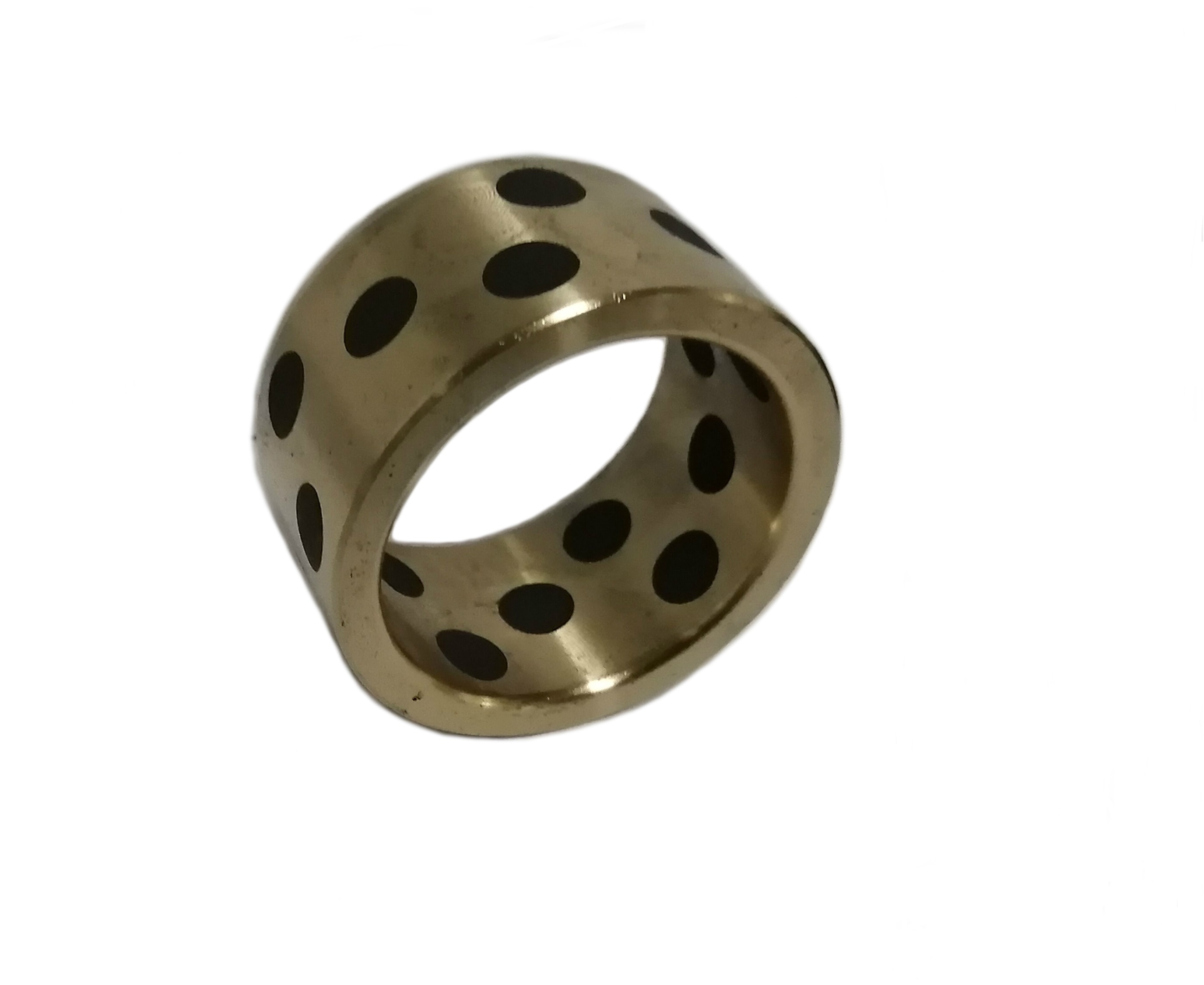

Graphite Plugged Straight Style Bushings On JBF National

1 - 10 of 10 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

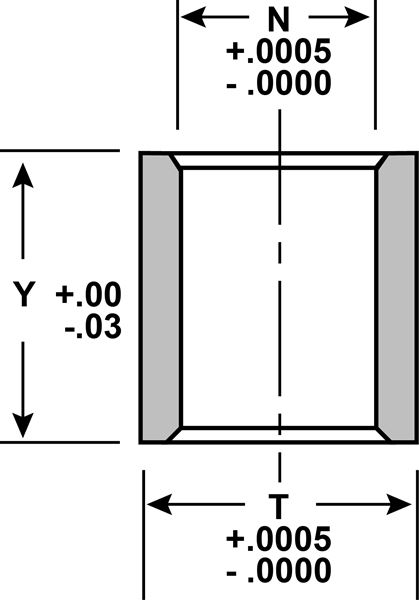

Item #	Nominal Diameter	Dimension N	Dimension T	Dimension Y	Drawings

STBGP-5500	N/A 3/4 in	N/A 0.7505 in	N/A 1.1255 in	N/A 7/8 in
STBGP-5501	N/A 3/4 in	N/A 0.7505 in	N/A 1.1255 in	N/A 1-3/8 in
STBGP-5502	N/A 7/8 in	N/A 0.8755 in	N/A 1.2505 in	N/A 1-1/2 in
STBGP-5503	N/A 1 in	N/A 1.0005 in	N/A 1.3755 in	N/A 1-3/8 in
STBGP-5504	N/A 1-1/4 in	N/A 1.2505 in	N/A 1.6255 in	N/A 1-3/8 in
STBGP-5505	N/A 1-1/4 in	N/A 1.2505 in	N/A 1.6255 in	N/A 1-7/8 in
STBGP-5506	N/A 1-1/2 in	N/A 1.5005 in	N/A 2.0005 in	N/A 1-3/8 in
STBGP-5507	N/A 1-1/2 in	N/A 1.5005 in	N/A 2.0005 in	N/A 1-7/8 in
STBGP-5508	N/A 2 in	N/A 2.0005 in	N/A 2.5005 in	N/A 3-7/8 in
STBGP-5509	N/A 2-1/2 in	N/A 2.5005 in	N/A 3.2505 in	N/A 4-7/8 in
