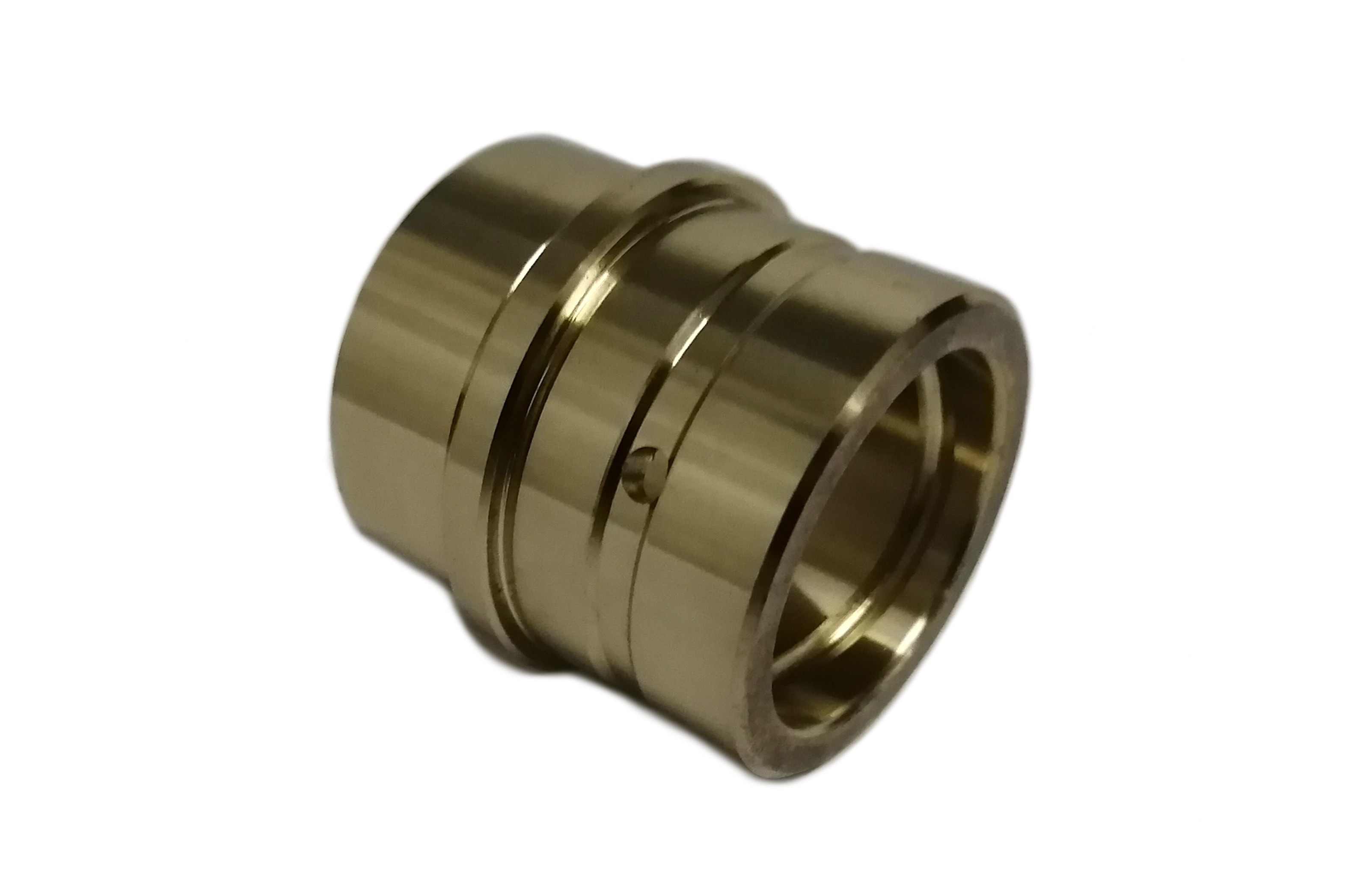

• Guided Ejector Bushings
  • <!-Guided Ejector Bushings - 2->
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Nominal Diameter

Dimension D (F)

Dimension C (E)

Dimension M (Y)

Dimension B (T)

Dimension K (I)

Dimension L (N)

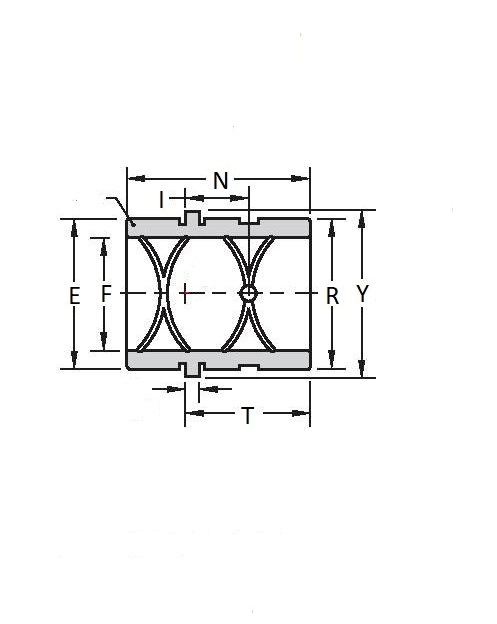

Drawings

N/A 1/2 in N/A 0.5005 in N/A 0.7490 in N/A 0.853 in N/A 1.00 in N/A 0.56 in N/A 1.50 in

N/A 3/4 in N/A 0.7505 in N/A 1.1240 in N/A 1.302 in N/A 1.00 in N/A 0.56 in N/A 1.50 in

N/A 7/8 in N/A 0.8755 in N/A 1.2490 in N/A 1.427 in N/A 1.00 in N/A 0.56 in N/A 1.50 in

N/A 1 in N/A 1.0005 in N/A 1.3740 in N/A 1.552 in N/A 1.12 in N/A 0.62 in N/A 1.75 in

N/A 1-1/4 in N/A 1.2505 in N/A 1.6240 in N/A 1.802 in N/A 1.12 in N/A 0.62 in N/A 1.75 in

N/A 1-1/2 in N/A 1.5005 in N/A 1.9990 in N/A 2.177 in N/A 1.12 in N/A 0.62 in N/A 1.75 in

N/A 2 in N/A 2.0005 in N/A 2.4990 in N/A 2.687 in N/A 1.62 in N/A 0.80 in N/A 2.25 in

N/A N/A N/A N/A N/A N/A N/A

N/A N/A N/A N/A N/A N/A N/A

N/A N/A N/A N/A N/A N/A N/A
