Hard Core Pins On JBF National

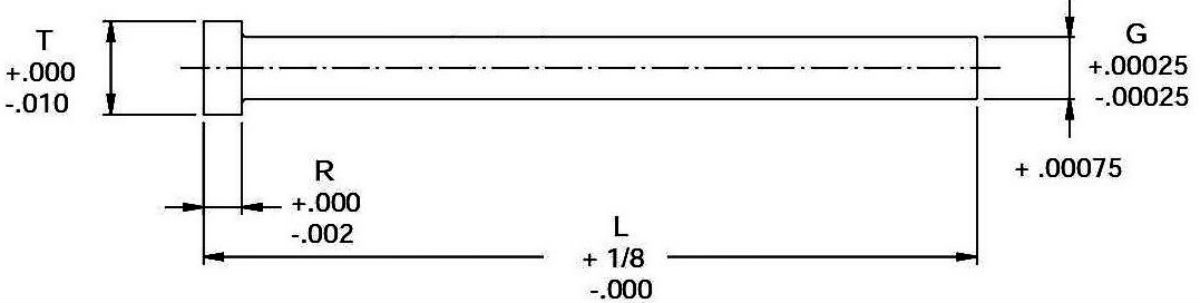

JBF National hard core-core pins come manufactured from hot forged and annealed steel, and feature a ground finish. To ensure the highest quality, JBF National hard core pins are laser inspected throughout the entire manufacturing process. Hard core pin through hardness is 50/55 RC. Please see component diagram below.

1 - 100 of 107 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Dimension G (in)

Dimension T (in)

Dimension R (in)

Length (L) (in)

Item #	Dimension G	Dimension T	Dimension R	Length (L)

HCP5620	N/A 3/32 in	N/A 0.25 in	N/A 1/8 in	N/A 3 in
HCP5621	N/A 3/32 in	N/A 0.25 in	N/A 1/8 in	N/A 6 in
HCP5622	N/A 3/32 in	N/A 0.25 in	N/A 1/8 in	N/A 10 in
HCP5623	N/A 7/64 in	N/A 0.25 in	N/A 1/8 in	N/A 3 in
HCP5624	N/A 7/64 in	N/A 0.25 in	N/A 1/8 in	N/A 6 in
HCP5625	N/A 7/64 in	N/A 0.25 in	N/A 1/8 in	N/A 10 in
HCP5626	N/A 1/8 in	N/A 0.25 in	N/A 1/8 in	N/A 3 in
HCP5627	N/A 1/8 in	N/A 0.25 in	N/A 1/8 in	N/A 6 in
HCP5628	N/A 9/64 in	N/A 0.25 in	N/A 1/8 in	N/A 3 in
HCP5629	N/A 9/64 in	N/A 0.25 in	N/A 1/8 in	N/A 6 in
HCP5630	N/A 9/64 in	N/A 0.25 in	N/A 1/8 in	N/A 10 in
HCP5631	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in	N/A 3 in
HCP5632	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in	N/A 6 in
HCP5633	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in	N/A 10 in
HCP5634	N/A 11/64 in	N/A 11/32 in	N/A 3/16 in	N/A 3 in
HCP5635	N/A 11/64 in	N/A 11/32 in	N/A 3/16 in	N/A 6 in
HCP5636	N/A 11/64 in	N/A 11/32 in	N/A 3/16 in	N/A 10 in
HCP5637	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in	N/A 3 in
HCP5638	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in	N/A 6 in
HCP5639	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in	N/A 10 in
HCP5640	N/A 13/64 in	N/A 3/8 in	N/A 3/16 in	N/A 3 in
HCP5641	N/A 13/64 in	N/A 3/8 in	N/A 3/16 in	N/A 6 in
HCP5642	N/A 13/64 in	N/A 3/8 in	N/A 3/16 in	N/A 10 in
HCP5643	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in	N/A 3 in
HCP5644	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in	N/A 6 in
HCP5645	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in	N/A 10 in
HCP5646	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in	N/A 3 in
HCP5647	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in	N/A 6 in
HCP5648	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in	N/A 10 in
HCP5649	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in	N/A 3 in
HCP5650	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in	N/A 6 in
HCP5651	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in	N/A 10 in
HCP5652	N/A 5/16 in	N/A 0.5 in	N/A 1/4 in	N/A 3 in
HCP5653	N/A 5/16 in	N/A 0.5 in	N/A 1/4 in	N/A 6 in
HCP5654	N/A 5/16 in	N/A 0.5 in	N/A 1/4 in	N/A 10 in
HCP5655	N/A 11/32 in	N/A 9/16 in	N/A 1/4 in	N/A 3 in
HCP5656	N/A 11/32 in	N/A 9/16 in	N/A 1/4 in	N/A 6 in
HCP5657	N/A 11/32 in	N/A 9/16 in	N/A 1/4 in	N/A 10 in
HCP5658	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in	N/A 3 in
HCP5659	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in	N/A 6 in
HCP5660	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in	N/A 10 in
HCP5661	N/A 13/32 in	N/A 11/16 in	N/A 1/4 in	N/A 3 in
HCP5662	N/A 13/32 in	N/A 11/16 in	N/A 1/4 in	N/A 6 in
HCP5663	N/A 13/32 in	N/A 11/16 in	N/A 1/4 in	N/A 10 in
HCP5664	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in	N/A 3 in
HCP5665	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in	N/A 6 in
HCP5666	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in	N/A 10 in
HCP5667	N/A 15/32 in	N/A 3/4 in	N/A 1/4 in	N/A 3 in
HCP5668	N/A 15/32 in	N/A 3/4 in	N/A 1/4 in	N/A 6 in
HCP5669	N/A 15/32 in	N/A 3/4 in	N/A 1/4 in	N/A 10 in
HCP5670	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in	N/A 3 in
HCP5671	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in	N/A 6 in
HCP5672	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in	N/A 10 in
HCP5673	N/A 9/16 in	N/A 13/16 in	N/A 1/4 in	N/A 6 in
HCP5674	N/A 9/16 in	N/A 13/16 in	N/A 1/4 in	N/A 10 in
HCP5675	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in	N/A 6 in
HCP5676	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in	N/A 10 in
HCP5677	N/A 3/4 in	N/A 1 in	N/A 1/4 in	N/A 6 in
HCP5678	N/A 3/4 in	N/A 1 in	N/A 1/4 in	N/A 10 in
HCP5700	N/A 3/32 in	N/A 0.25 in	N/A 1/8 in	N/A 14 in
HCP5701	N/A 7/64 in	N/A 0.25 in	N/A 1/8 in	N/A 14 in
HCP5702	N/A 1/8 in	N/A 0.25 in	N/A 1/8 in	N/A 14 in
HCP5703	N/A 9/64 in	N/A 0.25 in	N/A 1/8 in	N/A 14 in
HCP5704	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in	N/A 14 in
HCP5705	N/A 11/64 in	N/A 11/32 in	N/A 3/16 in	N/A 14 in
HCP5706	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in	N/A 14 in
HCP5707	N/A 13/64 in	N/A 3/8 in	N/A 3/16 in	N/A 14 in
HCP5708	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in	N/A 14 in
HCP5709	N/A 15/64 in	N/A 7/16 in	N/A 3/16 in	N/A 14 in
HCP5710	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in	N/A 14 in
HCP5711	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in	N/A 18 in
HCP5713	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in	N/A 14 in
HCP5714	N/A 21/64 in	N/A 0.5 in	N/A 1/4 in	N/A 14 in
HCP5715	N/A 11/32 in	N/A 9/16 in	N/A 1/4 in	N/A 14 in
HCP5716	N/A 23/64 in	N/A 5/8 in	N/A 1/4 in	N/A 14 in
HCP5717	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in	N/A 18 in
HCP5718	N/A 13/32 in	N/A 11/16 in	N/A 1/4 in	N/A 14 in
HCP5719	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in	N/A 14 in
HCP5720	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in	N/A 18 in
HCP5721	N/A 29/64 in	N/A 11/16 in	N/A 1/4 in	N/A 14 in
HCP5722	N/A 15/32 in	N/A 3/4 in	N/A 1/4 in	N/A 14 in
HCP5723	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in	N/A 14 in
HCP5724	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in	N/A 18 in
HCP5725	N/A 17/32 in	N/A 13/16 in	N/A 1/4 in	N/A 14 in
HCP5726	N/A 9/16 in	N/A 13/16 in	N/A 1/4 in	N/A 14 in
HCP5727	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in	N/A 14 in
HCP5728	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in	N/A 18 in
HCP5729	N/A 3/4 in	N/A 1 in	N/A 1/4 in	N/A 14 in
HCP5730	N/A 3/4 in	N/A 1 in	N/A 1/4 in	N/A 18 in
HCP5731	N/A 15/16 in	N/A 1 in	N/A 1/4 in	N/A 10 in
HCP5732	N/A 15/16 in	N/A 1 in	N/A 1/4 in	N/A 14 in
HCP5733	N/A 1 in	N/A 1-1/4 in	N/A 1/4 in	N/A 10 in
HCP5734	N/A 1 in	N/A 1-1/4 in	N/A 1/4 in	N/A 14 in
HCP5735	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in	N/A 18 in
HCP5736	N/A 15/64 in	N/A 7/16 in	N/A 3/16 in	N/A 18 in
HCP5737	N/A 7/64 in	N/A 0.25 in	N/A 1/8 in	N/A 18 in
HCP5738	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in	N/A 18 in
HCP5739	N/A 5/16 in	N/A 0.5 in	N/A 1/4 in	N/A 14 in
HCP5740	N/A 5/16 in	N/A 0.5 in	N/A 1/4 in	N/A 18 in
HCP5741	N/A 21/64 in	N/A 0.5 in	N/A 1/4 in	N/A 18 in
