Mold Leader Pins On JBF National

JBF National mold leader pins are manufactured from the highest quality steel and feature a nickel-chromium finish. These mold leader pins also feature a groove-less design to allow for optimum alignment between mold halves.

1 - 100 of 105 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Length (L) (in)

Dimension D2 (in)

Dimension T (in)

Dimension A (in)

Item #	Length (L)	Dimension D2	Dimension T	Dimension A

MLP900	N/A 1-3/4 in	N/A 5/8 in	N/A 3/16 in	N/A 1/2 in
MLP901	N/A 2-1/4 in	N/A 5/8 in	N/A 3/16 in	N/A 1/2 in
MLP902	N/A 2-3/4 in	N/A 5/8 in	N/A 3/16 in	N/A 1/2 in
MLP903	N/A 3-1/4 in	N/A 5/8 in	N/A 3/16 in	N/A 1/2 in
MLP904	N/A 3-3/4 in	N/A 5/8 in	N/A 3/16 in	N/A 1/2 in
MLP905	N/A 4-1/4 in	N/A 5/8 in	N/A 3/16 in	N/A 1/2 in
MLP906	N/A 1-3/4 in	N/A 3/4 in	N/A 3/16 in	N/A 5/4 in
MLP907	N/A 2-1/4 in	N/A 3/4 in	N/A 3/16 in	N/A 5/4 in
MLP908	N/A 2-3/4 in	N/A 3/4 in	N/A 3/16 in	N/A 5/4 in
MLP909	N/A 3-1/4 in	N/A 3/4 in	N/A 3/16 in	N/A 5/4 in
MLP910	N/A 3-3/4 in	N/A 3/4 in	N/A 3/16 in	N/A 5/4 in
MLP911	N/A 4-1/4 in	N/A 3/4 in	N/A 3/16 in	N/A 5/4 in
MLP912	N/A 1-3/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP913	N/A 2-1/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP914	N/A 2-3/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP915	N/A 3-1/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP916	N/A 3-3/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP917	N/A 4-1/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP918	N/A 4-3/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP919	N/A 5-1/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP920	N/A 5-3/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP921	N/A 6-1/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP922	N/A 6-3/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP923	N/A 7-1/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP924	N/A 7-3/4 in	N/A 1 in	N/A 3/16 in	N/A 3/4 in
MLP925	N/A 9-1/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP926	N/A 1-3/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP927	N/A 2-1/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP928	N/A 2-3/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP929	N/A 3-1/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP930	N/A 3-3/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP931	N/A 4-1/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP932	N/A 4-3/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP933	N/A 5-1/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP934	N/A 5-3/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP935	N/A 6-1/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP936	N/A 6-3/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP937	N/A 7-1/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP938	N/A 7-3/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP939	N/A 8-1/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP940	N/A 8-3/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP941	N/A 10-3/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP942	N/A 12-1/4 in	N/A 1-1/8 in	N/A 0.25 in	N/A 7/8 in
MLP943	N/A 1-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP944	N/A 2-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP945	N/A 2-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP946	N/A 3-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP947	N/A 3-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP948	N/A 4-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP949	N/A 4-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP950	N/A 5-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP951	N/A 5-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP952	N/A 6-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP953	N/A 6-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP954	N/A 7-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP955	N/A 7-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP956	N/A 8-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP957	N/A 8-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP958	N/A 9-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP959	N/A 9-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP960	N/A 10-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP961	N/A 10-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP962	N/A 11-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP963	N/A 11-3/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP964	N/A 12-1/4 in	N/A 1-1/4 in	N/A 0.25 in	N/A 1 in
MLP965	N/A 2-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP966	N/A 3-1/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP967	N/A 3-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP968	N/A 4-1/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP969	N/A 4-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP970	N/A 5-1/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP971	N/A 5-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP972	N/A 6-1/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP973	N/A 6-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP974	N/A 7-1/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP975	N/A 7-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP976	N/A 8-1/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP977	N/A 8-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP978	N/A 9-1/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP979	N/A 9-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP980	N/A 10-1/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP981	N/A 10-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP982	N/A 11-1/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP983	N/A 11-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP984	N/A 12-1/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP985	N/A 12-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP986	N/A 13-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP987	N/A 14-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP988	N/A 15-3/4 in	N/A 1-1/2 in	N/A 5/16 in	N/A 1-1/4 in
MLP989	N/A 3-3/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in
MLP990	N/A 4-1/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in
MLP991	N/A 4-3/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in
MLP992	N/A 5-1/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in
MLP993	N/A 5-3/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in
MLP994	N/A 6-1/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in
MLP995	N/A 6-3/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in
MLP996	N/A 7-3/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in
MLP997	N/A 8-3/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in
MLP998	N/A 9-3/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in
MLP999	N/A 10-3/4 in	N/A 1-3/4 in	N/A 5/16 in	N/A 1-1/4 in

1 - 100 of 105 | Results Per Page | View | Unit of Measure

1 2

No Preference
1-3/4
2-1/4
2-3/4
3-1/4
3-3/4
4-1/4
4-3/4
5-1/4
5-3/4
6-1/4
6-3/4
7-1/4
7-3/4
8-1/4
8-3/4
9-1/4
9-3/4
10-1/4
10-3/4
11-1/4
11-3/4
12-1/4
12-3/4
13-3/4
14-3/4
15-3/4

Catalog

Length (L) (in)

Dimension D2 (in)

Dimension T (in)

Dimension A (in)

Item #

Length (L)

Dimension D2

Dimension T

Dimension A

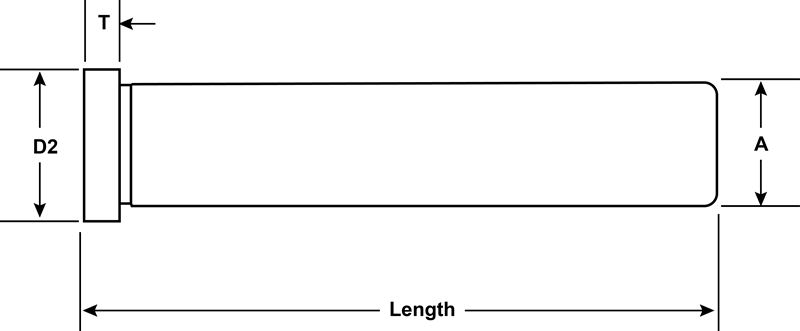

Drawings
