Soft Core Pins On JBF National

JBF National soft core-core pins come manufactured from hot forged and annealed steel and feature a ground finish. To ensure the highest quality, JBF National soft core pins are laser inspected throughout the entire manufacturing process. Soft core pin through hardness is 30/35 R/C.

1 - 60 of 60 | Results Per Page | View | Unit of Measure

Request Information Compare Items Search by Specification

Clear Filter

Dimension G (in)

Dimension T (in)

Dimension R (in)

Length (L) (in)

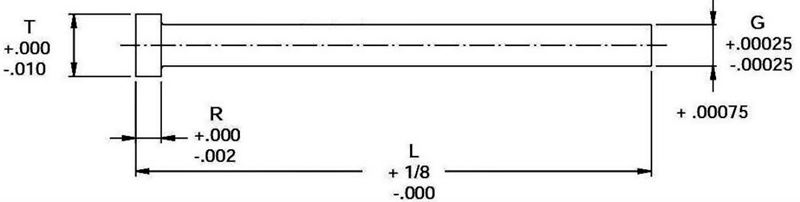

Item #	Dimension G	Dimension T	Dimension R	Length (L)

CP4235	N/A 3/32 in	N/A 0.25 in	N/A 1/8 in	N/A 3 in
CP4236	N/A 3/32 in	N/A 0.25 in	N/A 1/8 in	N/A 6 in
CP4237	N/A 3/32 in	N/A 0.25 in	N/A 1/8 in	N/A 10 in
CP4238	N/A 7/64 in	N/A 0.25 in	N/A 1/8 in	N/A 3 in
CP4239	N/A 7/64 in	N/A 0.25 in	N/A 1/8 in	N/A 6 in
CP4240	N/A 7/64 in	N/A 0.25 in	N/A 1/8 in	N/A 10 in
CP4241	N/A 1/8 in	N/A 0.25 in	N/A 1/8 in	N/A 3 in
CP4242	N/A 1/8 in	N/A 0.25 in	N/A 1/8 in	N/A 6 in
CP4243	N/A 1/8 in	N/A 0.25 in	N/A 1/8 in	N/A 10 in
CP4244	N/A 9/64 in	N/A 0.25 in	N/A 1/8 in	N/A 3 in
CP4245	N/A 9/64 in	N/A 0.25 in	N/A 1/8 in	N/A 6 in
CP4246	N/A 9/64 in	N/A 0.25 in	N/A 1/8 in	N/A 10 in
CP4247	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in	N/A 3 in
CP4248	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in	N/A 6 in
CP4249	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in	N/A 10 in
CP4250	N/A 11/64 in	N/A 11/32 in	N/A 3/16 in	N/A 3 in
CP4251	N/A 11/64 in	N/A 11/32 in	N/A 3/16 in	N/A 6 in
CP4252	N/A 11/64 in	N/A 11/32 in	N/A 3/16 in	N/A 10 in
CP4253	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in	N/A 3 in
CP4254	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in	N/A 6 in
CP4255	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in	N/A 10 in
CP4256	N/A 13/64 in	N/A 3/8 in	N/A 3/16 in	N/A 3 in
CP4257	N/A 13/64 in	N/A 3/8 in	N/A 3/16 in	N/A 6 in
CP4258	N/A 13/64 in	N/A 3/8 in	N/A 3/16 in	N/A 10 in
CP4259	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in	N/A 3 in
CP4260	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in	N/A 6 in
CP4261	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in	N/A 10 in
CP4262	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in	N/A 3 in
CP4263	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in	N/A 6 in
CP4264	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in	N/A 10 in
CP4265	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in	N/A 3 in
CP4266	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in	N/A 6 in
CP4267	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in	N/A 10 in
CP4268	N/A 5/16 in	N/A 0.5 in	N/A 1/4 in	N/A 3 in
CP4269	N/A 5/16 in	N/A 0.5 in	N/A 1/4 in	N/A 6 in
CP4270	N/A 5/16 in	N/A 0.5 in	N/A 1/4 in	N/A 10 in
CP4271	N/A 11/32 in	N/A 9/16 in	N/A 1/4 in	N/A 3 in
CP4272	N/A 11/32 in	N/A 9/16 in	N/A 1/4 in	N/A 6 in
CP4273	N/A 11/32 in	N/A 9/16 in	N/A 1/4 in	N/A 10 in
CP4274	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in	N/A 3 in
CP4275	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in	N/A 6 in
CP4276	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in	N/A 10 in
CP4277	N/A 13/32 in	N/A 11/16 in	N/A 1/4 in	N/A 3 in
CP4278	N/A 13/32 in	N/A 11/16 in	N/A 1/4 in	N/A 6 in
CP4279	N/A 13/32 in	N/A 11/16 in	N/A 1/4 in	N/A 10 in
CP4280	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in	N/A 3 in
CP4281	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in	N/A 6 in
CP4282	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in	N/A 10 in
CP4283	N/A 15/32 in	N/A 3/4 in	N/A 1/4 in	N/A 3 in
CP4284	N/A 15/32 in	N/A 3/4 in	N/A 1/4 in	N/A 6 in
CP4285	N/A 15/32 in	N/A 3/4 in	N/A 1/4 in	N/A 10 in
CP4286	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in	N/A 3 in
CP4287	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in	N/A 6 in
CP4288	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in	N/A 10 in
CP4289	N/A 9/16 in	N/A 13/16 in	N/A 1/4 in	N/A 6 in
CP4290	N/A 9/16 in	N/A 13/16 in	N/A 1/4 in	N/A 10 in
CP4291	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in	N/A 6 in
CP4292	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in	N/A 10 in
CP4293	N/A 3/4 in	N/A 1 in	N/A 1/4 in	N/A 6 in
CP4294	N/A 3/4 in	N/A 1 in	N/A 1/4 in	N/A 10 in
