Steel Shoulder Bushings On JBF National

JBF National steel shoulder bushings feature the highest quality case hardened steel with a HRC58-62 hardness rating, as well as a ground-in lead.

1 - 60 of 60 | Results Per Page | View | Unit of Measure

Request Information Compare Items Search by Specification

Clear Filter

Dimension D (in)

Length (in)

Dimension E (in)

Dimension H (in)

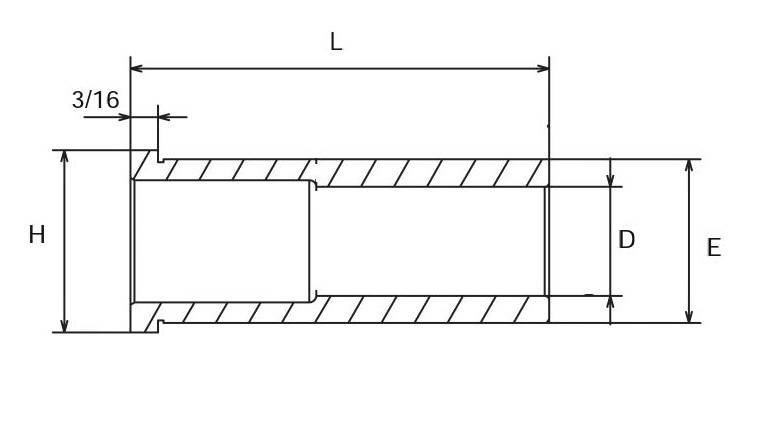

Item #	Dimension D	Length	Dimension E	Dimension H

BHG3689	N/A 0.5005 in	N/A 7/8 in	N/A 0.7505 in	N/A 7/8 in
BHG3694	N/A 0.6255 in	N/A 7/8 in	N/A 0.8755 in	N/A 1 in
BHG3699	N/A 0.7505 in	N/A 7/8 in	N/A 1.125 in	N/A 1.302 in
BHG3709	N/A 0.8755 in	N/A 7/8 in	N/A 1.2505 in	N/A 1.427 in
BHG3719	N/A 1.0005 in	N/A 7/8 in	N/A 1.3755 in	N/A 1.552 in
BHG3729	N/A 1.2505 in	N/A 7/8 in	N/A 1.6255 in	N/A 1.802 in
BHG3739	N/A 1.5005 in	N/A 7/8 in	N/A 2.0005 in	N/A 2.177 in
BHG3690	N/A 0.5005 in	N/A 1-3/8 in	N/A 0.7505 in	N/A 7/8 in
BHG3695	N/A 0.6255 in	N/A 1-3/8 in	N/A 0.8755 in	N/A 1 in
BHG3700	N/A 0.7505 in	N/A 1-3/8 in	N/A 1.125 in	N/A 1.302 in
BHG3710	N/A 0.8755 in	N/A 1-3/8 in	N/A 1.2505 in	N/A 1.427 in
BHG3720	N/A 1.0005 in	N/A 1-3/8 in	N/A 1.3755 in	N/A 1.552 in
BHG3730	N/A 1.2505 in	N/A 1-3/8 in	N/A 1.6255 in	N/A 1.802 in
BHG3740	N/A 1.5005 in	N/A 1-3/8 in	N/A 2.0005 in	N/A 2.177 in
BHG3691	N/A 0.5005 in	N/A 1-7/8 in	N/A 0.7505 in	N/A 7/8 in
BHG3696	N/A 0.6255 in	N/A 1-7/8 in	N/A 0.8755 in	N/A 1 in
BHG3701	N/A 0.7505 in	N/A 1-7/8 in	N/A 1.125 in	N/A 1.302 in
BHG3711	N/A 0.8755 in	N/A 1-7/8 in	N/A 1.2505 in	N/A 1.427 in
BHG3721	N/A 1.0005 in	N/A 1-7/8 in	N/A 1.3755 in	N/A 1.552 in
BHG3731	N/A 1.2505 in	N/A 1-7/8 in	N/A 1.6255 in	N/A 1.802 in
BHG3741	N/A 1.5005 in	N/A 1-7/8 in	N/A 2.0005 in	N/A 2.177 in
BHG3692	N/A 0.5005 in	N/A 2-3/8 in	N/A 0.7505 in	N/A 7/8 in
BHG3697	N/A 0.6255 in	N/A 2-3/8 in	N/A 0.8755 in	N/A 1 in
BHG3702	N/A 0.7505 in	N/A 2-3/8 in	N/A 1.125 in	N/A 1.302 in
BHG3712	N/A 0.8755 in	N/A 2-3/8 in	N/A 1.2505 in	N/A 1.427 in
BHG3722	N/A 1.0005 in	N/A 2-3/8 in	N/A 1.3755 in	N/A 1.552 in
BHG3732	N/A 1.2505 in	N/A 2-3/8 in	N/A 1.6255 in	N/A 1.802 in
BHG3742	N/A 1.5005 in	N/A 2-3/8 in	N/A 2.0005 in	N/A 2.177 in
BHG3693	N/A 0.5005 in	N/A 2-7/8 in	N/A 0.7505 in	N/A 7/8 in
BHG3698	N/A 0.6255 in	N/A 2-7/8 in	N/A 0.8755 in	N/A 1 in
BHG3703	N/A 0.7505 in	N/A 2-7/8 in	N/A 1.125 in	N/A 1.302 in
BHG3713	N/A 0.8755 in	N/A 2-7/8 in	N/A 1.2505 in	N/A 1.427 in
BHG3723	N/A 1.0005 in	N/A 2-7/8 in	N/A 1.3755 in	N/A 1.552 in
BHG3733	N/A 1.2505 in	N/A 2-7/8 in	N/A 1.6255 in	N/A 1.802 in
BHG3743	N/A 1.5005 in	N/A 2-7/8 in	N/A 2.0005 in	N/A 2.177 in
BHG3704	N/A 0.7505 in	N/A 3-3/8 in	N/A 1.125 in	N/A 1.302 in
BHG3714	N/A 0.8755 in	N/A 3-3/8 in	N/A 1.2505 in	N/A 1.427 in
BHG3724	N/A 1.0005 in	N/A 3-3/8 in	N/A 1.3755 in	N/A 1.552 in
BHG3734	N/A 1.2505 in	N/A 3-3/8 in	N/A 1.6255 in	N/A 1.802 in
BHG3744	N/A 1.5005 in	N/A 3-3/8 in	N/A 2.0005 in	N/A 2.177 in
BHG3705	N/A 0.7505 in	N/A 3-7/8 in	N/A 1.125 in	N/A 1.302 in
BHG3715	N/A 0.8755 in	N/A 3-7/8 in	N/A 1.2505 in	N/A 1.427 in
BHG3725	N/A 1.0005 in	N/A 3-7/8 in	N/A 1.3755 in	N/A 1.552 in
BHG3735	N/A 1.2505 in	N/A 3-7/8 in	N/A 1.6255 in	N/A 1.802 in
BHG3745	N/A 1.5005 in	N/A 3-7/8 in	N/A 2.0005 in	N/A 2.177 in
BHG3706	N/A 0.7505 in	N/A 4-3/8 in	N/A 1.125 in	N/A 1.302 in
BHG3716	N/A 0.8755 in	N/A 4-3/8 in	N/A 1.2505 in	N/A 1.427 in
BHG3726	N/A 1.0005 in	N/A 4-3/8 in	N/A 1.3755 in	N/A 1.552 in
BHG3736	N/A 1.2505 in	N/A 4-3/8 in	N/A 1.6255 in	N/A 1.802 in
BHG3746	N/A 1.5005 in	N/A 4-3/8 in	N/A 2.0005 in	N/A 2.177 in
BHG3707	N/A 0.7505 in	N/A 4-7/8 in	N/A 1.125 in	N/A 1.302 in
BHG3717	N/A 0.8755 in	N/A 4-7/8 in	N/A 1.2505 in	N/A 1.427 in
BHG3727	N/A 1.0005 in	N/A 4-7/8 in	N/A 1.3755 in	N/A 1.552 in
BHG3737	N/A 1.2505 in	N/A 4-7/8 in	N/A 1.6255 in	N/A 1.802 in
BHG3747	N/A 1.5005 in	N/A 4-7/8 in	N/A 2.0005 in	N/A 2.177 in
BHG3708	N/A 0.7505 in	N/A 5-7/8 in	N/A 1.125 in	N/A 1.302 in
BHG3718	N/A 0.8755 in	N/A 5-7/8 in	N/A 1.2505 in	N/A 1.427 in
BHG3728	N/A 1.0005 in	N/A 5-7/8 in	N/A 1.3755 in	N/A 1.552 in
BHG3738	N/A 1.2505 in	N/A 5-7/8 in	N/A 1.6255 in	N/A 1.802 in
BHG3748	N/A 1.5005 in	N/A 5-7/8 in	N/A 2.0005 in	N/A 2.177 in
