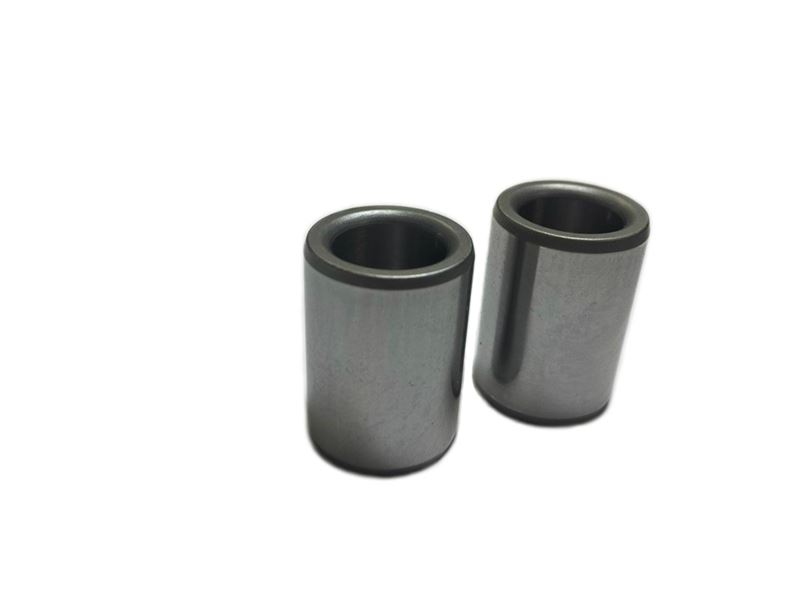

Straight Style Bushings On JBF National

1 - 12 of 12 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

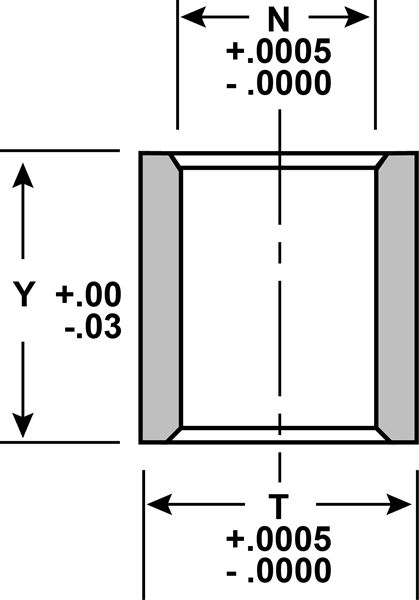

Item #	Dimension D (N)	Nominal Diameter	Dimension M (T)	Dimension L (Y)	Drawings

STB-4500	N/A 0.5005 in	N/A 1/2 in	N/A 0.7505 in	N/A 7/8 in
STB-4501	N/A 0.5005 in	N/A 1/2 in	N/A 0.7505 in	N/A 1-3/8 in
STB-4502	N/A 0.7505 in	N/A 3/4 in	N/A 1.1255 in	N/A 7/8 in
STB-4503	N/A 0.7505 in	N/A 3/4 in	N/A 1.1255 in	N/A 1-3/8 in
STB-4504	N/A 0.8755 in	N/A 7/8 in	N/A 1.2505 in	N/A 1-3/8 in
STB-4505	N/A 1.0005 in	N/A 1 in	N/A 1.3755 in	N/A 1-3/8 in
STB-4506	N/A 1.2505 in	N/A 1-1/4 in	N/A 1.6255 in	N/A 1-3/8 in
STB-4507	N/A 1.2505 in	N/A 1-1/4 in	N/A 1.6255 in	N/A 1-7/8 in
STB-4508	N/A 1.5005 in	N/A 1-1/2 in	N/A 2.0005 in	N/A 1-3/8 in
STB-4509	N/A 1.5005 in	N/A 1-1/2 in	N/A 2.0005 in	N/A 1-7/8 in
STB-4510	N/A 2.0005 in	N/A 2 in	N/A 2.5005 in	N/A 3-7/8 in
STB-4511	N/A 2.5005 in	N/A 2-1/2 in	N/A 3.2505 in	N/A 4-7/8 in
