Straight Style Nitride Ejector Pins On JBF National

JBF National nitride straight style ejector pins are manufactured using certified H-13 die steel and come completely nitride processed. These ejector pins feature a head that is both hot forged and annealed, in addition to being ground finished under the head for maximum seating. Our pins have a 45 R/C core hardness, 68/74 R/C surface hardness and are laser inspected throughout the entire manufacturing process.

1 - 100 of 161 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Length (in)

Dimension G (in)

Dimension H (in)

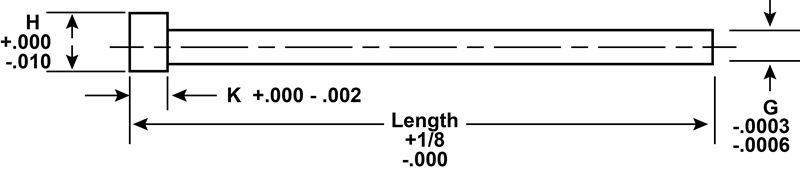

Item #	Length	Dimension G	Dimension H	Dimension K

HEP3555	N/A 6 in	N/A 3/64 in	N/A 1/4 in	N/A 1/8 in
HEP3556	N/A 6 in	N/A 1/16 in	N/A 1/4 in	N/A 1/8 in
HEP3557	N/A 6 in	N/A 5/64 in	N/A 1/4 in	N/A 1/8 in
HEP3558	N/A 6 in	N/A 3/32 in	N/A 1/4 in	N/A 1/8 in
HEP3559	N/A 6 in	N/A 7/64 in	N/A 1/4 in	N/A 1/8 in
HEP3560	N/A 6 in	N/A 1/8 in	N/A 1/4 in	N/A 1/8 in
HEP3561	N/A 10 in	N/A 1/8 in	N/A 1/4 in	N/A 1/8 in
HEP3562	N/A 10 in	N/A 1/8 in	N/A 1/4 in	N/A 1/8 in
HEP3563	N/A 14 in	N/A 1/8 in	N/A 1/4 in	N/A 1/8 in
HEP3564	N/A 10 in	N/A 9/64 in	N/A 1/4 in	N/A 1/8 in
HEP3565	N/A 6 in	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in
HEP3566	N/A 10 in	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in
HEP3567	N/A 10 in	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in
HEP3568	N/A 14 in	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in
HEP3569	N/A 18 in	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in
HEP3570	N/A 10 in	N/A 11/64 in	N/A 11/32 in	N/A 3/16 in
HEP3571	N/A 6 in	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in
HEP3572	N/A 10 in	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in
HEP3573	N/A 10 in	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in
HEP3574	N/A 14 in	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in
HEP3575	N/A 18 in	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in
HEP3576	N/A 25 in	N/A 3/16 in	N/A 3/8 in	N/A 3/16 in
HEP3577	N/A 10 in	N/A 13/64 in	N/A 3/8 in	N/A 3/16 in
HEP3578	N/A 6 in	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in
HEP3579	N/A 10 in	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in
HEP3581	N/A 14 in	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in
HEP3582	N/A 18 in	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in
HEP3583	N/A 25 in	N/A 7/32 in	N/A 13/32 in	N/A 3/16 in
HEP3584	N/A 10 in	N/A 15/64 in	N/A 13/32 in	N/A 3/16 in
HEP3585	N/A 6 in	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in
HEP3586	N/A 10 in	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in
HEP3587	N/A 10 in	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in
HEP3588	N/A 14 in	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in
HEP3589	N/A 18 in	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in
HEP3590	N/A 25 in	N/A 1/4 in	N/A 7/16 in	N/A 3/16 in
HEP3591	N/A 10 in	N/A 17/64 in	N/A 7/16 in	N/A 1/4 in
HEP3592	N/A 6 in	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in
HEP3593	N/A 10 in	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in
HEP3594	N/A 14 in	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in
HEP3595	N/A 25 in	N/A 9/32 in	N/A 7/16 in	N/A 1/4 in
HEP3596	N/A 10 in	N/A 19/64 in	N/A 1/2 in	N/A 1/4 in
HEP3597	N/A 6 in	N/A 5/16 in	N/A 1/2 in	N/A 1/4 in
HEP3598	N/A 10 in	N/A 5/16 in	N/A 1/2 in	N/A 1/4 in
HEP3599	N/A 10 in	N/A 5/16 in	N/A 1/2 in	N/A 1/4 in
HEP3600	N/A 14 in	N/A 5/16 in	N/A 1/2 in	N/A 1/4 in
HEP3601	N/A 18 in	N/A 5/16 in	N/A 1/2 in	N/A 1/4 in
HEP3602	N/A 25 in	N/A 5/16 in	N/A 1/2 in	N/A 1/4 in
HEP3603	N/A 10 in	N/A 21/64 in	N/A 9/16 in	N/A 1/4 in
HEP3604	N/A 6 in	N/A 11/32 in	N/A 9/16 in	N/A 1/4 in
HEP3605	N/A 10 in	N/A 11/32 in	N/A 9/16 in	N/A 1/4 in
HEP3606	N/A 10 in	N/A 23/64 in	N/A 5/8 in	N/A 1/4 in
HEP3607	N/A 6 in	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in
HEP3608	N/A 10 in	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in
HEP3609	N/A 10 in	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in
HEP3610	N/A 14 in	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in
HEP3611	N/A 18 in	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in
HEP3612	N/A 25 in	N/A 3/8 in	N/A 5/8 in	N/A 1/4 in
HEP3613	N/A 6 in	N/A 13/32 in	N/A 11/16 in	N/A 1/4 in
HEP3614	N/A 10 in	N/A 13/32 in	N/A 11/16 in	N/A 1/4 in
HEP3615	N/A 6 in	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in
HEP3616	N/A 10 in	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in
HEP3617	N/A 14 in	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in
HEP3618	N/A 18 in	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in
HEP3619	N/A 25 in	N/A 7/16 in	N/A 11/16 in	N/A 1/4 in
HEP3620	N/A 6 in	N/A 15/32 in	N/A 3/4 in	N/A 1/4 in
HEP3621	N/A 10 in	N/A 15/32 in	N/A 3/4 in	N/A 1/4 in
HEP3622	N/A 6 in	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in
HEP3623	N/A 10 in	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in
HEP3624	N/A 10 in	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in
HEP3625	N/A 14 in	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in
HEP3626	N/A 18 in	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in
HEP3627	N/A 25 in	N/A 1/2 in	N/A 3/4 in	N/A 1/4 in
HEP3628	N/A 6 in	N/A 9/16 in	N/A 13/16 in	N/A 1/4 in
HEP3629	N/A 10 in	N/A 9/16 in	N/A 13/16 in	N/A 1/4 in
HEP3630	N/A 14 in	N/A 9/16 in	N/A 13/16 in	N/A 1/4 in
HEP3631	N/A 6 in	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in
HEP3632	N/A 10 in	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in
HEP3633	N/A 14 in	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in
HEP3634	N/A 18 in	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in
HEP3635	N/A 25 in	N/A 5/8 in	N/A 7/8 in	N/A 1/4 in
HEP3636	N/A 6 in	N/A 11/16 in	N/A 15/16 in	N/A 1/4 in
HEP3637	N/A 10 in	N/A 11/16 in	N/A 15/16 in	N/A 1/4 in
HEP3638	N/A 6 in	N/A 3/4 in	N/A 1 in	N/A 1/4 in
HEP3639	N/A 10 in	N/A 3/4 in	N/A 1 in	N/A 1/4 in
HEP3640	N/A 14 in	N/A 3/4 in	N/A 1 in	N/A 1/4 in
HEP3641	N/A 18 in	N/A 3/4 in	N/A 1 in	N/A 1/4 in
HEP3642	N/A 25 in	N/A 3/4 in	N/A 1 in	N/A 1/4 in
HEP3643	N/A 10 in	N/A 1 in	N/A 1 1/4 in	N/A 1/4 in
HEP3644	N/A 14 in	N/A 1 in	N/A 1 1/4 in	N/A 1/4 in
HEP3645	N/A 18 in	N/A 1 in	N/A 1 1/4 in	N/A 1/4 in
HEP3646	N/A 25 in	N/A 1 in	N/A 1 1/4 in	N/A 1/4 in
HEP3700	N/A 14 in	N/A 9/64 in	N/A 1/4 in	N/A 1/8 in
HEP3701	N/A 25 in	N/A 5/32 in	N/A 9/32 in	N/A 5/32 in
HEP3703	N/A 18 in	N/A 15/64 in	N/A 13/32 in	N/A 3/16 in
HEP3704	N/A 18 in	N/A 17/64 in	N/A 7/16 in	N/A 1/4 in
HEP3705	N/A 25 in	N/A 17/64 in	N/A 7/16 in	N/A 1/4 in
HEP3706	N/A 18 in	N/A 19/64 in	N/A 1/2 in	N/A 1/4 in
HEP3707	N/A 18 in	N/A 21/64 in	N/A 9/16 in	N/A 1/4 in
HEP3708	N/A 25 in	N/A 21/64 in	N/A 9/16 in	N/A 1/4 in
HEP3709	N/A 18 in	N/A 11/32 in	N/A 9/16 in	N/A 1/4 in
