• U Series Sprue Bushings
  • <!-U Series Sprue Bushings - 2->
JBF National U series sprue bushings come hardened and ground, and feature a 43/45 RC through hardness.
1 - 20 of 20 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

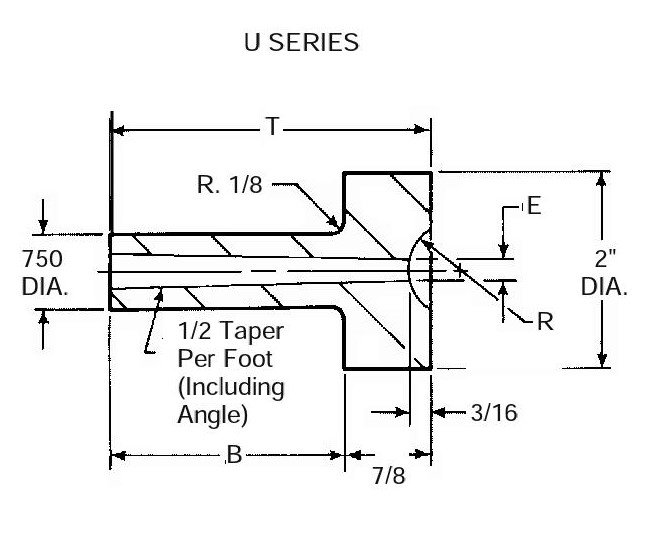

Dimension T (in)

Dimension B (in)

Dimension E (in)

Dimension R (in)

Item #

Dimension T

Dimension B

Dimension E

Dimension R

Drawings

N/A 1-25/32 in N/A 29/32 in N/A 5/32 in N/A 1/2 in

N/A 2-9/32 in N/A 1-13/32 in N/A 5/32 in N/A 1/2 in

N/A 2-25/32 in N/A 1-29/32 in N/A 5/32 in N/A 1/2 in

N/A 3-9/32 in N/A 2-13/32 in N/A 5/32 in N/A 1/2 in

N/A 3-25/32 in N/A 2-29/32 in N/A 5/32 in N/A 1/2 in

N/A 1-25/32 in N/A 29/32 in N/A 7/32 in N/A 1/2 in

N/A 2-9/32 in N/A 1-13/32 in N/A 7/32 in N/A 1/2 in

N/A 2-25/32 in N/A 1-29/32 in N/A 7/32 in N/A 1/2 in

N/A 3-9/32 in N/A 2-13/32 in N/A 7/32 in N/A 1/2 in

N/A 3-25/32 in N/A 2-29/32 in N/A 7/32 in N/A 1/2 in

N/A 1-25/32 in N/A 29/32 in N/A 5/32 in N/A 3/4 in

N/A 2-9/32 in N/A 1-13/32 in N/A 5/32 in N/A 3/4 in

N/A 2-25/32 in N/A 1-29/32 in N/A 5/32 in N/A 3/4 in

N/A 3-9/32 in N/A 2-13/32 in N/A 5/32 in N/A 3/4 in

N/A 3-25/32 in N/A 2-29/32 in N/A 5/32 in N/A 3/4 in

N/A 1-25/32 in N/A 29/32 in N/A 7/32 in N/A 3/4 in

N/A 2-9/32 in N/A 1-13/32 in N/A 7/32 in N/A 3/4 in

N/A 2-25/32 in N/A 1-29/32 in N/A 7/32 in N/A 3/4 in

N/A 3-9/32 in N/A 2-13/32 in N/A 7/32 in N/A 3/4 in

N/A 3-25/32 in N/A 2-29/32 in N/A 7/32 in N/A 3/4 in
