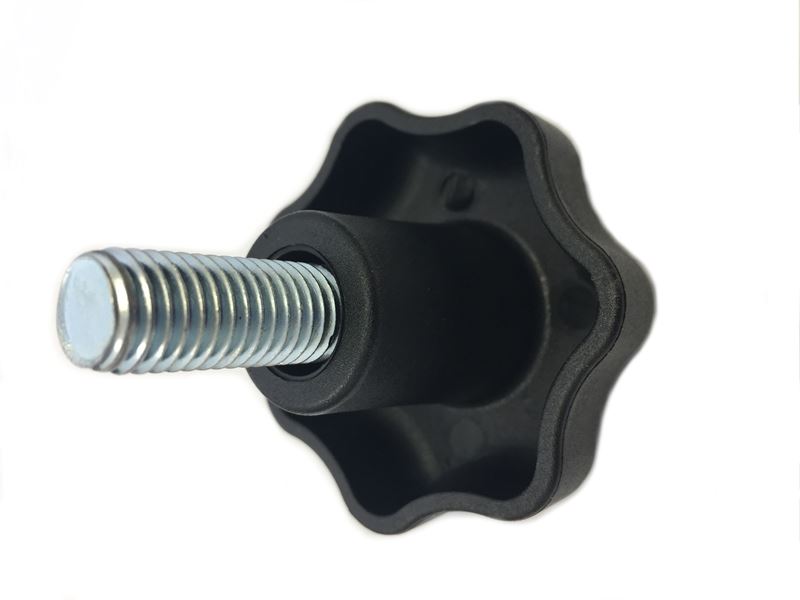

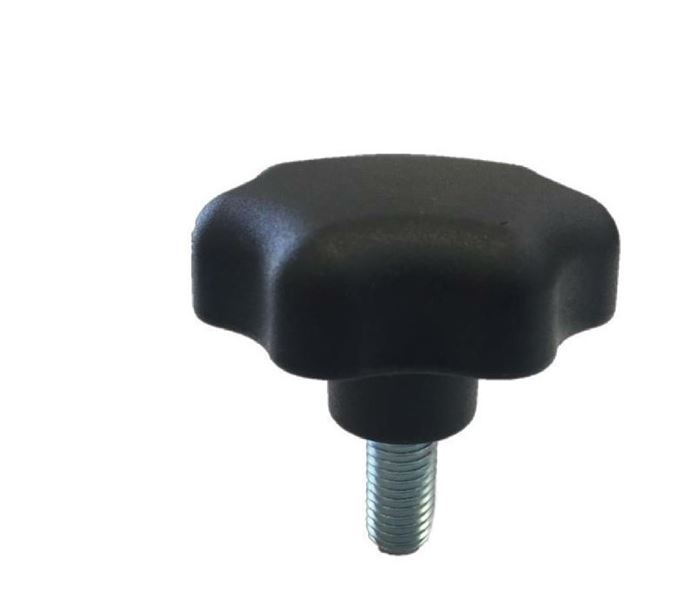

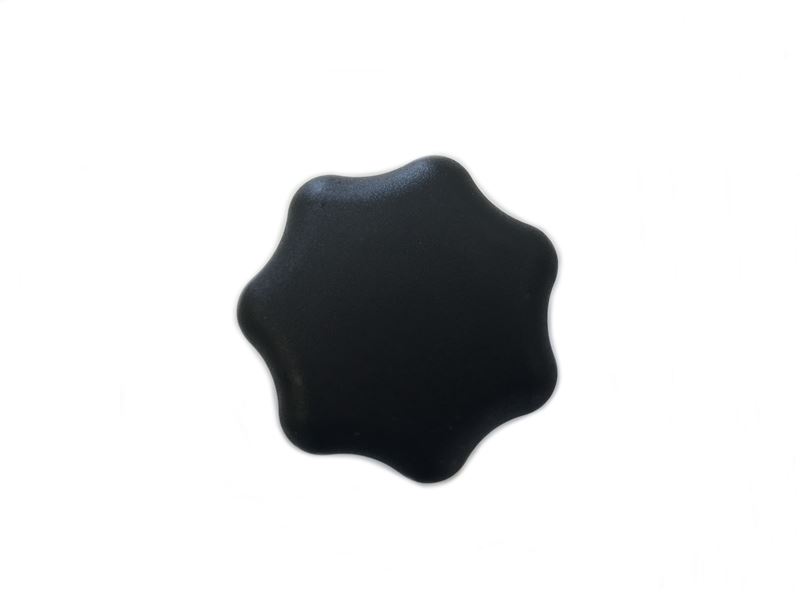

JBF National's studded thermoplastic palm knob features a 7- lobe design that ensures positive palm grip. The lack of mold lines, combined with the smooth edges of its thermoplastic grip means complete operator hand comfort for years to come. Variety of stud lengths available.
1 - 35 of 35 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Knob Diameter (A) (mm)

External Thread (B)

Thread Length (C) (mm)

Knob Height (D) (mm)

Hub Diameter (E) (mm)

Item #

Knob Diameter (A)

External Thread (B)

Thread Length (C)

Knob Height (D)

Hub Diameter (E)

Drawings

N/A 50 mm N/A M10x1.5 N/A 15 mm N/A 32 mm N/A 21 mm

N/A 50 mm N/A M10x1.5 N/A 20 mm N/A 32 mm N/A 21 mm

N/A 50 mm N/A M10x1.5 N/A 25 mm N/A 32 mm N/A 21 mm

N/A 50 mm N/A M10x1.5 N/A 30 mm N/A 32 mm N/A 21 mm

N/A 50 mm N/A M10x1.5 N/A 35 mm N/A 32 mm N/A 21 mm

N/A 50 mm N/A M10x1.5 N/A 40 mm N/A 32 mm N/A 21 mm

N/A 50 mm N/A M10x1.5 N/A 45 mm N/A 32 mm N/A 21 mm

N/A 50 mm N/A M10x1.5 N/A 60 mm N/A 32 mm N/A 21 mm

N/A 63 mm N/A M12x1.75 N/A 20 mm N/A 40 mm N/A 24 mm

N/A 63 mm N/A M12x1.75 N/A 25 mm N/A 40 mm N/A 24 mm

N/A 63 mm N/A M12x1.75 N/A 30 mm N/A 40 mm N/A 24 mm

N/A 63 mm N/A M12x1.75 N/A 35 mm N/A 40 mm N/A 24 mm

N/A 63 mm N/A M12x1.75 N/A 40 mm N/A 40 mm N/A 24 mm

N/A 63 mm N/A M12x1.75 N/A 50 mm N/A 40 mm N/A 24 mm

N/A 63 mm N/A M12x1.75 N/A 60 mm N/A 40 mm N/A 24 mm

N/A 25 mm N/A M5x0.8 N/A 10 mm N/A 16 mm N/A 12 mm

N/A 25 mm N/A M5x0.8 N/A 15 mm N/A 16 mm N/A 12 mm

N/A 25 mm N/A M5x0.8 N/A 20 mm N/A 16 mm N/A 12 mm

N/A 25 mm N/A M5x0.8 N/A 25 mm N/A 16 mm N/A 12 mm

N/A 25 mm N/A M5x0.8 N/A 30 mm N/A 16 mm N/A 12 mm

N/A 32 mm N/A M6x1 N/A 10 mm N/A 20 mm N/A 14 mm

N/A 32 mm N/A M6x1 N/A 15 mm N/A 20 mm N/A 14 mm

N/A 32 mm N/A M6x1 N/A 20 mm N/A 20 mm N/A 14 mm

N/A 32 mm N/A M6x1 N/A 25 mm N/A 20 mm N/A 14 mm

N/A 32 mm N/A M6x1 N/A 30 mm N/A 20 mm N/A 14 mm

N/A 32 mm N/A M6x1 N/A 35 mm N/A 20 mm N/A 14 mm

N/A 32 mm N/A M6x1 N/A 45 mm N/A 20 mm N/A 14 mm

N/A 40 mm N/A M8x1.25 N/A 15 mm N/A 25 mm N/A 17 mm

N/A 40 mm N/A M8x1.25 N/A 20 mm N/A 25 mm N/A 17 mm

N/A 40 mm N/A M8x1.25 N/A 25 mm N/A 25 mm N/A 17 mm

N/A 40 mm N/A M8x1.25 N/A 30 mm N/A 25 mm N/A 17 mm

N/A 40 mm N/A M8x1.25 N/A 35 mm N/A 25 mm N/A 17 mm

N/A 40 mm N/A M8x1.25 N/A 40 mm N/A 25 mm N/A 17 mm

N/A 40 mm N/A M8x1.25 N/A 50 mm N/A 25 mm N/A 17 mm

N/A 40 mm N/A M8x1.25 N/A 60 mm N/A 25 mm N/A 17 mm
