• Studded Soft Touch 5 Lobe Hand Knobs
  • Studded Soft Touch 5 Lobe Hand Knobs - 3
  • Studded Soft Touch 5 Lobe Hand Knobs - 4
  • <!-Studded Soft Touch 5 Lobe Hand Knobs - 2->

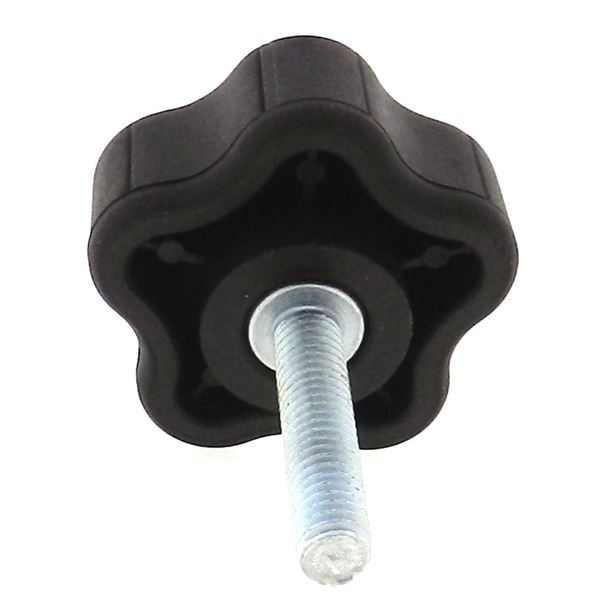

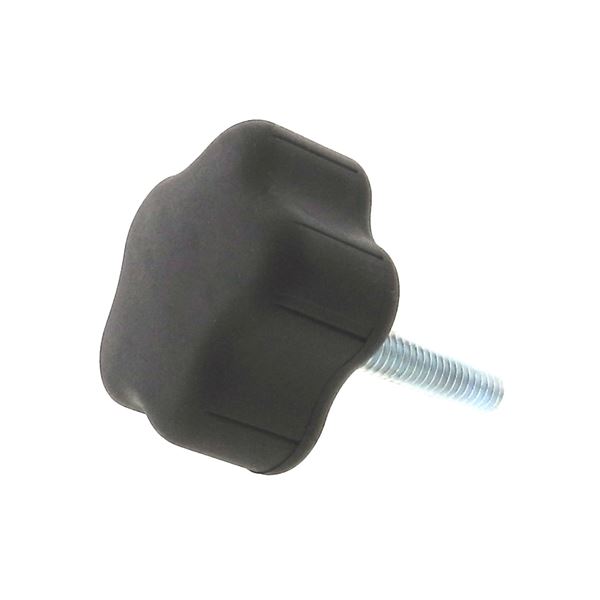

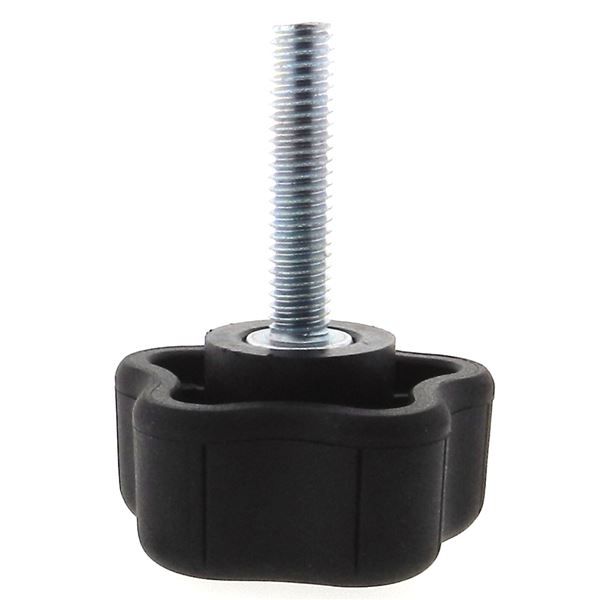

JBF National’s 5 lobe hand knob (also known as a clamping knob) comes manufactured from an ultra Soft Touch Thermoplastic Elastomer over top a high quality polypropylene reinforced base knob, to ensure ultimate durability and operator grip comfort. Hand knob features a brass tapped insert, that has been zinc plated for added durability and corrosion resistance.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Dimension t

Dimension L

Drawings

N/A 1.38 in N/A 1.09 in N/A 0.68 in N/A 0.23 in N/A 1/4-20 N/A 1/2 in

N/A 2.26 in N/A 1.09 in N/A 1.25 in N/A 0.16 in N/A 5/16-18 N/A 1-1/2 in
