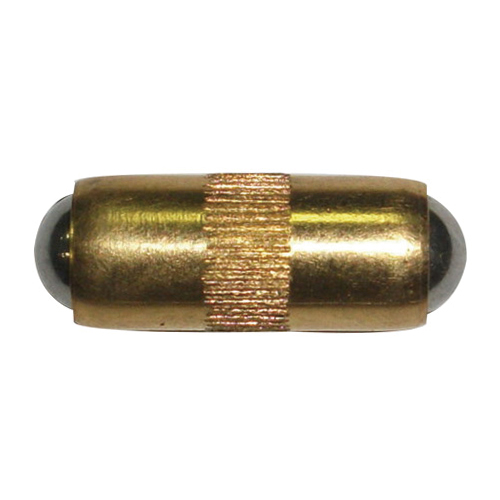

This double ended spring plunger from JBF National is manufactured from a high quality copper body and two stainless steel balls. Spring plungers are utilized across of wide variety of industries and products, including woodworking, medical and military applications. Contact a JBF National sales engineer today for further information.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

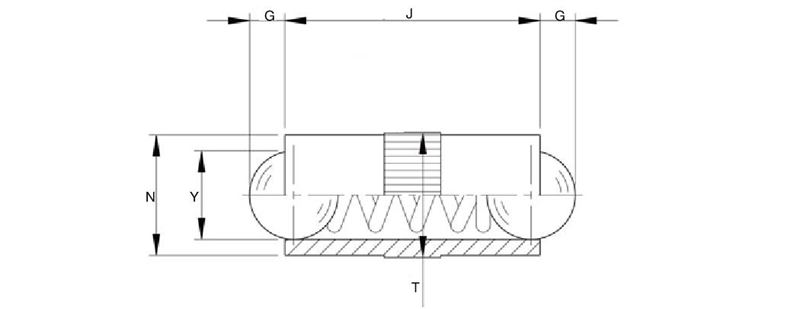

Dimension N

Dimension Y

Dimension T

Dimension J

Dimension G

Drawings

N/A 3 mm N/A 2.5 mm N/A 3.1 mm N/A 7.3 mm N/A 0.8 mm

N/A 4 mm N/A 3 mm N/A 4.1 mm N/A 9 mm N/A 0.9 mm

N/A 5 mm N/A 4 mm N/A 5.1 mm N/A 10.8 mm N/A 1.2 mm

N/A 7 mm N/A 6 mm N/A 7.2 mm N/A 14.00 mm N/A 2 mm

N/A 8 mm N/A 6.5 mm N/A 8.3 mm N/A 18 mm N/A 2.1 mm
