No Flange Press Fit Ball Plungers On JBF National

JBF National's no flange press fit ball plungers are excellent for all of your light duty alignment and attachment applications. This plunger features a stainless steel spring and plunger ball, and comes available in either a stainless steel or black thermoplastic body. Ball plungers are utilized across of wide variety of industries and products, including woodworking, medical and military applications. Contact a JBF National sales engineer today for further information.

1 - 8 of 8 | Results Per Page | View | Unit of Measure

Request Information Compare Items

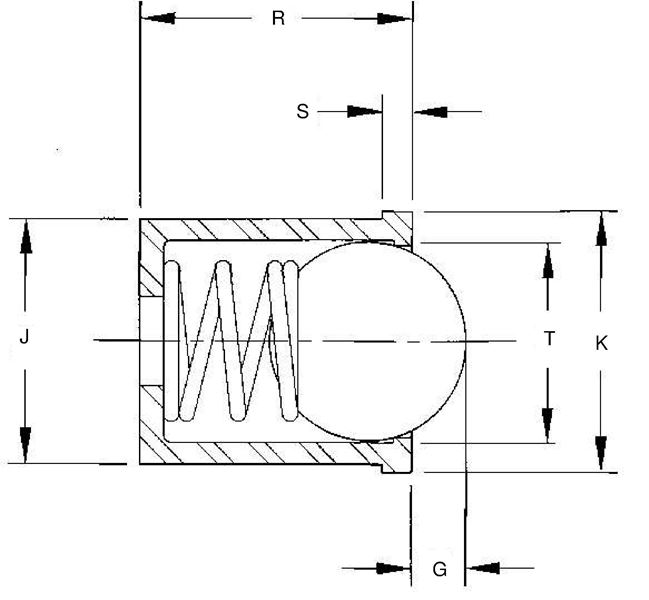

Item #	Dimension J	Dimension R	Ball Diameter T	Dimension K	Dimension S	Dimension G

1PFBWF-1000	N/A 0.158 in	N/A 0.197 in	N/A 0.118 in	N/A 0.181 in	N/A 0.04 in	N/A 0.028 in
1PFBWF-1001	N/A 0.197 in	N/A 0.236 in	N/A 0.157 in	N/A 0.22 in	N/A 0.04 in	N/A 0.039 in
2PFBWF-1002	N/A 0.235 in	N/A 0.278 in	N/A 0.197 in	N/A 0.256 in	N/A 0.04 in	N/A 0.069 in
2PFBWF-1003	N/A 0.315 in	N/A 0.354 in	N/A 0.256 in	N/A 0.386 in	N/A 0.04 in	N/A 0.071 in
1PFBWF-1000SS	N/A 0.158 in	N/A 0.197 in	N/A 0.118 in	N/A 0.181 in	N/A 0.04 in	N/A 0.032 in
1PFBWF-1001SS	N/A 0.197 in	N/A 0.236 in	N/A 0.157 in	N/A 0.22 in	N/A 0.04 in	N/A 0.039 in
2PFBWF-1002SS	N/A 0.235 in	N/A 0.278 in	N/A 0.197 in	N/A 0.256 in	N/A 0.04 in	N/A 0.069 in
2PFBWF-1003SS	N/A 0.315 in	N/A 0.354 in	N/A 0.256 in	N/A 0.386 in	N/A 0.04 in	N/A 0.071 in
