• Stainless Steel Metric Press Fit Ball Plungers
  • <!-Stainless Steel Metric Press Fit Ball Plungers - 2->
JBF National's metric press fit ball plunger features a body, plunger ball, and internal spring manufactured from the highest quality stainless steel. Ball plungers are utilized across of wide variety of industries and products, including woodworking, medical and military applications. Contact a JBF National sales engineer today, for further information.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

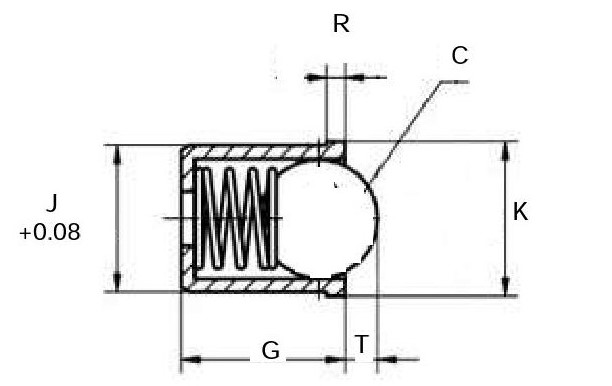

Dimension J

Dimension K

Dimension G

Dimension R

Dimension T

Dimension C

Drawings

N/A 4 mm N/A 4.6 mm N/A 5 mm N/A 1 mm N/A 0.8 mm N/A 3 mm

N/A 5 mm N/A 5.6 mm N/A 6 mm N/A 1 mm N/A 1 mm N/A 4 mm

N/A 6 mm N/A 6.5 mm N/A 7 mm N/A 1 mm N/A 1.5 mm N/A 5 mm

N/A 8 mm N/A 8.5 mm N/A 9 mm N/A 1 mm N/A 1.8 mm N/A 6.5 mm

N/A 10 mm N/A 12 mm N/A 13.5 mm N/A 2.5 mm N/A 2.7 mm N/A 8 mm

N/A 12 mm N/A 14 mm N/A 16 mm N/A 2.5 mm N/A 3.5 mm N/A 10 mm
