• Internal Thread Two Post Pull Handle Bars

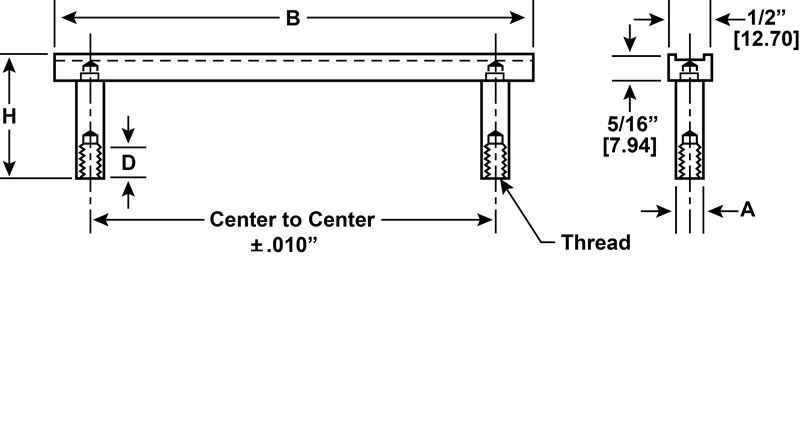

  • <!-Two Post Pull Handle Line Drawing->
1 - 100 of 200 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Overall Height (H) (in)

Overall Height (H) (mm)

Center to Center (C to C) (in)

Center to Center (C to C) (mm)

Thread Size

Post Diameter (A) (in)

Post Diameter (A) (mm)

Length (B) (in)

Length (B) (mm)

Item #

Overall Height (H)

Center to Center (C to C)

Thread Size

Post Diameter (A)

Length (B)

Drawings

N/A 1-1/16 in26.99 mm N/A 2 in50.80 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 2-7/8 in73.03 mm

N/A 1-1/16 in26.99 mm N/A 2-1/4 in57.15 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 3-1/8 in79.38 mm

N/A 1-1/16 in26.99 mm N/A 2-1/2 in63.50 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 3-3/8 in85.73 mm

N/A 1-1/16 in26.99 mm N/A 3 in76.20 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 3-7/8 in98.43 mm

N/A 1-1/16 in26.99 mm N/A 3-1/2 in88.90 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 4-3/8 in111.13 mm

N/A 1-1/16 in26.99 mm N/A 4 in101.60 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 4-7/8 in123.83 mm

N/A 1-1/16 in26.99 mm N/A 4-1/4 in107.95 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-1/8 in130.18 mm

N/A 1-1/16 in26.99 mm N/A 4-1/2 in114.30 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-3/8 in136.53 mm

N/A 1-1/16 in26.99 mm N/A 4-9/16 in115.89 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-7/16 in138.11 mm

N/A 1-1/16 in26.99 mm N/A 5 in127.00 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-7/8 in149.23 mm

N/A 1-1/16 in26.99 mm N/A 2 in50.80 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 2-7/8 in73.03 mm

N/A 1-1/16 in26.99 mm N/A 2-1/4 in57.15 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 3-1/8 in79.38 mm

N/A 1-1/16 in26.99 mm N/A 2-1/2 in63.50 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 3-3/8 in85.73 mm

N/A 1-1/16 in26.99 mm N/A 3 in76.20 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 3-7/8 in98.43 mm

N/A 1-1/16 in26.99 mm N/A 3-1/2 in88.90 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 4-3/8 in111.13 mm

N/A 1-1/16 in26.99 mm N/A 4 in101.60 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 4-7/8 in123.83 mm

N/A 1-1/16 in26.99 mm N/A 4-1/4 in107.95 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-1/8 in130.18 mm

N/A 1-1/16 in26.99 mm N/A 4-1/2 in114.30 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-3/8 in136.53 mm

N/A 1-1/16 in26.99 mm N/A 4-9/16 in115.89 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-7/16 in138.11 mm

N/A 1-1/16 in26.99 mm N/A 5 in127.00 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-7/8 in149.23 mm

N/A 1-1/16 in26.99 mm N/A 2 in50.80 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 2-7/8 in73.03 mm

N/A 1-1/16 in26.99 mm N/A 2-1/4 in57.15 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 3-1/8 in79.38 mm

N/A 1-1/16 in26.99 mm N/A 2-1/2 in63.50 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 3-3/8 in85.73 mm

N/A 1-1/16 in26.99 mm N/A 3 in76.20 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 3-7/8 in98.43 mm

N/A 1-1/16 in26.99 mm N/A 3-1/2 in88.90 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 4-3/8 in111.13 mm

N/A 1-1/16 in26.99 mm N/A 4 in101.60 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 4-7/8 in123.83 mm

N/A 1-1/16 in26.99 mm N/A 4-1/4 in107.95 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 5-1/8 in130.18 mm

N/A 1-1/16 in26.99 mm N/A 4-1/2 in114.30 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 5-3/8 in136.53 mm

N/A 1-1/16 in26.99 mm N/A 4-9/16 in115.89 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 5-7/16 in138.11 mm

N/A 1-1/16 in26.99 mm N/A 5 in127.00 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 5-7/8 in149.23 mm

N/A 1-1/16 in26.99 mm N/A 2 in50.80 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 2-7/8 in73.03 mm

N/A 1-1/16 in26.99 mm N/A 2-1/4 in57.15 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 3-1/8 in79.38 mm

N/A 1-1/16 in26.99 mm N/A 2-1/2 in63.50 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 3-3/8 in85.73 mm

N/A 1-1/16 in26.99 mm N/A 3 in76.20 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 3-7/8 in98.43 mm

N/A 1-1/16 in26.99 mm N/A 3-1/2 in88.90 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 4-3/8 in111.13 mm

N/A 1-1/16 in26.99 mm N/A 4 in101.60 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 4-7/8 in123.83 mm

N/A 1-1/16 in26.99 mm N/A 4-1/4 in107.95 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 5-1/8 in130.18 mm

N/A 1-1/16 in26.99 mm N/A 4-1/2 in114.30 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 5-3/8 in136.53 mm

N/A 1-1/16 in26.99 mm N/A 4-9/16 in115.89 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 5-7/16 in138.11 mm

N/A 1-1/16 in26.99 mm N/A 5 in127.00 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 5-7/8 in149.23 mm

N/A 1-3/16 in30.16 mm N/A 2 in50.80 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 2-7/8 in73.03 mm

N/A 1-3/16 in30.16 mm N/A 2-1/4 in57.15 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 3-1/8 in79.38 mm

N/A 1-3/16 in30.16 mm N/A 2-1/2 in63.50 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 3-3/8 in85.73 mm

N/A 1-3/16 in30.16 mm N/A 3 in76.20 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 3-7/8 in98.43 mm

N/A 1-3/16 in30.16 mm N/A 3-1/2 in88.90 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 4-3/8 in111.13 mm

N/A 1-3/16 in30.16 mm N/A 4 in101.60 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 4-7/8 in123.83 mm

N/A 1-3/16 in30.16 mm N/A 4-1/4 in107.95 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-1/8 in130.18 mm

N/A 1-3/16 in30.16 mm N/A 4-1/2 in114.30 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-3/8 in136.53 mm

N/A 1-3/16 in30.16 mm N/A 4-9/16 in115.89 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-7/16 in138.11 mm

N/A 1-3/16 in30.16 mm N/A 5 in127.00 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-7/8 in149.23 mm

N/A 1-3/16 in30.16 mm N/A 2 in50.80 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 2-7/8 in73.03 mm

N/A 1-3/16 in30.16 mm N/A 2-1/4 in57.15 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 3-1/8 in79.38 mm

N/A 1-3/16 in30.16 mm N/A 2-1/2 in63.50 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 3-3/8 in85.73 mm

N/A 1-3/16 in30.16 mm N/A 3 in76.20 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 3-7/8 in98.43 mm

N/A 1-3/16 in30.16 mm N/A 3-1/2 in88.90 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 4-3/8 in111.13 mm

N/A 1-3/16 in30.16 mm N/A 4 in101.60 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 4-7/8 in123.83 mm

N/A 1-3/16 in30.16 mm N/A 4-1/4 in107.95 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-1/8 in130.18 mm

N/A 1-3/16 in30.16 mm N/A 4-1/2 in114.30 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-3/8 in136.53 mm

N/A 1-3/16 in30.16 mm N/A 4-9/16 in115.89 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-7/16 in138.11 mm

N/A 1-3/16 in30.16 mm N/A 5 in127.00 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-7/8 in149.23 mm

N/A 1-3/16 in30.16 mm N/A 2 in50.80 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 2-7/8 in73.03 mm

N/A 1-3/16 in30.16 mm N/A 2-1/4 in57.15 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 3-1/8 in79.38 mm

N/A 1-3/16 in30.16 mm N/A 2-1/2 in63.50 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 3-3/8 in85.73 mm

N/A 1-3/16 in30.16 mm N/A 3 in76.20 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 3-7/8 in98.43 mm

N/A 1-3/16 in30.16 mm N/A 3-1/2 in88.90 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 4-3/8 in111.13 mm

N/A 1-3/16 in30.16 mm N/A 4 in101.60 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 4-7/8 in123.83 mm

N/A 1-3/16 in30.16 mm N/A 4-1/4 in107.95 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 5-1/8 in130.18 mm

N/A 1-3/16 in30.16 mm N/A 4-1/2 in114.30 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 5-3/8 in136.53 mm

N/A 1-3/16 in30.16 mm N/A 4-9/16 in115.89 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 5-7/16 in138.11 mm

N/A 1-3/16 in30.16 mm N/A 5 in127.00 mm N/A 8-32 N/A 3/8 in9.53 mm N/A 5-7/8 in149.23 mm

N/A 1-3/16 in30.16 mm N/A 2 in50.80 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 2-7/8 in73.03 mm

N/A 1-3/16 in30.16 mm N/A 2-1/4 in57.15 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 3-1/8 in79.38 mm

N/A 1-3/16 in30.16 mm N/A 2-1/2 in63.50 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 3-3/8 in85.73 mm

N/A 1-3/16 in30.16 mm N/A 3 in76.20 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 3-7/8 in98.43 mm

N/A 1-3/16 in30.16 mm N/A 3-1/2 in88.90 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 4-3/8 in111.13 mm

N/A 1-3/16 in30.16 mm N/A 4 in101.60 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 4-7/8 in123.83 mm

N/A 1-3/16 in30.16 mm N/A 4-1/4 in107.95 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 5-1/8 in130.18 mm

N/A 1-3/16 in30.16 mm N/A 4-1/2 in114.30 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 5-3/8 in136.53 mm

N/A 1-3/16 in30.16 mm N/A 4-9/16 in115.89 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 5-7/16 in138.11 mm

N/A 1-3/16 in30.16 mm N/A 5 in127.00 mm N/A 10-32 N/A 3/8 in9.53 mm N/A 5-7/8 in149.23 mm

N/A 1-5/16 in33.34 mm N/A 2 in50.80 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 2-7/8 in73.03 mm

N/A 1-5/16 in33.34 mm N/A 2-1/4 in57.15 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 3-1/8 in79.38 mm

N/A 1-5/16 in33.34 mm N/A 2-1/2 in63.50 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 3-3/8 in85.73 mm

N/A 1-5/16 in33.34 mm N/A 3 in76.20 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 3-7/8 in98.43 mm

N/A 1-5/16 in33.34 mm N/A 3-1/2 in88.90 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 4-3/8 in111.13 mm

N/A 1-5/16 in33.34 mm N/A 4 in101.60 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 4-7/8 in123.83 mm

N/A 1-5/16 in33.34 mm N/A 4-1/4 in107.95 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-1/8 in130.18 mm

N/A 1-5/16 in33.34 mm N/A 4-1/2 in114.30 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-3/8 in136.53 mm

N/A 1-5/16 in33.34 mm N/A 4-9/16 in115.89 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-7/16 in138.11 mm

N/A 1-5/16 in33.34 mm N/A 5 in127.00 mm N/A 8-32 N/A 5/16 in7.94 mm N/A 5-7/8 in149.23 mm

N/A 1-5/16 in33.34 mm N/A 2 in50.80 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 2-7/8 in73.03 mm

N/A 1-5/16 in33.34 mm N/A 2-1/4 in57.15 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 3-1/8 in79.38 mm

N/A 1-5/16 in33.34 mm N/A 2-1/2 in63.50 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 3-3/8 in85.73 mm

N/A 1-5/16 in33.34 mm N/A 3 in76.20 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 3-7/8 in98.43 mm

N/A 1-5/16 in33.34 mm N/A 3-1/2 in88.90 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 4-3/8 in111.13 mm

N/A 1-5/16 in33.34 mm N/A 4 in101.60 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 4-7/8 in123.83 mm

N/A 1-5/16 in33.34 mm N/A 4-1/4 in107.95 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-1/8 in130.18 mm

N/A 1-5/16 in33.34 mm N/A 4-1/2 in114.30 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-3/8 in136.53 mm

N/A 1-5/16 in33.34 mm N/A 4-9/16 in115.89 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-7/16 in138.11 mm

N/A 1-5/16 in33.34 mm N/A 5 in127.00 mm N/A 10-32 N/A 5/16 in7.94 mm N/A 5-7/8 in149.23 mm

1 - 100 of 200 | Results Per Page | View | Unit of Measure
1 2
