• Round External Thread Aluminum Pull Handles

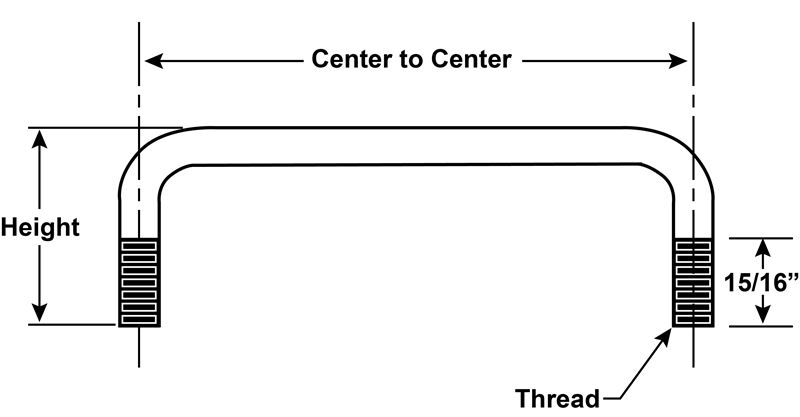

  • <!-Round External Thread Pull Handles Line Drawing->
JBF National's round-external thread pull handle is manufactured form the highest quality extruded aluminum, and with its stylish rounded design, this pull handle will accent any project of yours perfectly. Contact a JBF National sales engineer today for more information.
1 - 100 of 140 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Overall Height (H) (in)

Overall Height (H) (mm)

Center to Center (C to C) (in)

Center to Center (C to C) (mm)

Thread Size

Diameter (in)

Diameter (mm)

Item #

Overall Height (H)

Center to Center (C to C)

Thread Size

Diameter

Material

Drawings

N/A 1-7/16 in36.51 mm N/A 3 in76.20 mm N/A 5/16-18 N/A 0.3125 in7.94 mm N/A Aluminum

N/A 1-7/16 in36.51 mm N/A 3.75 in95.25 mm N/A 5/16-18 N/A 0.3125 in7.94 mm N/A Aluminum

N/A 1-7/16 in36.51 mm N/A 4 in101.60 mm N/A 5/16-18 N/A 0.3125 in7.94 mm N/A Aluminum

N/A 1-7/16 in36.51 mm N/A 4-1/4 in107.95 mm N/A 5/16-18 N/A 0.3125 in7.94 mm N/A Aluminum

N/A 1-7/16 in36.51 mm N/A 4-1/2 in114.30 mm N/A 5/16-18 N/A 0.3125 in7.94 mm N/A Aluminum

N/A 1-7/16 in36.51 mm N/A 4-9/16 in115.89 mm N/A 5/16-18 N/A 0.3125 in7.94 mm N/A Aluminum

N/A 1-7/16 in36.51 mm N/A 5 in127.00 mm N/A 5/16-18 N/A 0.3125 in7.94 mm N/A Aluminum

N/A 1-7/16 in36.51 mm N/A 6 in152.4 mm N/A 5/16-18 N/A 0.3125 in7.94 mm N/A Aluminum

N/A 1-7/16 in36.51 mm N/A 9 in228.6 mm N/A 5/16-18 N/A 0.3125 in7.94 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 3 in76.20 mm N/A 3/8-24 N/A 0.3750 in9.53 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 3.75 in95.25 mm N/A 3/8-24 N/A 0.3750 in9.53 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 4 in101.60 mm N/A 3/8-24 N/A 0.3750 in9.53 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 4-1/4 in107.95 mm N/A 3/8-24 N/A 0.3750 in9.53 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 4-1/2 in114.30 mm N/A 3/8-24 N/A 0.3750 in9.53 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 4-9/16 in115.89 mm N/A 3/8-24 N/A 0.3750 in9.53 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 5 in127.00 mm N/A 3/8-24 N/A 0.3750 in9.53 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 6 in152.4 mm N/A 3/8-24 N/A 0.3750 in9.53 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 9 in228.6 mm N/A 3/8-24 N/A 0.3750 in9.53 mm N/A Aluminum

N/A 1 in25.40 mm N/A 2 in50.80 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 2-1/2 in63.50 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 3 in76.20 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 3-1/2 in88.90 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 4 in101.60 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 5 in127.00 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 6 in152.4 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 2 in50.80 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 2-1/2 in63.50 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 3 in76.20 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 3-1/2 in88.90 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 4 in101.60 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 5 in127.00 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 6 in152.4 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 2 in50.80 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 2-1/2 in63.50 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 3 in76.20 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 3-1/2 in88.90 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 4 in101.60 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 5 in127.00 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 6 in152.4 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 2 in50.80 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 2-1/2 in63.50 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 3 in76.20 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 3-1/2 in88.90 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 4 in101.60 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 5 in127.00 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 6 in152.4 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 2 in50.80 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 2-1/2 in63.50 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 3 in76.20 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 3-1/2 in88.90 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 4 in101.60 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 5 in127.00 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 6 in152.4 mm N/A 4-40 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 2 in50.80 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 2-1/2 in63.50 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 3 in76.20 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 3-1/2 in88.90 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 4 in101.60 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 5 in127.00 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 2 in50.80 mm N/A 6 in152.4 mm N/A 6-32 N/A 0.1875 in4.76 mm N/A Aluminum

N/A 1 in25.40 mm N/A 2 in50.80 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 2-1/2 in63.50 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 3 in76.20 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 3-1/2 in88.90 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 4 in101.60 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 5 in127.00 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 6 in152.4 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 2 in50.80 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 2-1/2 in63.50 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 3 in76.20 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 3-1/2 in88.90 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 4 in101.60 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 5 in127.00 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1 in25.40 mm N/A 6 in152.4 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 2 in50.80 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 2-1/2 in63.50 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 3 in76.20 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 3-1/2 in88.90 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 4 in101.60 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 5 in127.00 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 6 in152.4 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 2 in50.80 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 2-1/2 in63.50 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 3 in76.20 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 3-1/2 in88.90 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 4 in101.60 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 5 in127.00 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 1-1/2 in38.10 mm N/A 6 in152.4 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 2 in50.80 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 2-1/2 in63.50 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 3 in76.20 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 3-1/2 in88.90 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 4 in101.60 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 5 in127.00 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 6 in152.4 mm N/A 8-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 2 in50.80 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 2-1/2 in63.50 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 3 in76.20 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 3-1/2 in88.90 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum

N/A 2 in50.80 mm N/A 4 in101.60 mm N/A 10-32 N/A 0.2500 in6.35 mm N/A Aluminum
