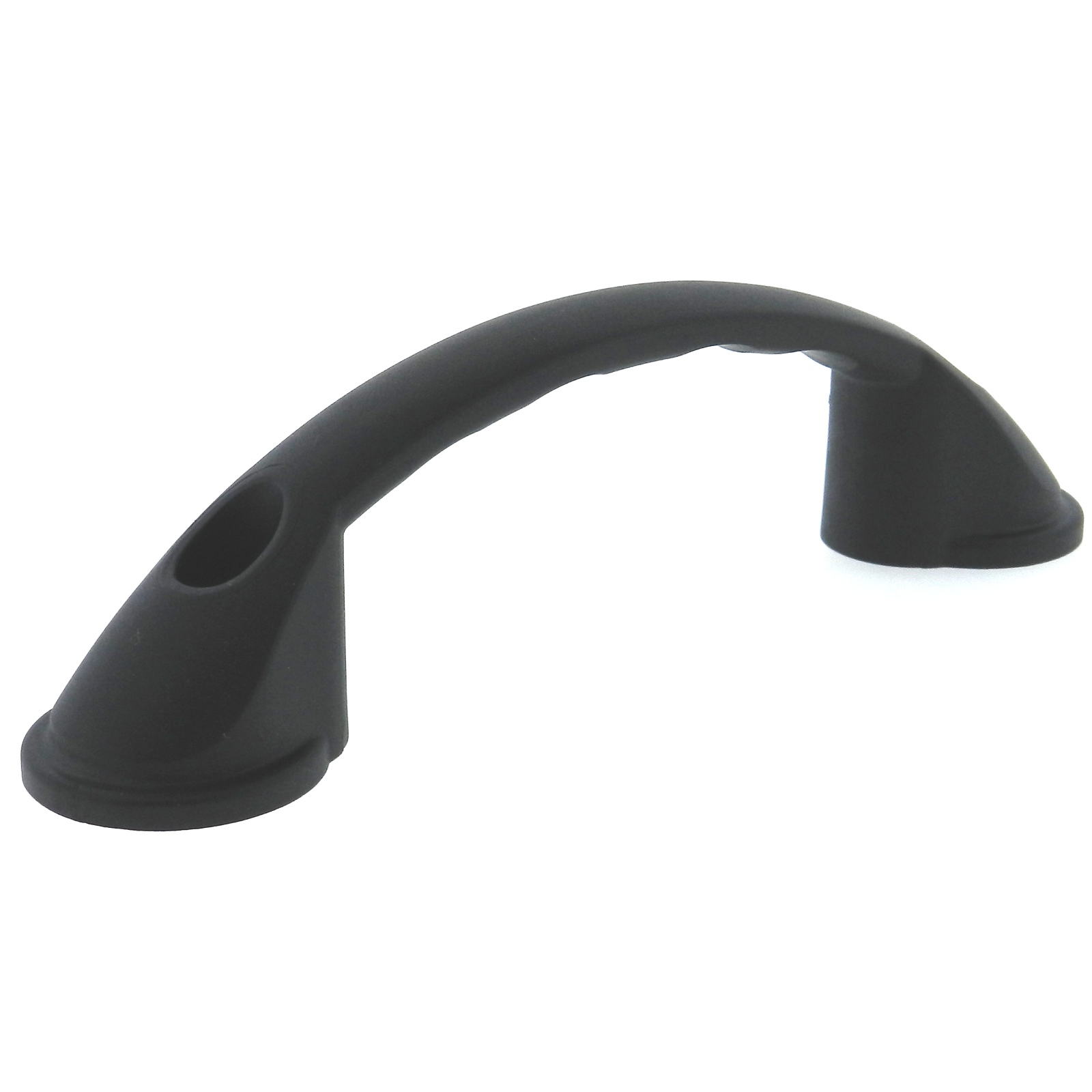

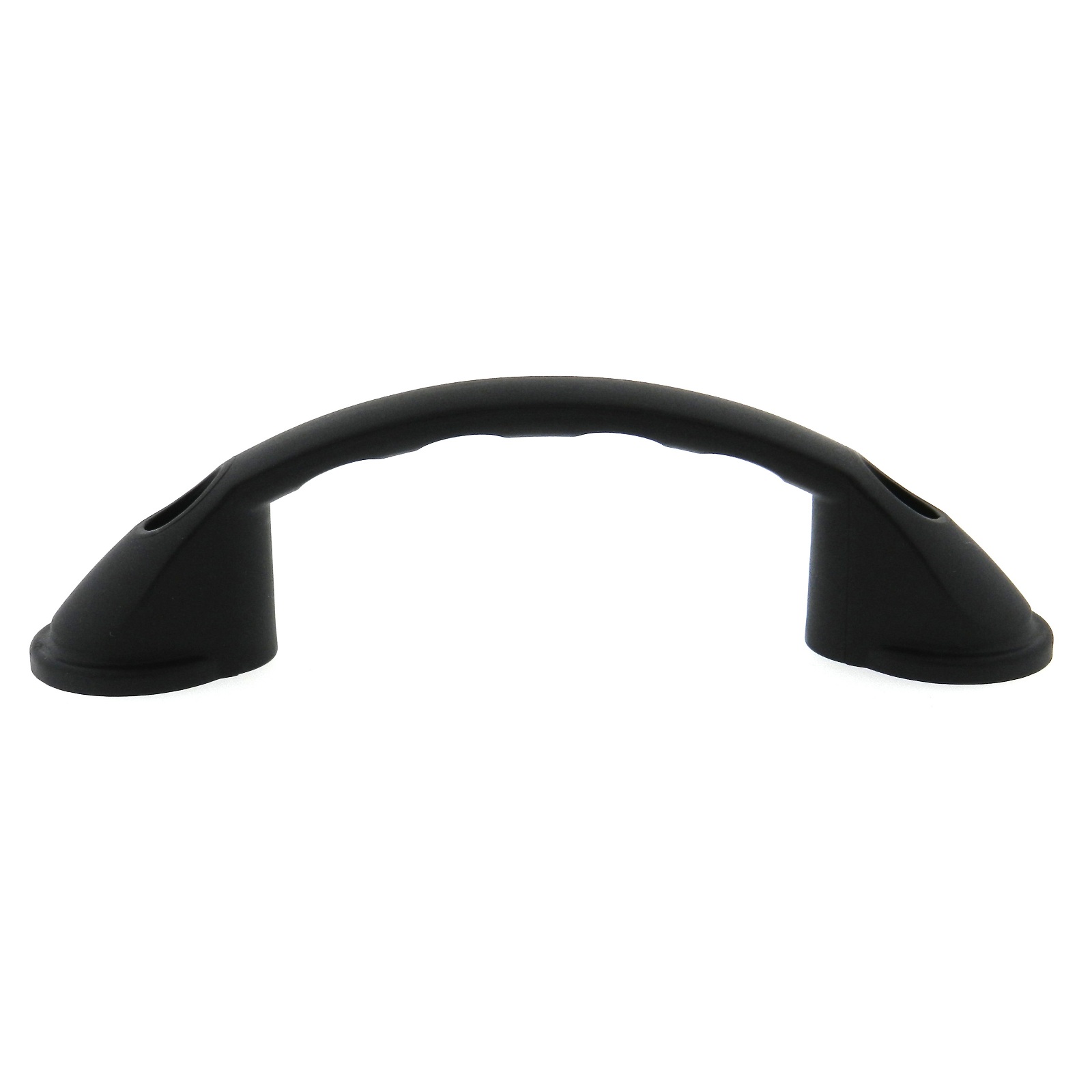

Top Mount Plastic Cabinet Pull Handles On JBF National

1 - 5 of 5 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

Item #	Dimension B	Dimension C	Dimension D	Mounting Hole d	Dimension E	Dimension H	Dimension L	Drawings

1ARCPH-1070	N/A 1.42 in	N/A 4.05 in	N/A 4.72 in	N/A 5/16 in	N/A 0.94 in	N/A 1.97 in	N/A 8.23 mm
1ARCPH-1071	N/A 1.50 in	N/A 4.49 in	N/A 5.51 in	N/A 5/16 in	N/A 0.98 in	N/A 2.09 in	N/A 9.05 mm
1ARCPH-1072	N/A 1.57 in	N/A 4.80 in	N/A 6.30 in	N/A 5/16 in	N/A 1.02 in	N/A 2.20 in	N/A 9.76 mm
1ARCPH-1073	N/A 1.26 in	N/A 3.03 in	N/A 3.94 in	N/A 1/4 in	N/A 0.67 in	N/A 1.57 in	N/A 5.79 mm
1ARCPH-1074	N/A 1.3 in	N/A 3.78 in	N/A 4.72 in	N/A 1/4 in	N/A 3/4 in	N/A 1.65 in	N/A 7.24 mm
