Top Mount Plastic Vari Grip Pull Handles
Pull Handles

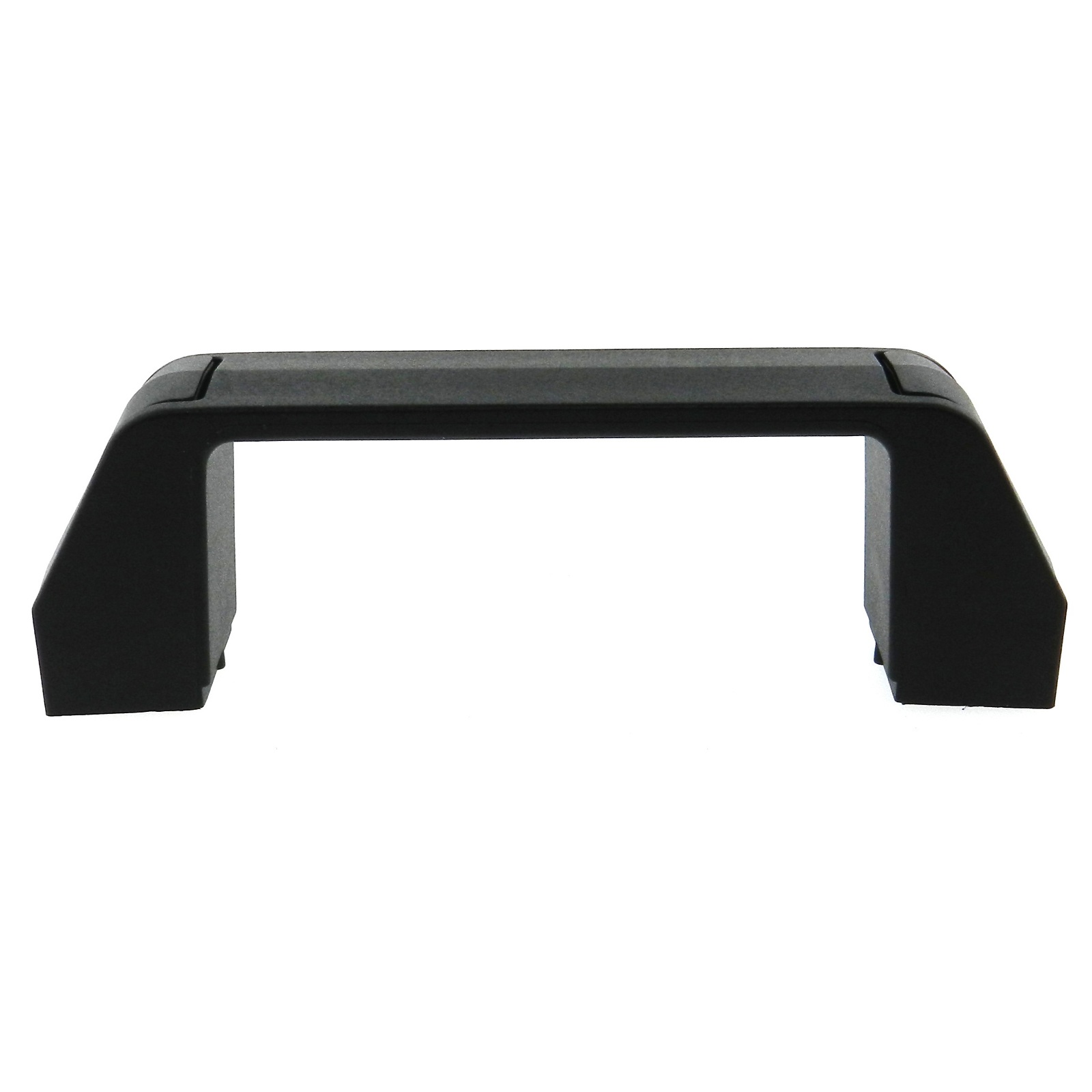

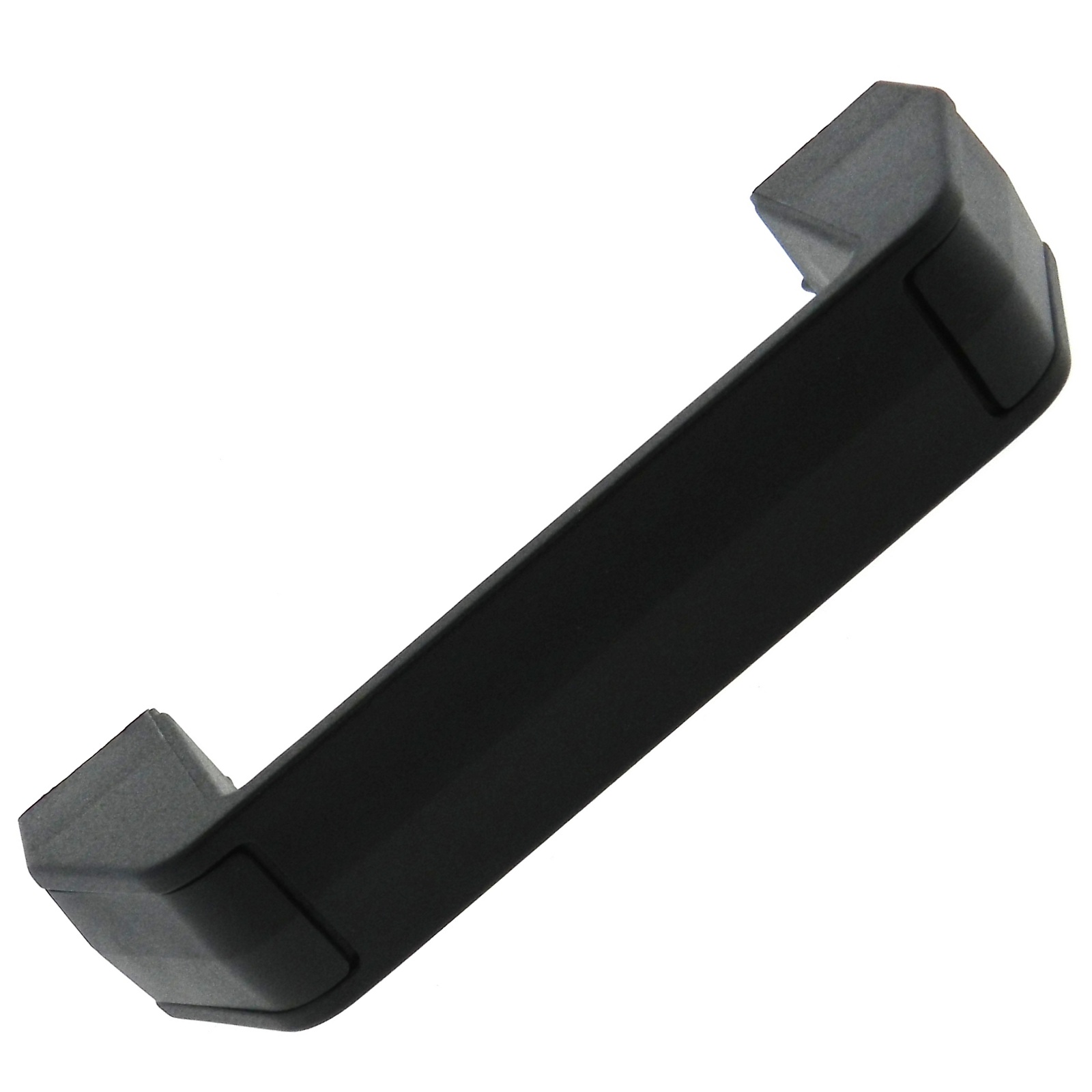

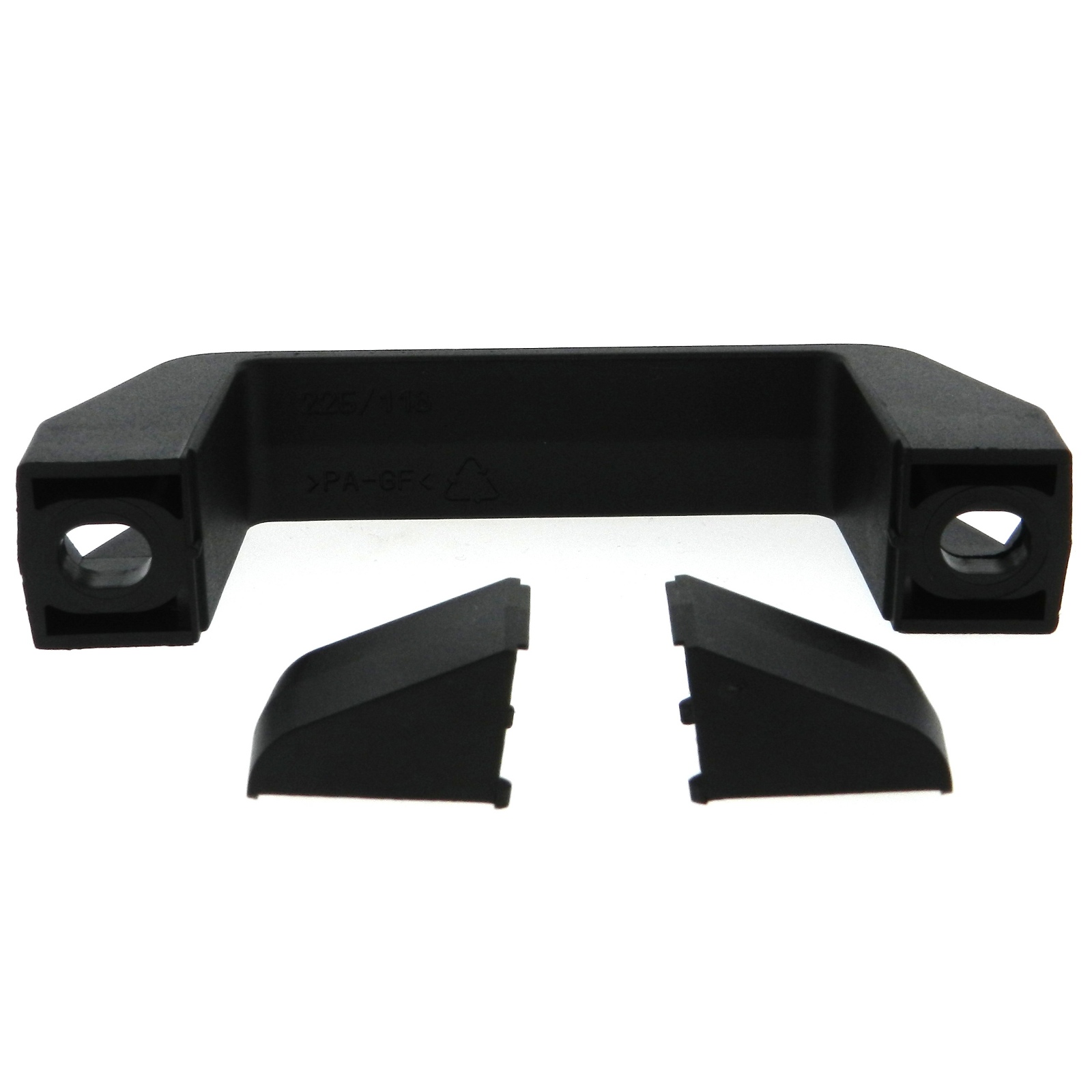

To take on the toughest applications, this top mount pull handle from JBF National comes manufactured of the highest quality thermoplastic and is reinforced with fiber glass. To give this pull handle a sleek finished look, mounting hole covers round off the sides and provide for greater operator comfort.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Mounting Hole d |
Drawings |
|---|---|---|---|---|---|---|
| 1PHVAR-1091 1PHVAR-1091/Asset/phenolic-bridge-handle.jpg | Dimension A N/A 72.5 mm | Dimension B N/A 90 to 94 mm | Dimension C N/A 110 mm | Dimension D N/A 36 mm | Mounting Hole d N/A 6.5 in |
Drawings
![]() |
| 1PHVAR-1092 1PHVAR-1092/Asset/phenolic-bridge-handle.jpg | Dimension A N/A 92.5 mm | Dimension B N/A 112 to 118 mm | Dimension C N/A 137 mm | Dimension D N/A 42 mm | Mounting Hole d N/A 8.5 in |
Drawings
![]() |
| 1PHVAR-1093 1PHVAR-1093/Asset/phenolic-bridge-handle.jpg | Dimension A N/A 106.5 mm | Dimension B N/A 126 to 132 mm | Dimension C N/A 151 mm | Dimension D N/A 42 mm | Mounting Hole d N/A 8.5 in |
Drawings
![]() |
