Steel Ring Handle Quick Release Pins On JBF National

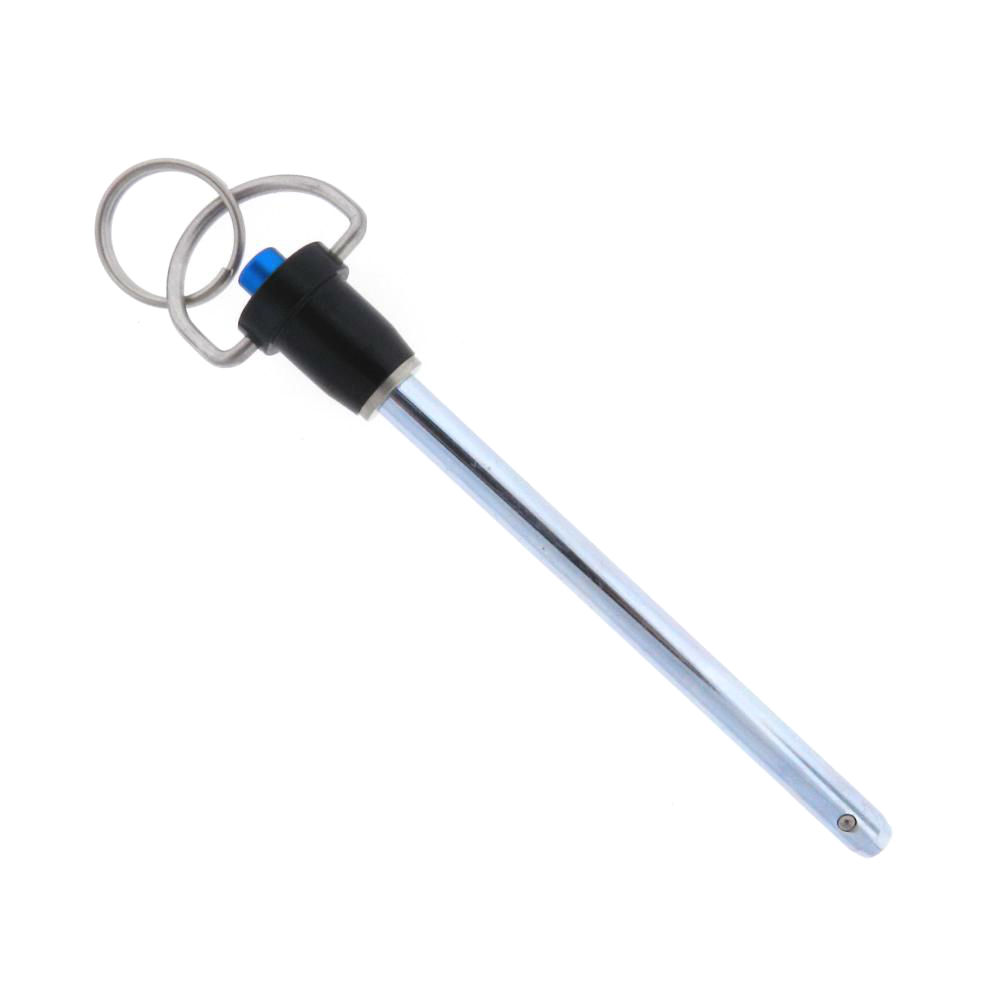

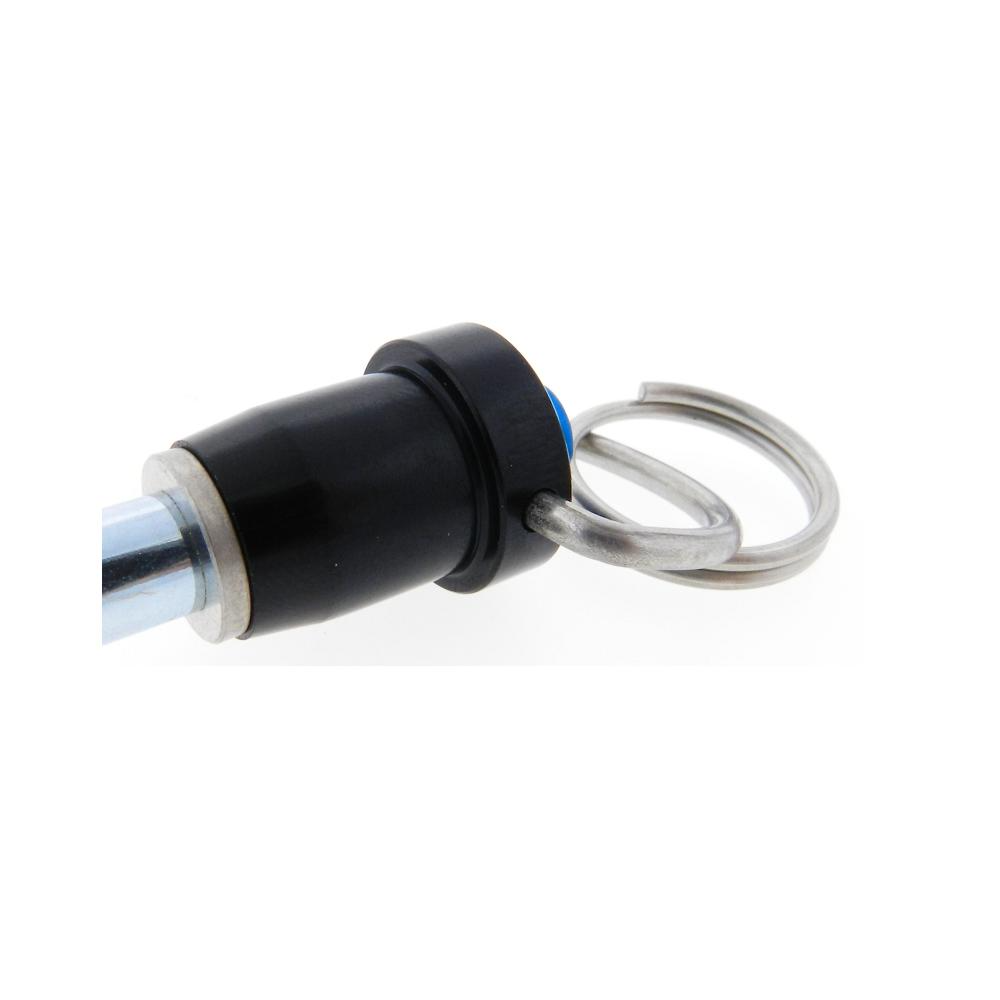

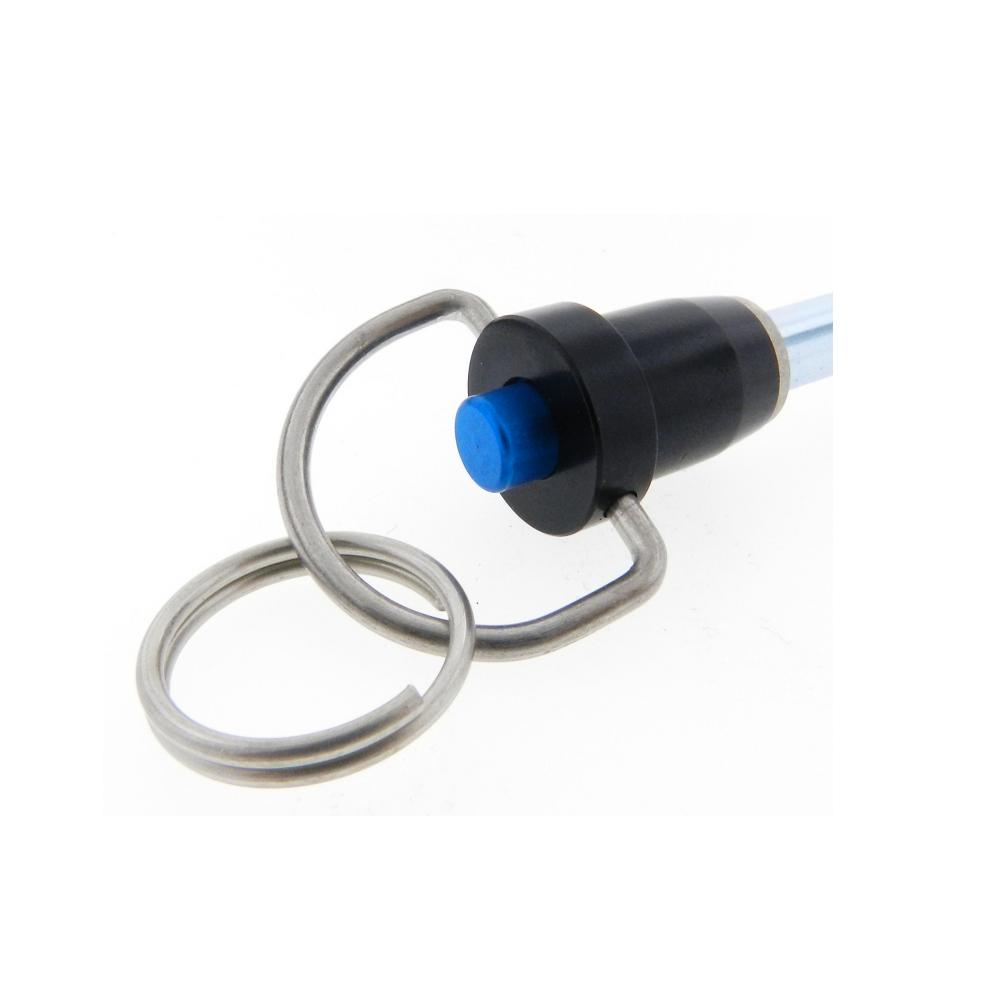

JBF National's ring handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately.

1 - 53 of 53 | Results Per Page | View | Unit of Measure

Request Information Compare Items Search by Specification

Clear Filter

Pin Diameter (A) (in)

Grip Length (in)

Ball Grip Diameter (B) (in)

Lead Length (C) (in)

Button Diameter (D) (in)

Item #	Pin Diameter (A)	Grip Length	Lead Length (C)	Button Diameter (D)

1QLRP-1191	N/A 0.1875 in	N/A 0.5 in	N/A 0.26 in	N/A 0.25 in
1QLRP-1192	N/A 0.1875 in	N/A 0.75 in	N/A 0.26 in	N/A 0.25 in
1QLRP-1193	N/A 0.1875 in	N/A 1 in	N/A 0.26 in	N/A 0.25 in
1QLRP-1194	N/A 0.1875 in	N/A 1.25 in	N/A 0.26 in	N/A 0.25 in
1QLRP-1195	N/A 0.1875 in	N/A 1.5 in	N/A 0.26 in	N/A 0.25 in
1QLRP-1196	N/A 0.1875 in	N/A 2 in	N/A 0.26 in	N/A 0.25 in
1QLRP-1197	N/A 0.1875 in	N/A 2.5 in	N/A 0.26 in	N/A 0.25 in
1QLRP-1198	N/A 0.1875 in	N/A 3 in	N/A 0.26 in	N/A 0.25 in
1QLRP-1199	N/A 0.1875 in	N/A 3.5 in	N/A 0.26 in	N/A 0.25 in
1QLRP-1200	N/A 0.1875 in	N/A 4 in	N/A 0.26 in	N/A 0.25 in
2QLRP-1201	N/A 0.25 in	N/A 0.5 in	N/A 0.29 in	N/A 0.25 in
2QLRP-1202	N/A 0.25 in	N/A 0.75 in	N/A 0.29 in	N/A 0.25 in
2QLRP-1203	N/A 0.25 in	N/A 1 in	N/A 0.29 in	N/A 0.25 in
2QLRP-1204	N/A 0.25 in	N/A 1.25 in	N/A 0.29 in	N/A 0.25 in
2QLRP-1205	N/A 0.25 in	N/A 1.5 in	N/A 0.29 in	N/A 0.25 in
2QLRP-1206	N/A 0.25 in	N/A 2 in	N/A 0.29 in	N/A 0.25 in
2QLRP-1207	N/A 0.25 in	N/A 2.5 in	N/A 0.29 in	N/A 0.25 in
2QLRP-1208	N/A 0.25 in	N/A 3 in	N/A 0.29 in	N/A 0.25 in
2QLRP-1209	N/A 0.25 in	N/A 3.5 in	N/A 0.29 in	N/A 0.25 in
2QLRP-1210	N/A 0.25 in	N/A 4 in	N/A 0.29 in	N/A 0.25 in
3QLRP-1211	N/A 0.3125 in	N/A 0.5 in	N/A 0.33 in	N/A 0.25 in
3QLRP-1212	N/A 0.3125 in	N/A 0.75 in	N/A 0.33 in	N/A 0.25 in
3QLRP-1213	N/A 0.3125 in	N/A 1 in	N/A 0.33 in	N/A 0.25 in
3QLRP-1214	N/A 0.3125 in	N/A 1.25 in	N/A 0.33 in	N/A 0.25 in
3QLRP-1215	N/A 0.3125 in	N/A 1.5 in	N/A 0.33 in	N/A 0.25 in
3QLRP-1216	N/A 0.3125 in	N/A 2 in	N/A 0.33 in	N/A 0.25 in
3QLRP-1217	N/A 0.3125 in	N/A 2.5 in	N/A 0.33 in	N/A 0.25 in
3QLRP-1218	N/A 0.3125 in	N/A 3 in	N/A 0.33 in	N/A 0.25 in
3QLRP-1219	N/A 0.3125 in	N/A 3.5 in	N/A 0.33 in	N/A 0.25 in
3QLRP-1220	N/A 0.3125 in	N/A 4 in	N/A 0.33 in	N/A 0.25 in
4QLRP-1221	N/A 0.375 in	N/A 0.5 in	N/A 0.36 in	N/A 0.30 in
4QLRP-1222	N/A 0.375 in	N/A 0.75 in	N/A 0.36 in	N/A 0.30 in
4QLRP-1223	N/A 0.375 in	N/A 1 in	N/A 0.36 in	N/A 0.30 in
4QLRP-1224	N/A 0.375 in	N/A 1.25 in	N/A 0.36 in	N/A 0.30 in
4QLRP-1225	N/A 0.375 in	N/A 1.5 in	N/A 0.36 in	N/A 0.30 in
4QLRP-1226	N/A 0.375 in	N/A 1.75 in	N/A 0.36 in	N/A 0.30 in
4QLRP-1227	N/A 0.375 in	N/A 2 in	N/A 0.36 in	N/A 0.30 in
4QLRP-1228	N/A 0.375 in	N/A 2.5 in	N/A 0.36 in	N/A 0.30 in
4QLRP-1229	N/A 0.375 in	N/A 3 in	N/A 0.36 in	N/A 0.30 in
4QLRP-1230	N/A 0.375 in	N/A 3.5 in	N/A 0.36 in	N/A 0.30 in
4QLRP-1231	N/A 0.375 in	N/A 4 in	N/A 0.36 in	N/A 0.30 in
5QLRP-1232	N/A 0.5 in	N/A 1 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1233	N/A 0.5 in	N/A 1.25 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1234	N/A 0.5 in	N/A 1.5 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1235	N/A 0.5 in	N/A 1.75 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1236	N/A 0.5 in	N/A 2 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1237	N/A 0.5 in	N/A 2.5 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1238	N/A 0.5 in	N/A 3 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1239	N/A 0.5 in	N/A 3.5 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1240	N/A 0.5 in	N/A 4 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1241	N/A 0.5 in	N/A 4.5 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1242	N/A 0.5 in	N/A 5 in	N/A 0.46 in	N/A 0.39 in
5QLRP-1243	N/A 0.5 in	N/A 6 in	N/A 0.46 in	N/A 0.39 in

1 - 53 of 53 | Results Per Page | View | Unit of Measure

Catalog

Pin Diameter (A) (in)

Grip Length (in)

Ball Grip Diameter (B) (in)

Lead Length (C) (in)

Button Diameter (D) (in)

Item #

Pin Diameter (A)

Grip Length

Lead Length (C)

Button Diameter (D)

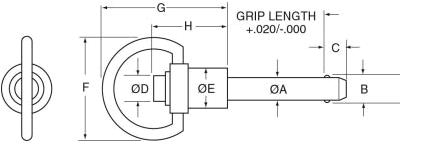

Drawings
