Acetal Locking Nose Retractable Plungers On JBF National

Acetal Locking Nose Retractable Plungers without Nylon Patch

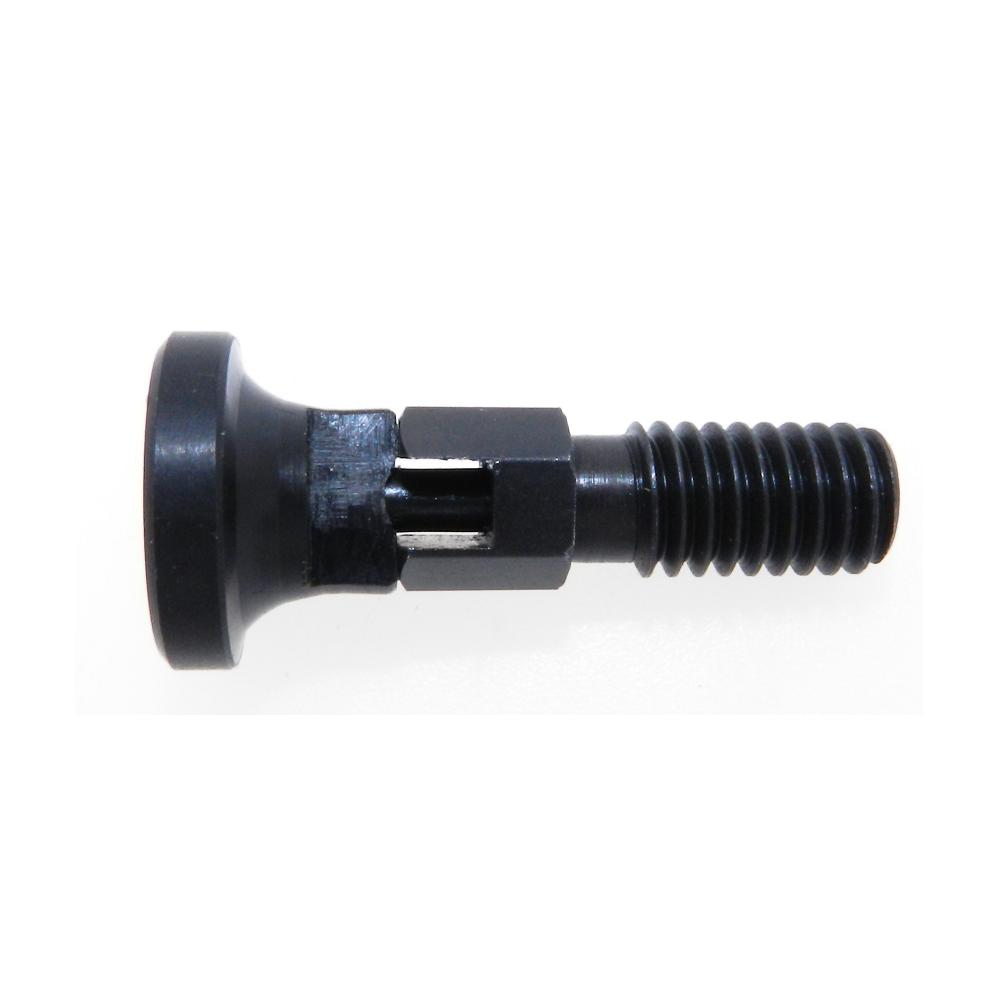

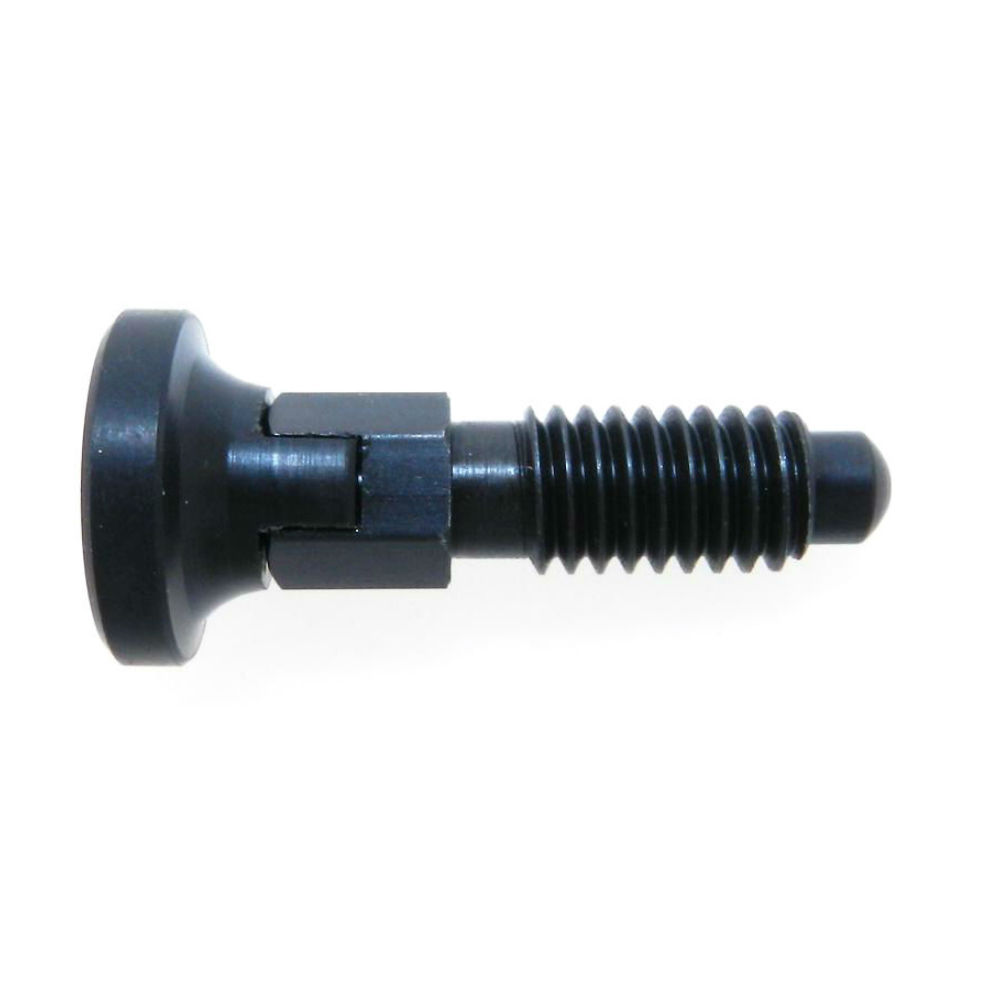

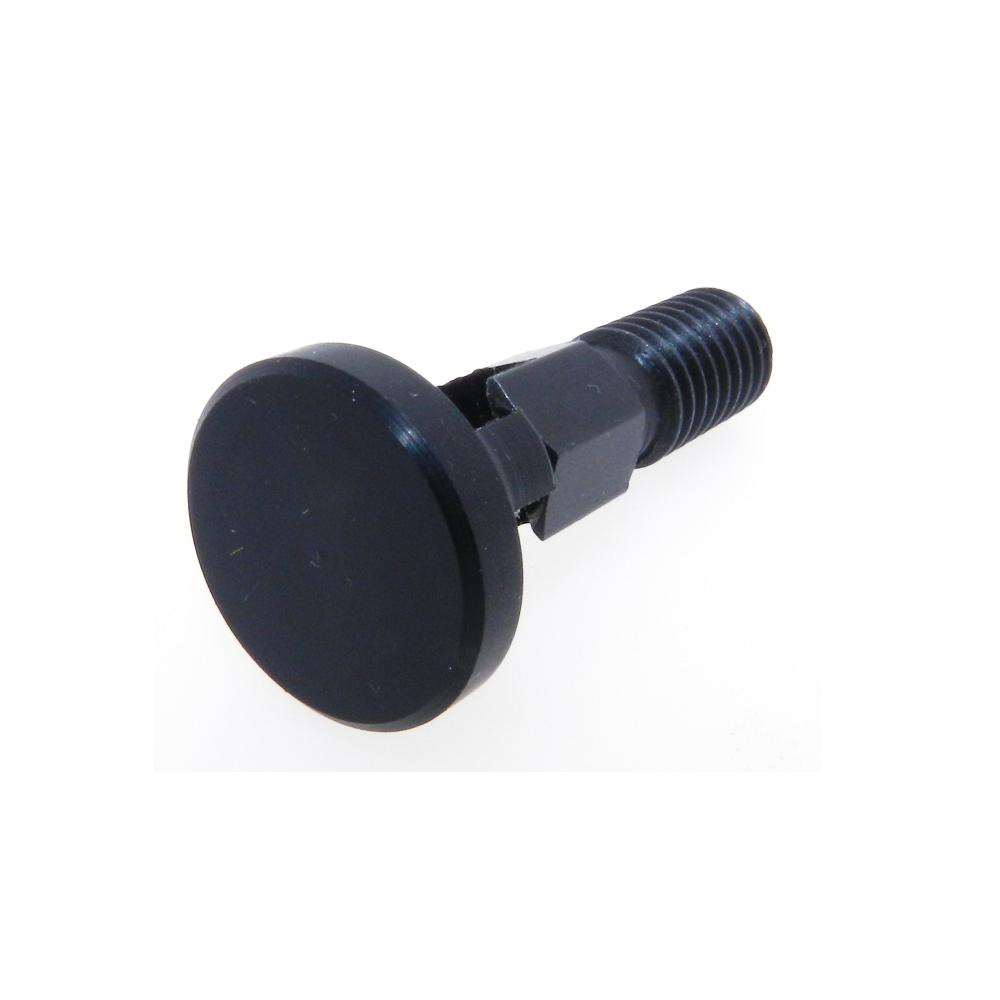

This retractable locking nose plunger from JBF National features a radiused Acetal nose for maximum hole engagement, and the highest quality zinc plated 12L15 steel or 303 stainless steel. A simple 90 degree twist engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist. This retractable plunger (also known as an indexing plunger) has been designed and tested to withstand side loading.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Thread Size (A)	Thread Length (C)	Body Length (B)	Nose Length (D)	Nose Diameter (E)

1LDN-1003	N/A 1/4-20	N/A 0.63 in	N/A 0.97 in	N/A 0.13 in	N/A 0.16 in
1LDN-1004	N/A 3/8-16	N/A 0.75 in	N/A 1.40 in	N/A 0.18 in	N/A 0.25 in
1LDN-1005	N/A 1/2-13	N/A 1.00 in	N/A 1.90 in	N/A 0.25 in	N/A 0.31 in
1LDN-1003SS	N/A 1/4-20	N/A 0.63 in	N/A 0.97 in	N/A 0.13 in	N/A 0.16 in
1LDN-1004SS	N/A 3/8-16	N/A 0.75 in	N/A 1.40 in	N/A 0.18 in	N/A 0.25 in
1LDN-1005SS	N/A 1/2-13	N/A 1.00 in	N/A 1.90 in	N/A 0.25 in	N/A 0.31 in

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Catalog

Item #

Thread Size (A)

Thread Length (C)

Body Length (B)

Nose Length (D)

Nose Diameter (E)

Drawings
